4.1 Equipment Setup
4.1.1 Setting up as a Post-Processing Base
Use The equipment setup described is used for static operations over markers.
Description The instrument can be programmed with the CS field controller before use which can
then be omitted from the setup.

• The antenna is mounted directly using screw fitting. If using stub and adapter,
procedures can vary slightly.
• When using the adapter and carrier, ensure that the antenna and the adapter
assembly slide down the full length of the carrier stub. An incorrectly mounted
antenna will have a direct effect on the results.

If the instrument is left in the container during use in high temperatures, the lid should
be left open. Refer to the User Manual for operating and storage temperatures.

Use an external battery such as GEB371 to ensure operation for a full day.

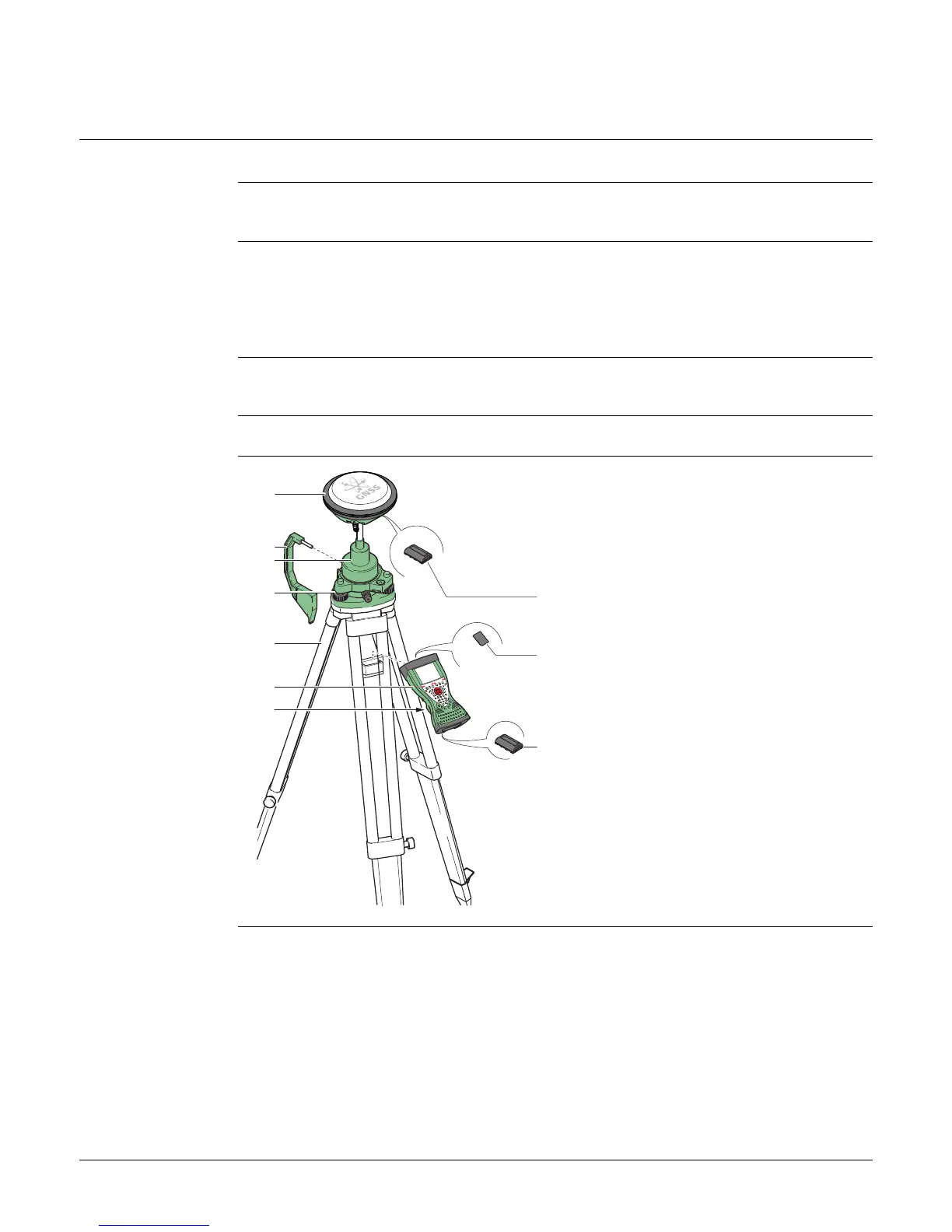

Equipment setup -
GS08plus/GS12/
GS14
a) GS08plus/GS12/GS14 instrument
b) Height hook
c) GRT146 carrier
d) Tribrach
e) Tripod
f) CS field controller
g) GHT61 hand strap
h) GEB211/GEB212 battery
i) SD card
0012598_001
a
b
c
d
e
f
g
h
h
i
