LED Indicators on GR/GM10

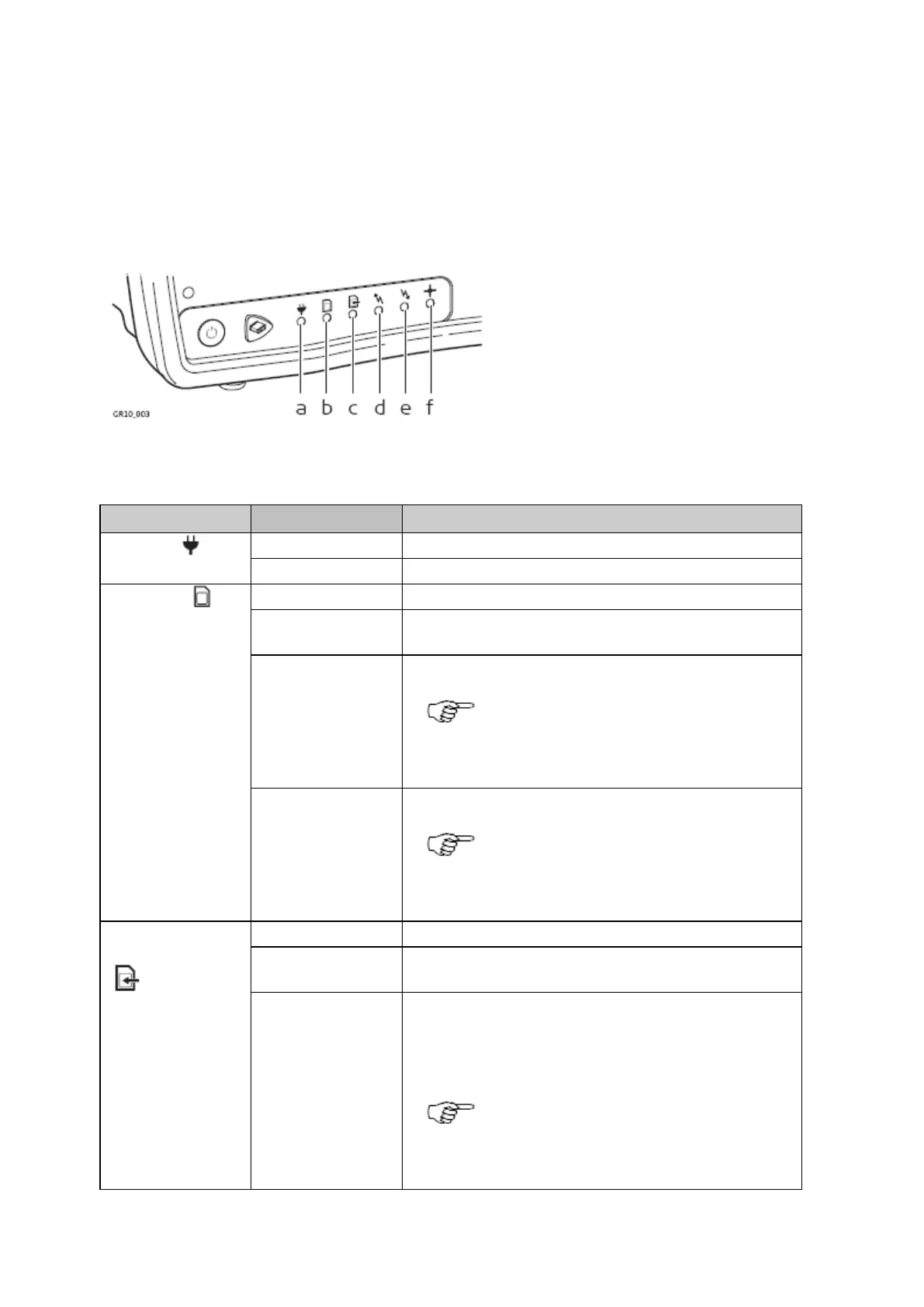

The GR/GM10 has Light Emitting Diode indicators. They indicate the basic instrument status.
a. Power LED
b. SD card LED
c. Raw data logging LED
d. RT out data stream LED
e. RT in data stream LED
f. Position LED
Description of the LED's
IF the
is
THEN
Power LED
off
The instrument is turned off.
green
The instrument is turned on.
SD card LED
off
No SD card inserted or power is off.
green
SD card is inserted. The free space on the SD card is greater than
20%.
yellow
The free space on the SD card is below 20%.
Recommended user action: Activate the Smart
clean-up or the automatic file delete for each
logging session.
red
SD card is full. Data logging has stopped.
Recommended user action: Immediately
activate the Smart clean-up or the automatic file
delete for each logging session.
Raw data
logging LED
off
No active logging sessions or power is off.
green
Active logging sessions are configured on the instrument and data is
being logged.
yellow
Active logging sessions are configured but Smart clean-up is
deleting data from all or some of the configured logging sessions.
OR
Active logging sessions are configured but no position is available.
Recommended user action: Check the
remaining space on the SD card and delete old
data if necessary. Check the tracking and
position status.
