Leica RM2255
6.1.3 Fine-directional fixture for specimen
clamps
• Before the fine-directional fixture for speci-
men clamps can be mounted, loosen 4 screws
(10) (Allen key No. 3) and carefully remove the
fixture for specimen clamps from the base-
plate (9).
10
11
• Using the 4 supplied screws (11) and the Allen
key No. 3, fasten the baseplate to the specimen
head (12).
11
• Now, screw the fine-directional fixture for
specimen clamps with the 4 screws (10) and
the Allen key No. 3 onto the specimen head.
9
12
6. Optional Accessories

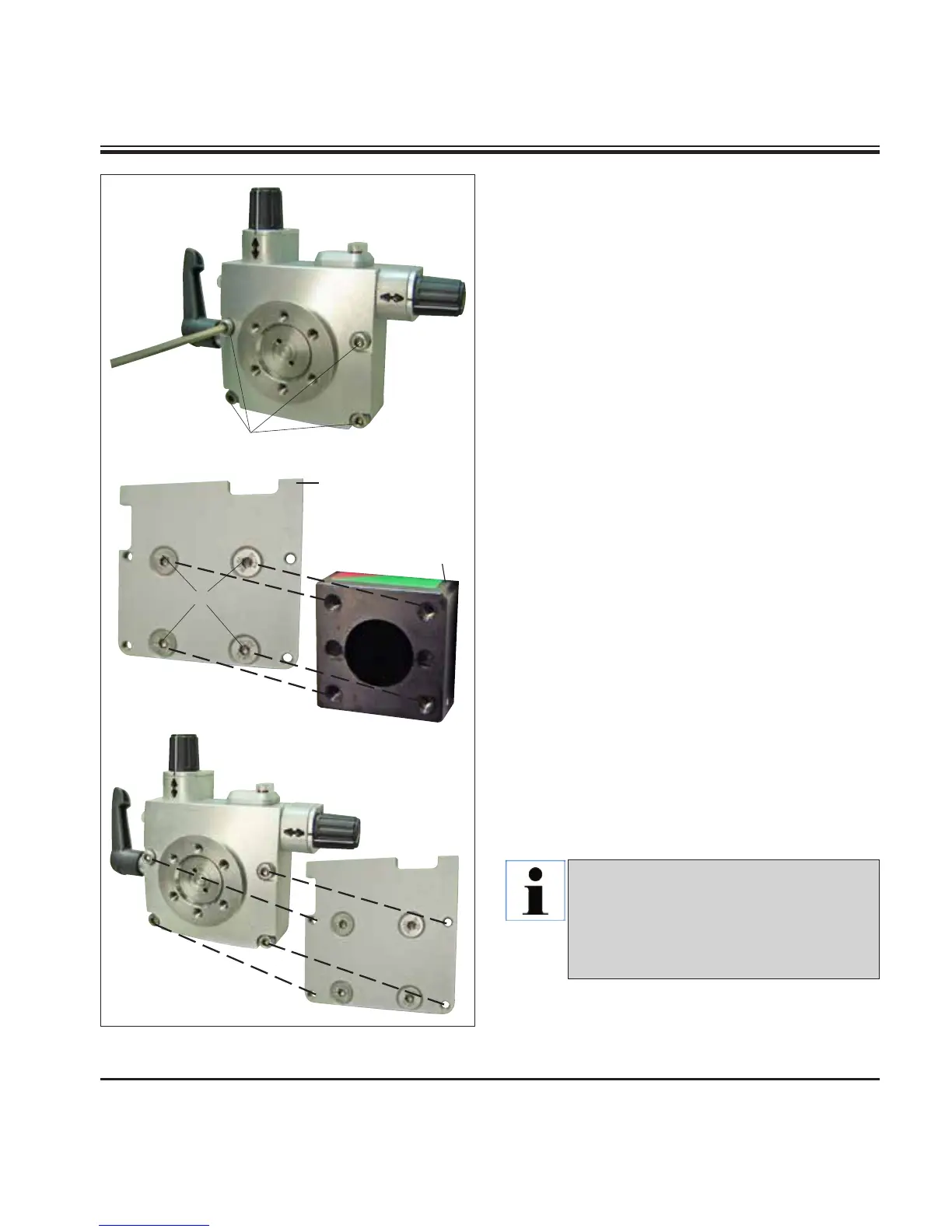

Fig. 31
If the fine-directional fixture for speci-
men clamps is not used, retain the base-
plate and 4 screws (11) together with
the fine-directional fixture for specimen
clamps!
