Instructions for Use, V 2.2 RevI – 09/2016
6.2.2 Vee insert

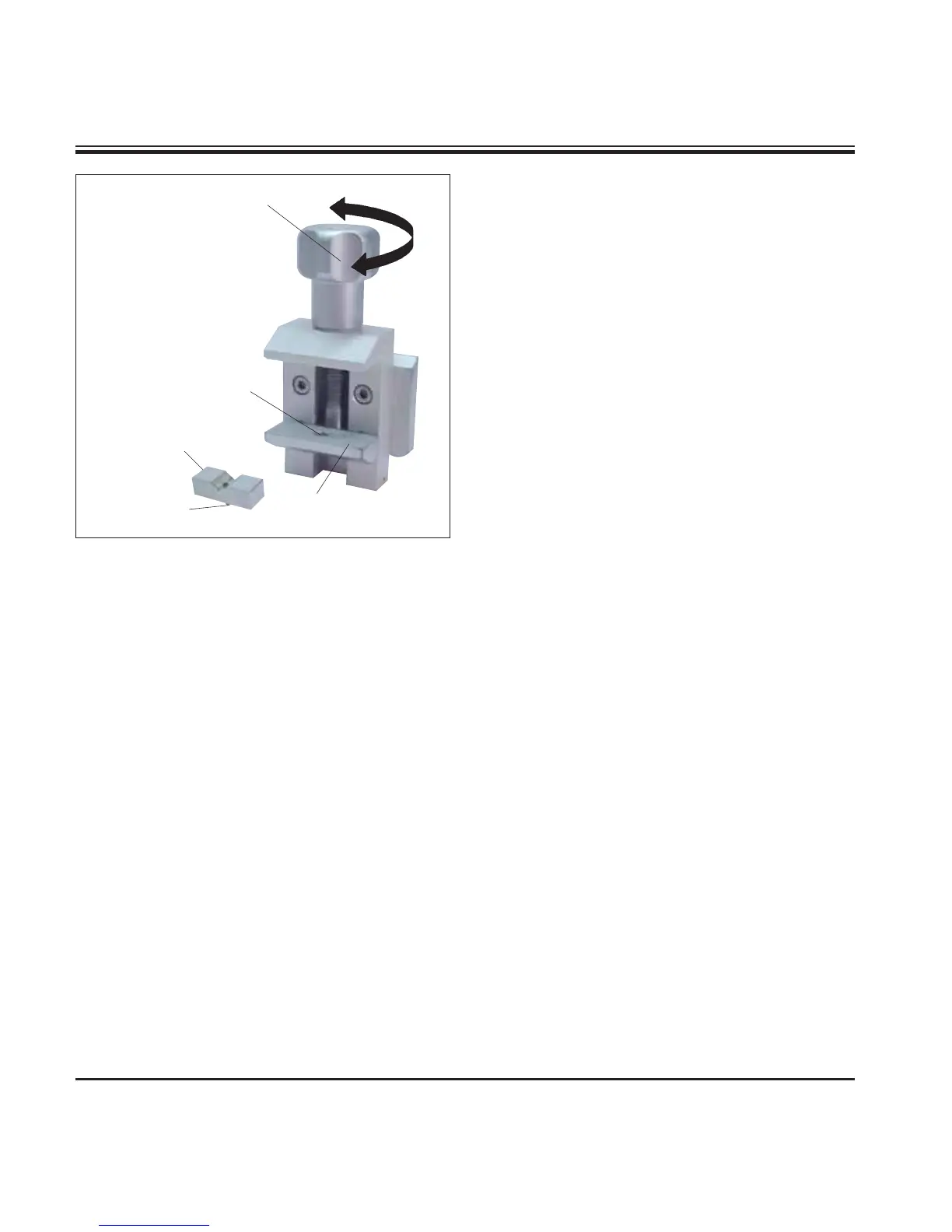

The vee insert (70) is mounted in the hole pro-
vided in the lower movable jaw of the standard
specimen clamp.
This makes it possible to clamp round specimens
in the standard specimen clamp.
• Turn the knurled screw (66) counterclockwise
to move the movable jaw (68) downward.
• Insert the pin (70.1) of the vee insert (70) in the
hole (69) of the lower jaw (68).
• Mount the specimen as required.
• Turn the knurled screw (66) clockwise to move
the movable jaw with the vee insert upward
against the fixed jaw to securely clamp the
sample.
70
66
69
70.1
68
6. Optional Accessories
Fig. 34
