Leica RM2255 - Universal microscope carrier

61
Leica RM2255
6. Optional Accessories

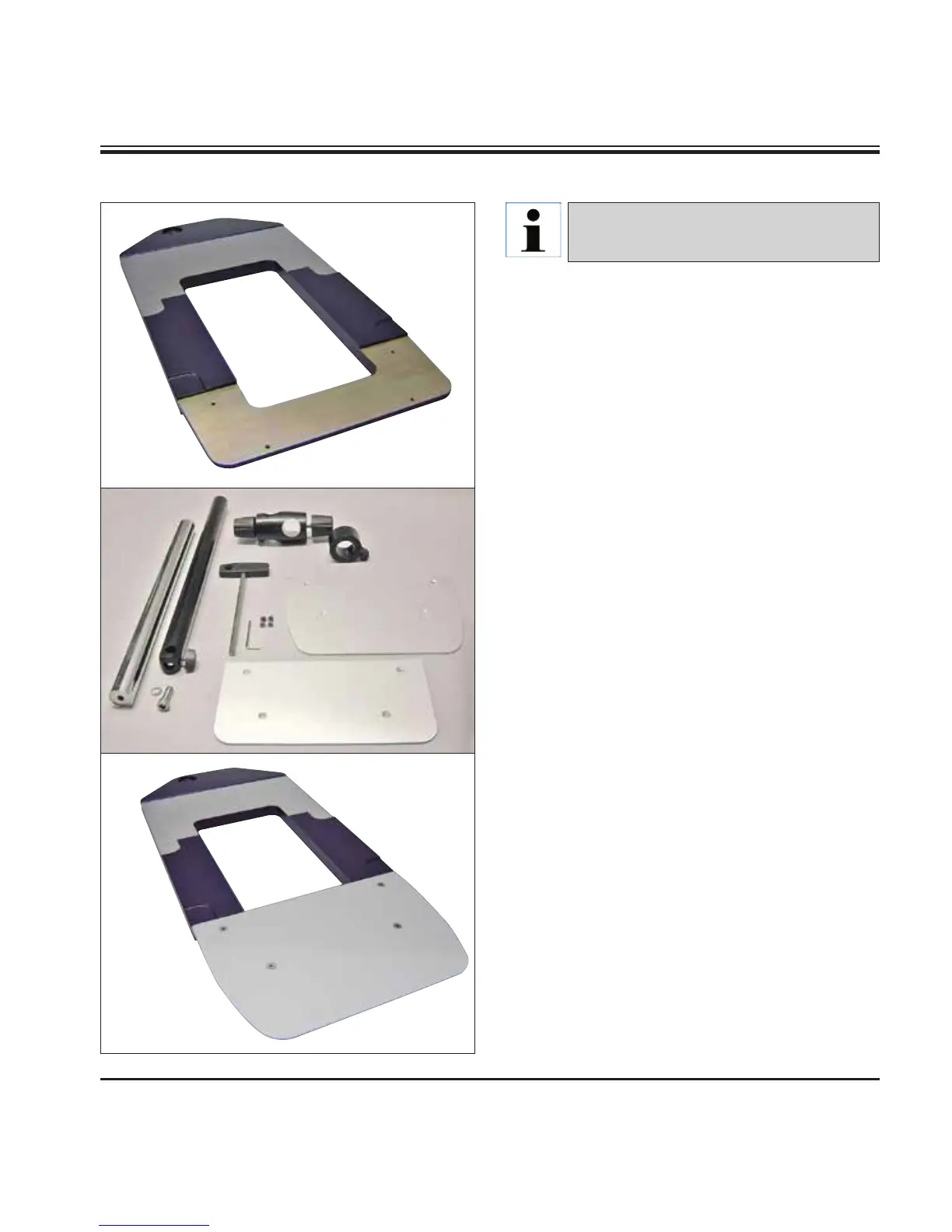

6.9 Universal microscope carrier
1 - Baseplate with drilling (a)
2 - Vertical column with size 8 cheese head screw
(b) and lock washer (c)
3 - Horizontal arm with cross-member (d) and
support ring (e)
4 - Support plate, large (for RM2235, RM2245 and
RM2255)
5 - Support plate, small (for RM2265)
6 - Allen key, size 3
7 - 4 countersunk screws to install support plate
8 - Allen key, size 8
Assembling the universal microscope carrier
1. Attach baseplate
• Select the large (5) or small (4) support plate,
depending on the microtome to be used.
• Attach the support plate to the baseplate with
the included 4 countersunk screws (7) using
the Allen key No. 3 (6).
1
b
c
2
3
e
d
4
5
6
7
8
a
Fig. 58
Fig. 60
Fig. 59
Unpack all accessories in the package
and check for completeness.
