6. Optional Accessories
6.1.4 Quick clamping system
It is used as specimen holder for use with the
fine-directional fixture for specimen clamps with
zero point indicators or the directional fixture for
specimen clamps.

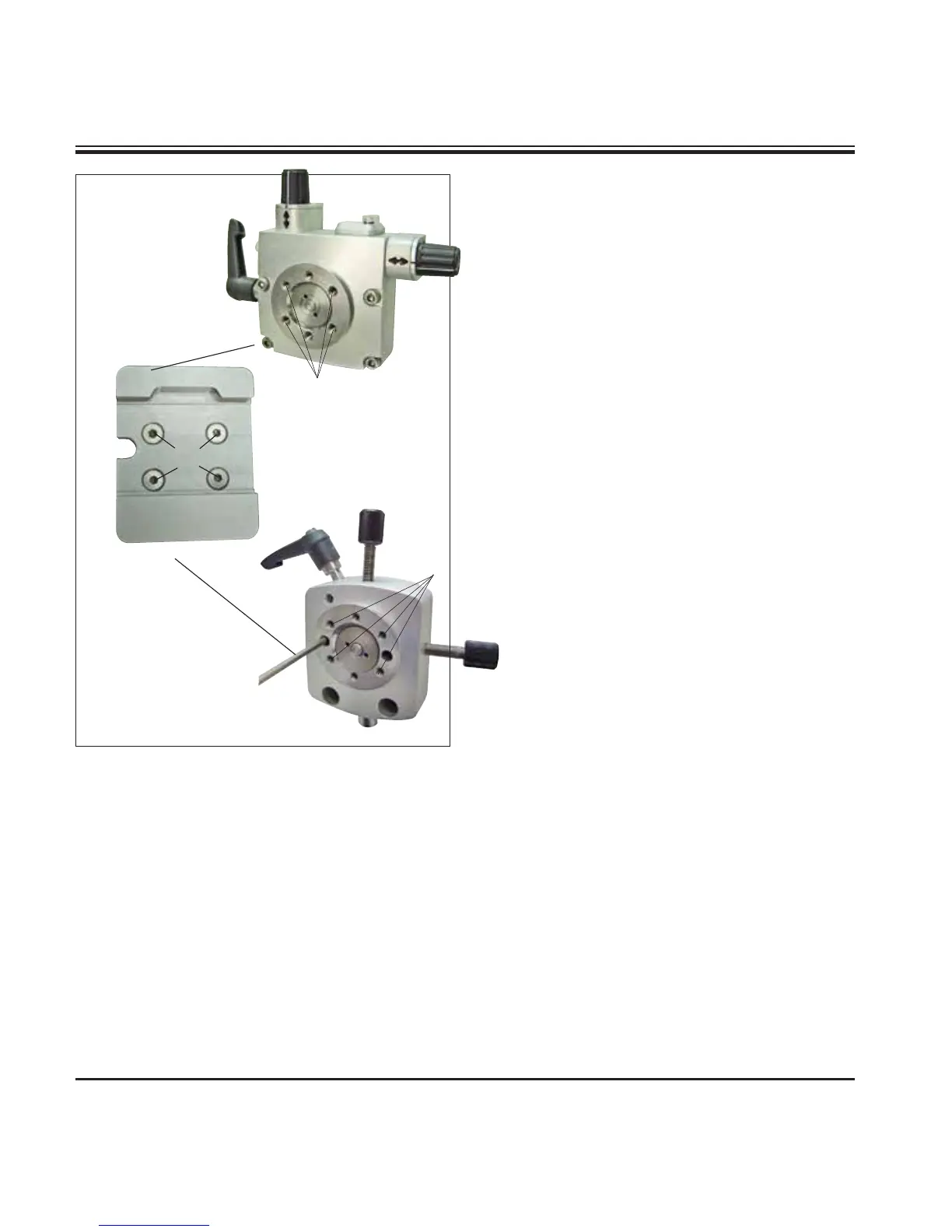

• Screw the 4 screws (13) into bore A with an
Allen key size 2.5 and tighten them.
13
A
A
Fig. 32
