Leica RTC360 - Key Instrument Components

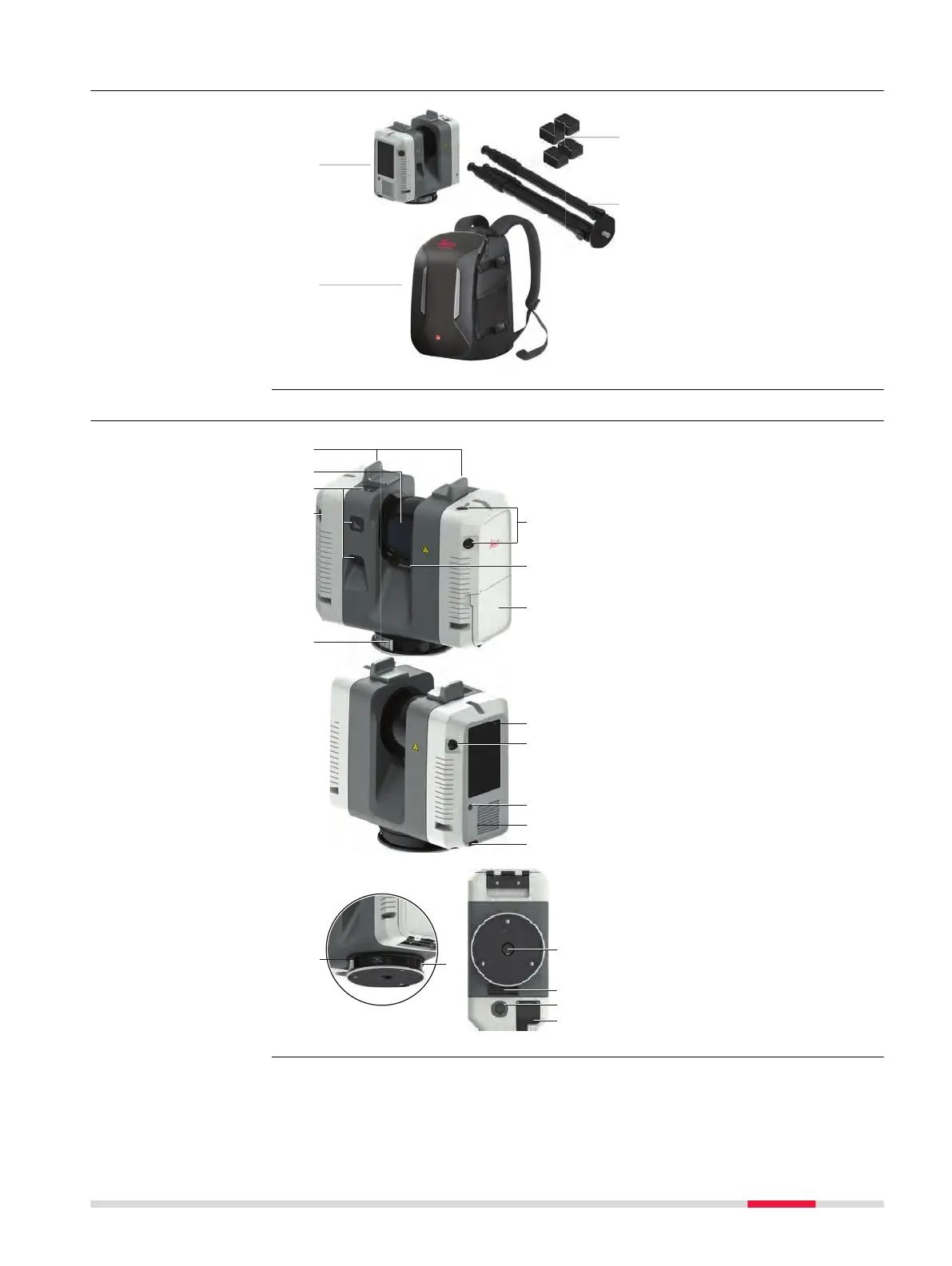

2.3 Backpack Contents
0016153_001
d
c
b
a
a RTC360/RTC360 LT
laser scanner
b
RTC360 backpack
c GEB361 Lithium-Ion
batteries
d Lightweight tripod
2.4 Instrument Components
0016143_001
a
b
f
e
c
d
d
g
h
n
i
d
j
l
m
k
o
p
k
a Antennas
b
Rotating mirror/laser aperture
c HDR cameras
d Cameras for visual inertial sys-
tem (RTC360 only)
e Quick release
f LED indicator
g Battery compartment
h Touch screen
i On/Off button
j Ventilation slots
k USB slot
l Socket for power supply, 5 pin
female
m Ethernet socket, 8 pin female
n Quick release mount
o Ventilation slots
p Loudspeaker
Backpack contents
Instrument
components
