Leica RTC360 User Manual

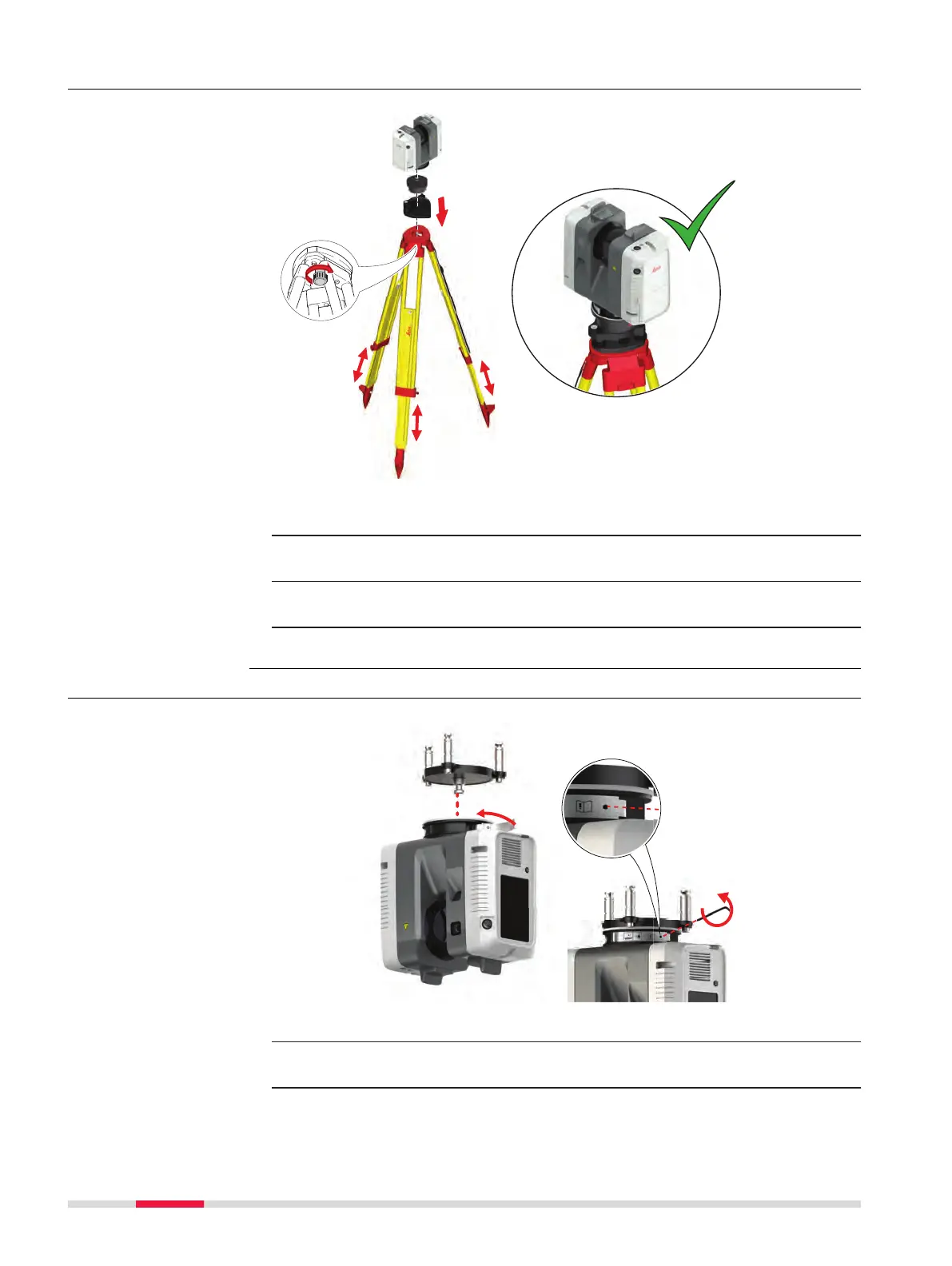

4.1.3 Heavy Duty Tripod Setup
16155_002
4
3
2
2
1
1
1
1. Extend the tripod legs to allow for a comfortable working posture.
Ensure that the tripod plate is roughly horizontal.
2. Place the tribrach on the tripod and secure it with the central xing
screw.
3. Place the tribrach adapter on the tribrach and secure it with the
locking knob of the tribrach.
4. Place the instrument on the quick release mount and secure it.
4.1.4 Upside-down Mounting
0018888_001
00
1
8888 001
1
2
3
1
1
2
1. Tightly mount the GAD121 adaptor plate to the supporting surface.
2. Place the instrument onto the GAD121 adaptor plate and secure it
by closing the locking lever.
Instrument setup
step-by-step
Instrument setup
step-by-step
26 Operation

Leica RTC360 Specifications

General

Scan Rate	up to 2 million points per second
HDR Imaging	yes
Field of View	360° x 300°
Type	3D Laser Scanner
Automatic Targetless Field Registration	yes
Protection Class	IP54
Measurement Range	0.5 – 130 m
Laser Class	Class 1
Laser Wavelength	1550 nm
Scan Time	less than 2 minutes
Camera	Integrated HDR camera
Weight	5.35 kg (11.8 lbs)
