Traverse TPS1200+/TS30/TM30 241
Close traverse on
internal reference
This option is used for determining the closure of a closed loop traverse, consisting
of a single control point with an arbitrary backsight azimuth. This allows completion
of a traverse without having to reoccupy the initial station setup to measure a closing
angle. The positional closure is calculated by comparing the control position of the
initial station setup to the measured position of the final foresight. The angular
closure is calculated by comparing the set azimuth of the initial backsight to the
azimuth of the final measured leg.
16. CONT (F1) to access TRAVERSE Backsight, Set:X/X.
17. ALL (F1) to measure all sets.
18. TRAVERSE Point Results
CONT (F1) to view traverse results.
19. TRAVERSE Traverse Results
CONT (F1) to exit viewing traverse results.
20. QUIT (F6) to quit the Traverse application.
)
Optionally the traverse can be adjusted.

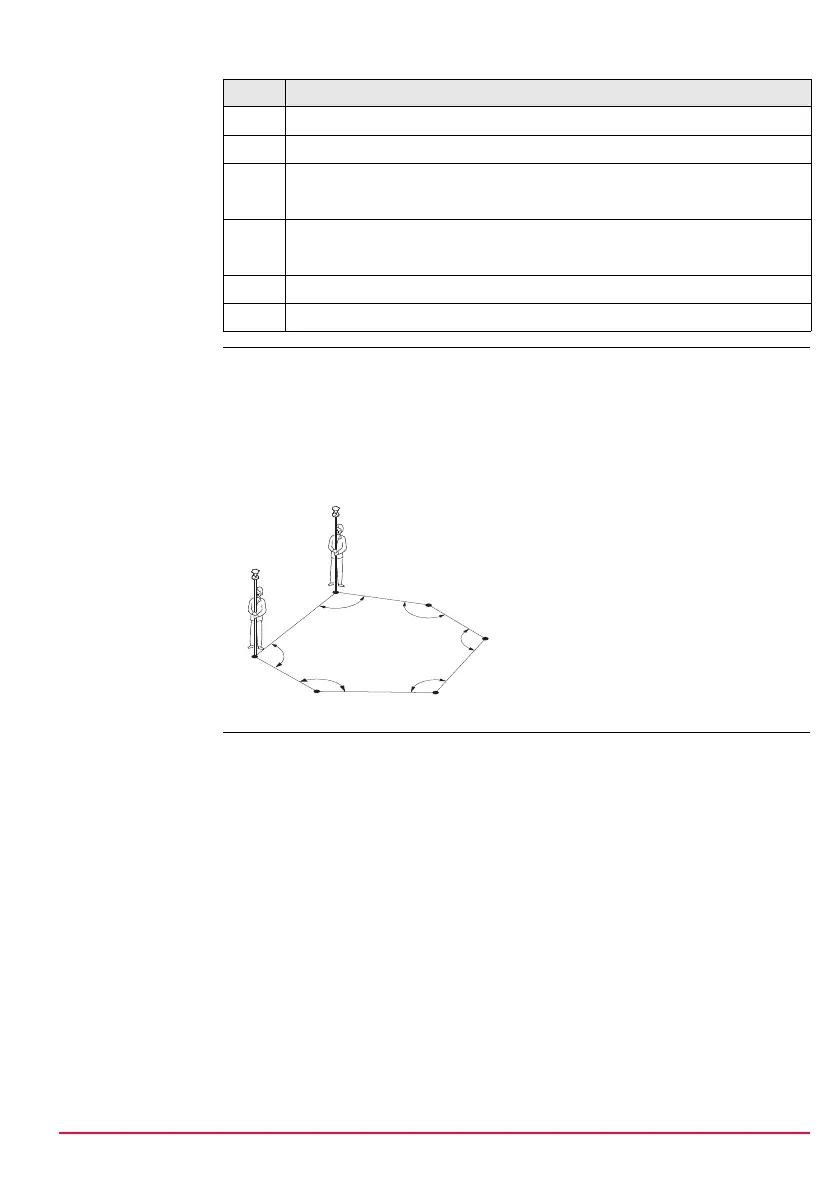

Step Description
The first station setup is on P1, and an
assumed direction to backsight P6. Upon
closing this traverse, with the last setup
over P6, the closing point is P1. In this
case the only point that is considered as
a control is P1.
P1
P6
P5
P4
P3
P2
α
β
TPS12_235
