4 Interfaces
4.1 Overview
The NOVOLAS Basic AT provides electrical interfaces to
•
start the system
•
stop the system (Emergency Stop)
•
unblock the interlock of the laser modules,
•
set laser module current
•
activate the laser diodes
•
monitor system state
These interfaces are provided on terminal blocks (X90-X94) and on connectors of the
Customer I/O module.

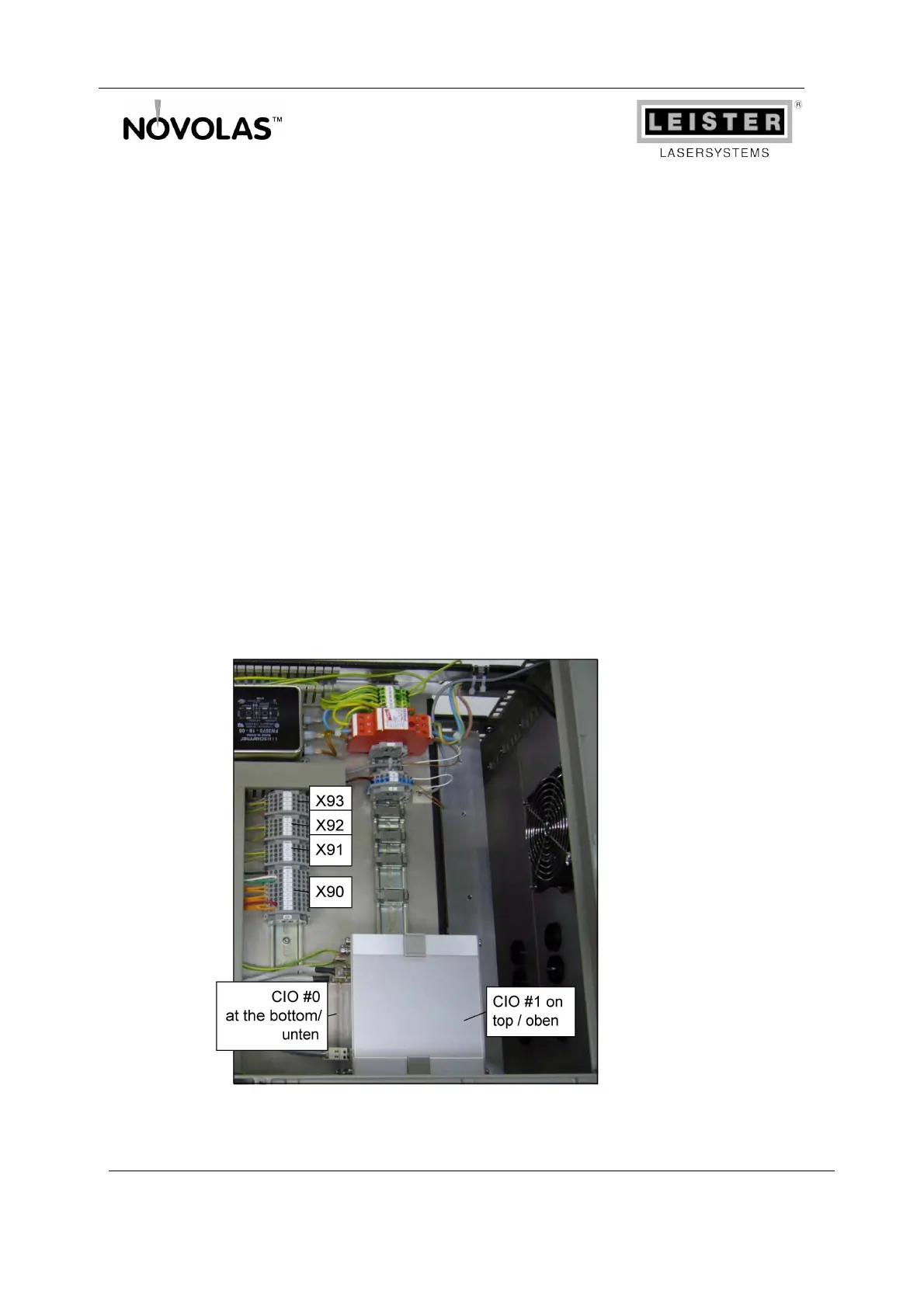

Figure 6: Connecting Array of NOVOLAS Basic AT
