1. INTRODUCTION
The Lely Lotus 600 Stabilo Combi is a hitch carried rotary tedder-to ted
mown fodder crops or widespread crop swaths. The machine is equipped
with a Stabilo steering device. The steering device corrects deviations made
by the machine through the four pivots points.
The working width of the Lotus is 6.00 m (19.7 ft), and can be driven up to
15 km/h. The wheels are positioned closely behind the tines to follow ground
contours accurately.
The Lotus has 4 rotors. A rotor has 8 tine arms with a double spring steel
tine each. The special shaped tines pick up the crop and spread it with a
minimum loss. The rotors can pivot in relation to each other to follow field
indulations accurately.
The Lotus can be fitted with windrowing cages, which makes the Lotus not
only for tedding, but also for making and moving windrows.
The Lotus is connected to the tractor hydraulics. The hydraulic control
makes sure the Lotus moves quick and easily to the transport position. The
machine can be transported behind the tractor. The transport width is 3.00 m
(9.84 ft).
Various optional extras for the Lotus are also available.

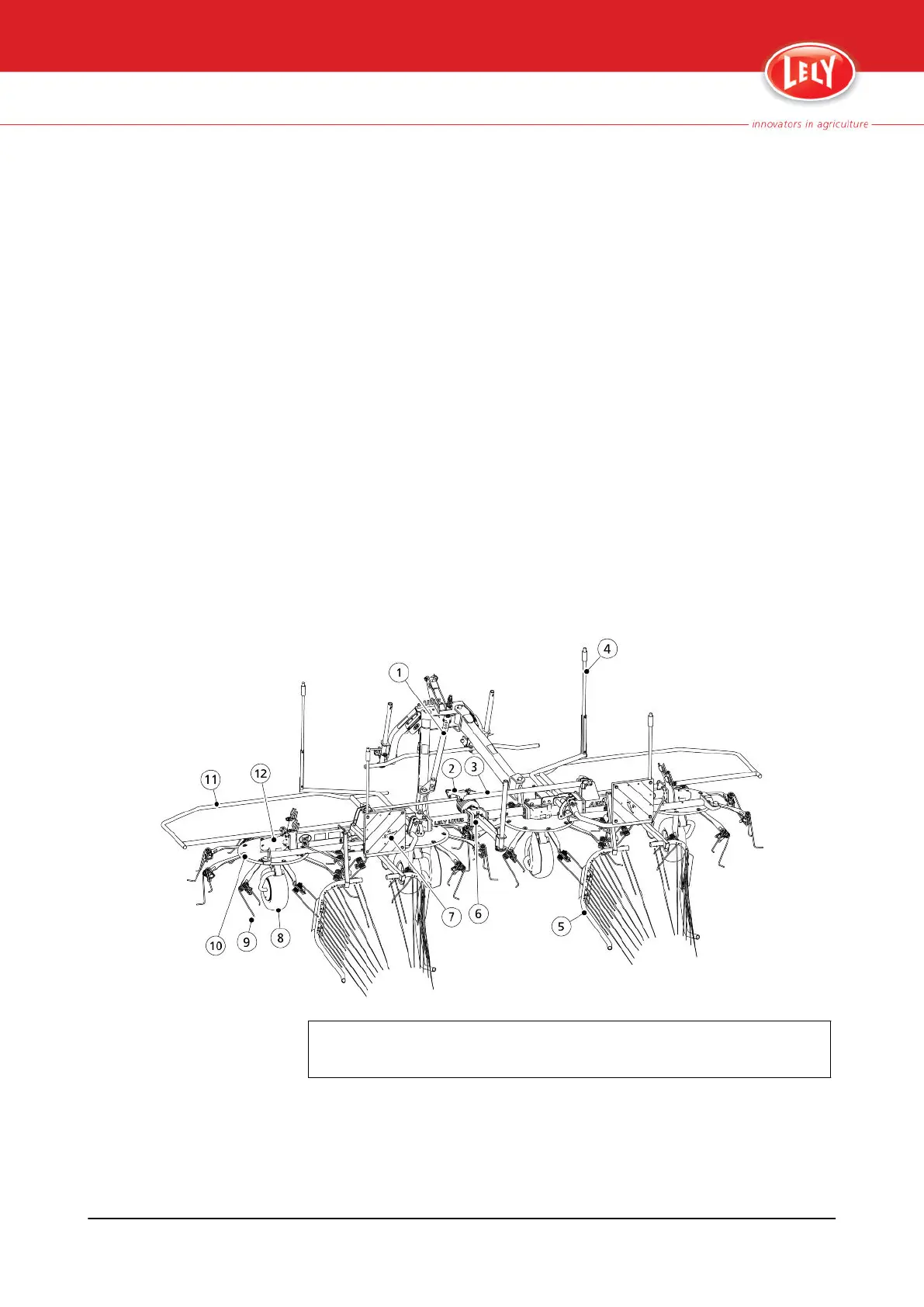

1. Stabilo Steering Device - 2. Locking Hook - 3. Hydraulic Ram - 4. Safety Guard -
5. Windrowing Cage - 6. Gearbox - 7. Warning Plate - 8. Wheel - 9. Tine - 10. Rotor -
11. Safety Bracket - 12. Drive Line
