5.3.2 Adjust the deflection of the rotors
Procedure
1. Park the Lotus on a level floor.
2.
Place an elevation of approximately 6 cm (2.36 in) under the two
central rotor wheels.
3. Move the Lotus to the working position (page 3‑7).
4. Make sure the Lotus is level.
5. Verify the adjustment of the deflection points on both sides of the
Lotus
6. Unlock the locking nut to release the tension on the stop bolt.
7. Adjust the stop bolt until the outer rotor wheel touch the ground.
8. Tighten the lock nut to lock the deflection point.
9. Go to step 5 to adjust the next deflection point.

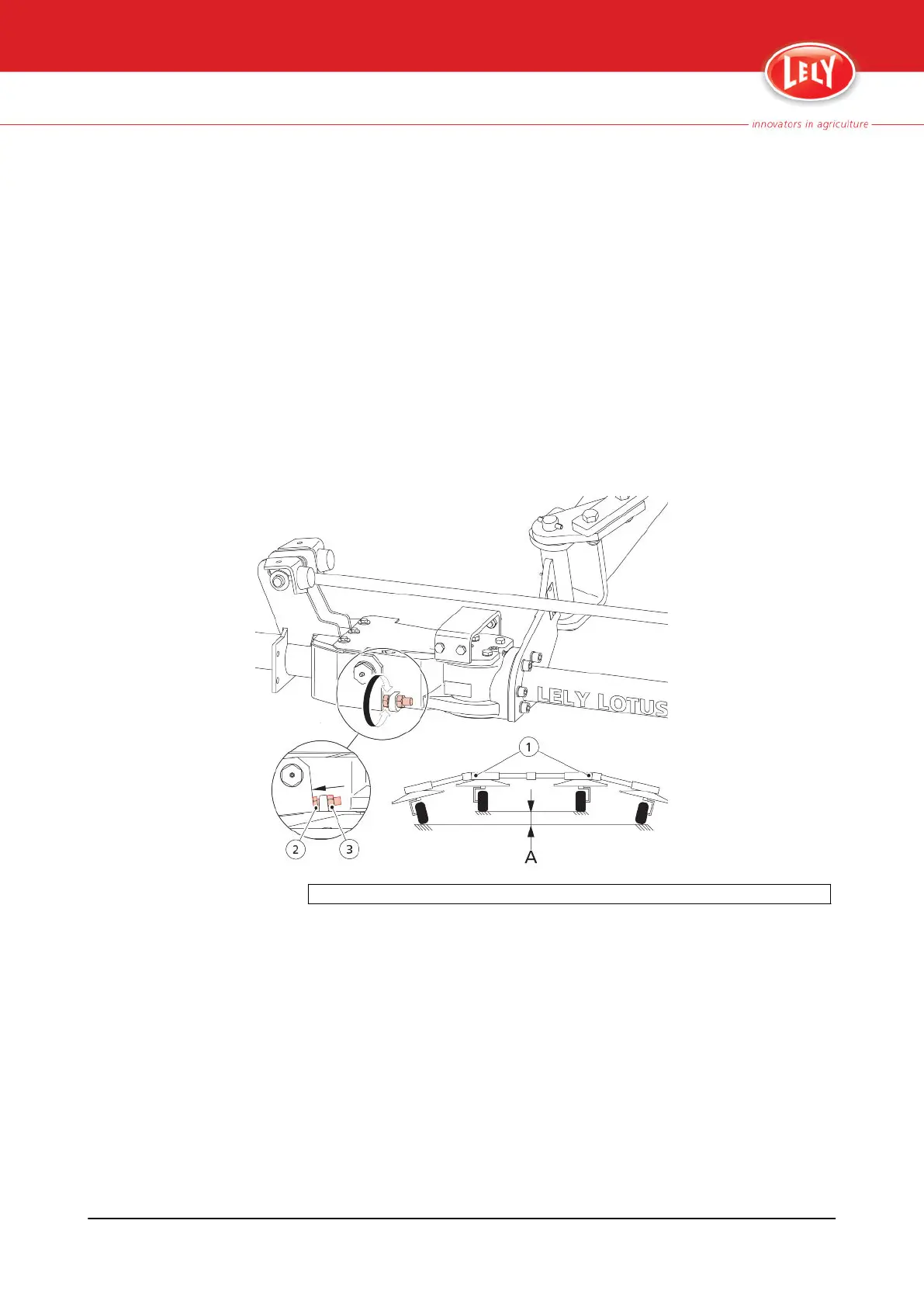

1. Deflection point - 2. Adjustment nut - 3. Stop bolt - A. 6 cm (2.36 in)
Figure 33. Adjust the deflection of the rotors
5-8 Maintenance
4.1046.8504.0 A
