1.1.6 Windrowing Cages + Black Tine arms
Windrowing cages make or move windrows. They are installed on the back
of the Lotus. Make sure to use the black tine arms in combination with the
windrowing cages. The black tine arms have got a smaller curve at the end
of the tine hook, which permits the crops to leave the tine arms a fraction
earlier. This will create a better flow through the windrowing cages.
To ted the plot side, a windrowing cage can be used as an deflector. The
windrowing cage ensures that the crop is not thrown over the plot side (A).
Remove the Windrow cages if they are not being used.

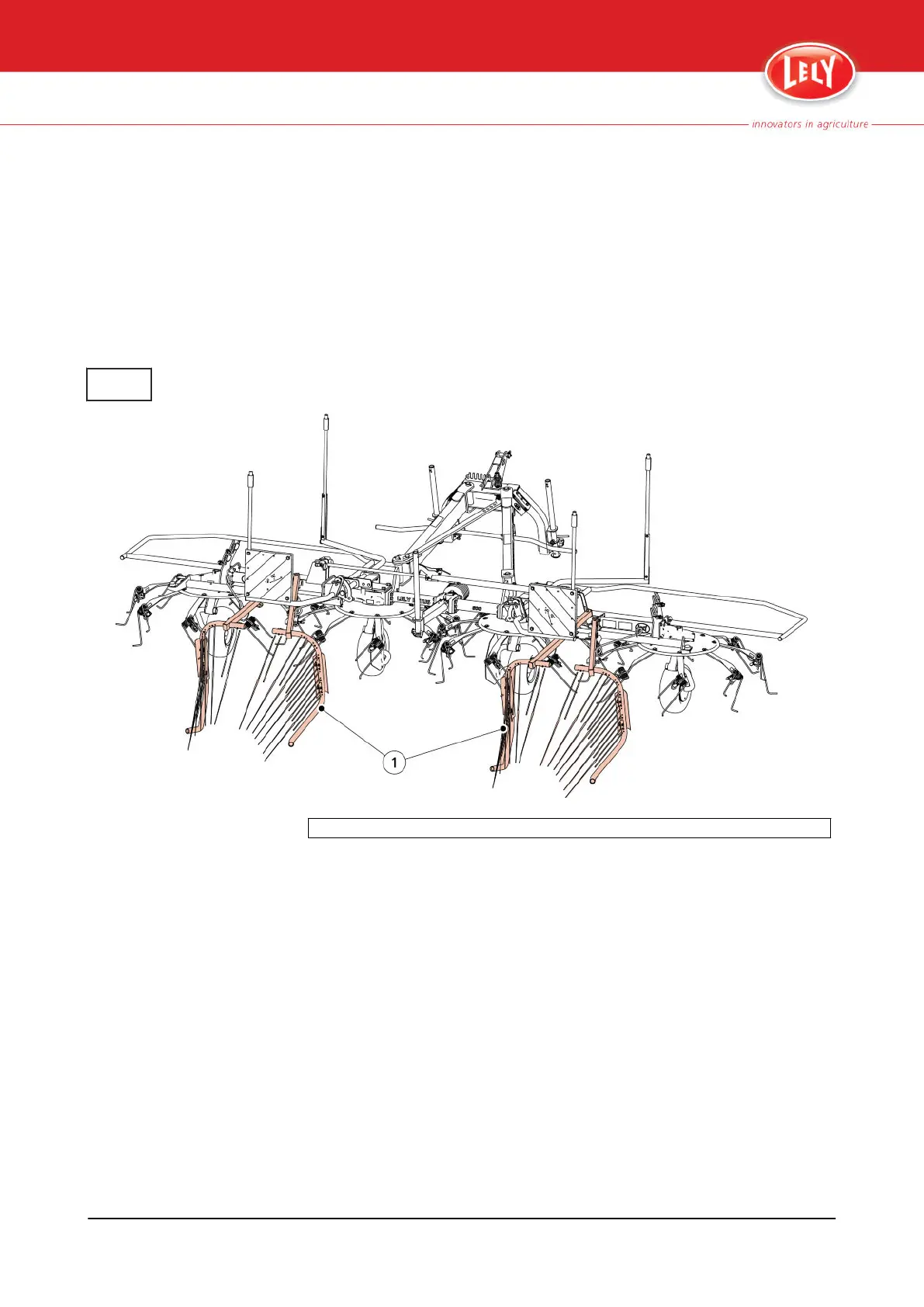

1. Windrowing cages
Figure 8. Windrowing gages
Note:
