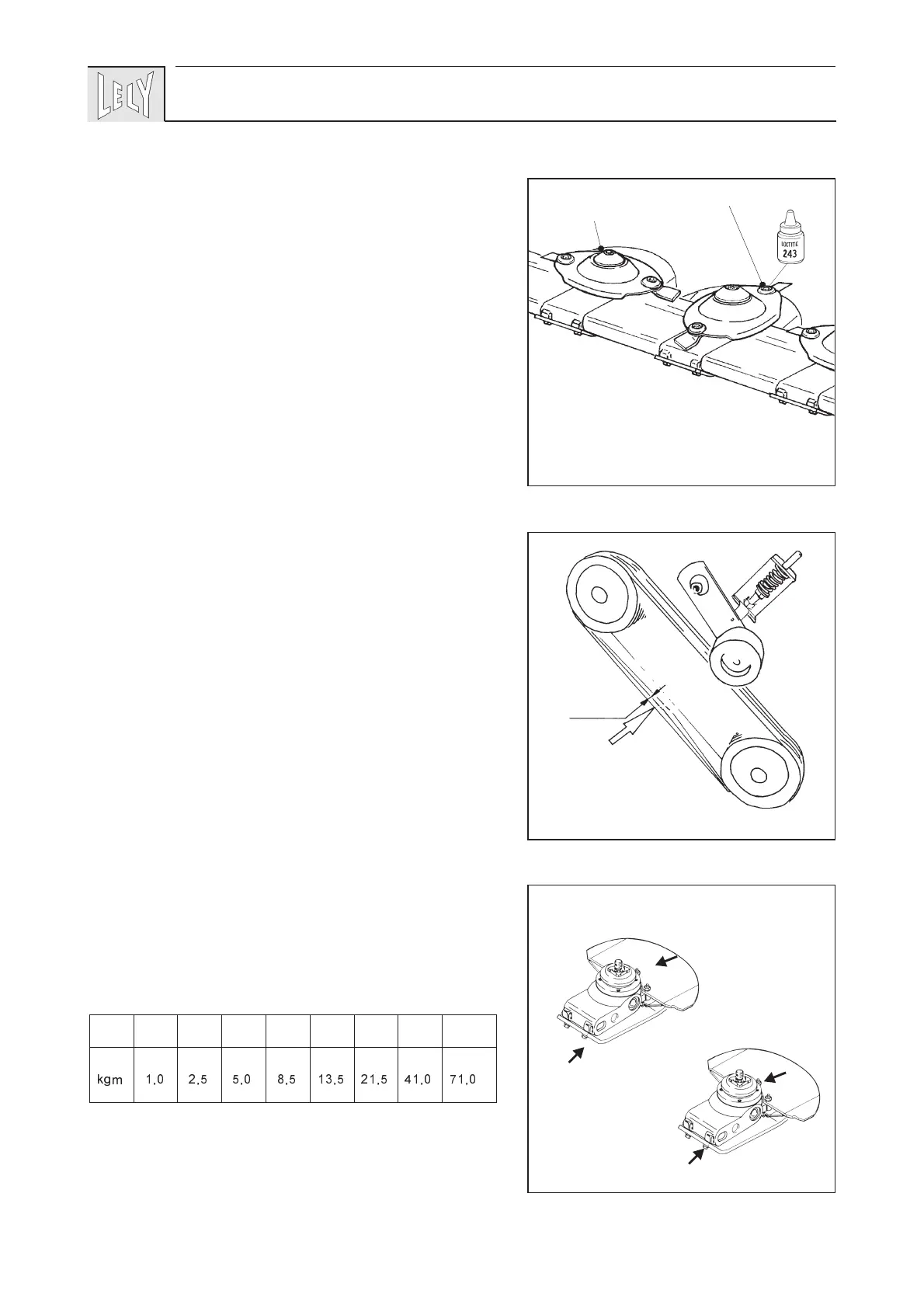

- Check the knife bolts for tightness (fig. 22).
Torque 50 - 60 Nm (5-6 kgm).
- Check the mower discs for tightness. Torque: 150 - 250 Nm
(15-25 kgm). The split pin locking the castellated nut is not
allowed to protrude above the pressure piece.
- Check the V-belts for correct tension (fig. 23).
Dismount the V-belt housing. The tension should be such
that each V-belt can be pushed in, between the pulleys,
approximately 10 mm by applying a force of 70 N (7 kg).
It is recommended to depressurize the V-belts if the
machine will remain out of operation for a longer period of
time.
- Check the tyre pressure, which should be 250 - 300 kPa
(2,5 - 3,0 bar).
- Check all bolts and nuts for tightness. Pay particular
attention to the bolts which secure the skids and wear
plates (fig. 24).
When tightening loose bolts/nuts the torques listed below
should be applied.
35
22
150-250 Nm (15-25 kgm)
50-60 Nm (5-6 kgm)
23
10 mm
70 N
(7 kg)
24
M6 M8 M10 M12 M14 M16 M20 M24
Nm 10 25 50 85 135 215 410 710
kgm 1,0 2,5 5,0 8,5 13,5 21,5 41,0 71,0
