LELY SPLENDIMO 320 PC - Replacement of Knives; Change of Oil in Gearboxes

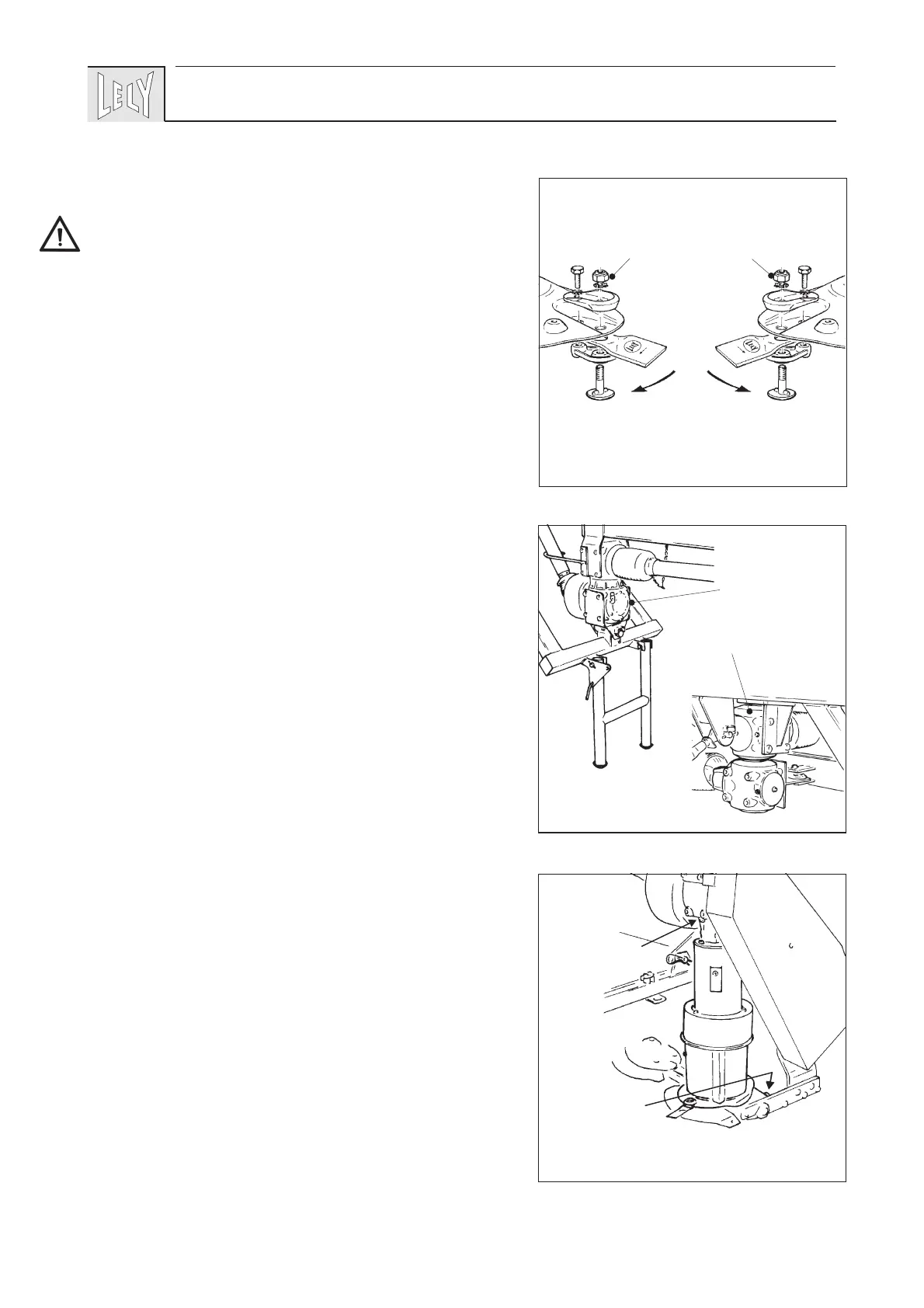

7.4 Replacement of knives
Install supports underneath the cutter bar if it is lifted
from the ground, and you intend to carry out work to the
machine.
The mower knives come in 2 different versions for discs with
LH or RH rotation. The front of the cutting edge has to point
downward, viewed in the direction of rotation of the disc (fig.
26).
The mower knives have two cutting edges. After one edge is
worn, the knife can be reversed so that the second edge can be
used.
- Knives should always be replaced in pairs in order to keep
the disc balanced.
- Replace worn or damaged nuts and knife bolts.
- Use new, self-locking nuts and tighten them with a torque
of 50 - 60 Nm (5 - 6 kgm).
7.5
Change of oil in gearboxes
Change the oil of the gearboxes and the drive element of a
new mower (or after assembly of a new gearbox) after
approx. 30 working hours for the first time. After that, oil has
to be changed every 250 working hours.
An incorrect oil quantity may lead to overheating and
unrepairable damage of the element.
• Fill the gearbox A with GX85W-140 transmission oil as
follows (fig. 27);
Speed 1000 rpm: upper - and lower gearbox each 1,2 l.
Speed 540 rpm: upper gearbox 1,7 l/lower gearbox 1,9 l.
- Fill the gearbox B: upper - and lower gearbox each with
1,2 l transmission oil (GX85W140).
- Fill the gearbox C (fig. 28) with 0.85 l transmission oil
(GX85W140).
Change the oil in the drive element more often when
operating the machine in extremeworking conditions.
- Fill the drive element D with a carefully measured quantity
of 0.45 l transmission oil (GX85W-140).
37
!
26
50-60 Nm (5-6 kgm)
27
A
B
28
C : 0.85 l
GX85W-140
D : 0.45 l
GX85W-140
!
