2.1.9.2 Voltage measurement
Ranges ................................. 4V/10V/20V/40V/100V
200V/400V/1000V
Resolution............................. 100mV in 4V
1V in 40V
10V in 400V
31.25V in 1000V
Accuracy............................... ± 2% rdg ± 1 pixel
Maximum overload................ 1000V RMS
Frequency range................... DC and 10Hz to 600Hz
Time base............................. 2ms, 4ms, 10ms,
50ms/div
Refresh rate.......................... 0.5 seconds
Maximum sampling rate........ 9.6kHz
50ms/div
2.1.10 Digital output
RS-232 Interface to a PC
9600 baud 1 start bit 8 data bits 1 stop bit
Requires WinLog interface and software
2.2 General Data
2.2.1 Display

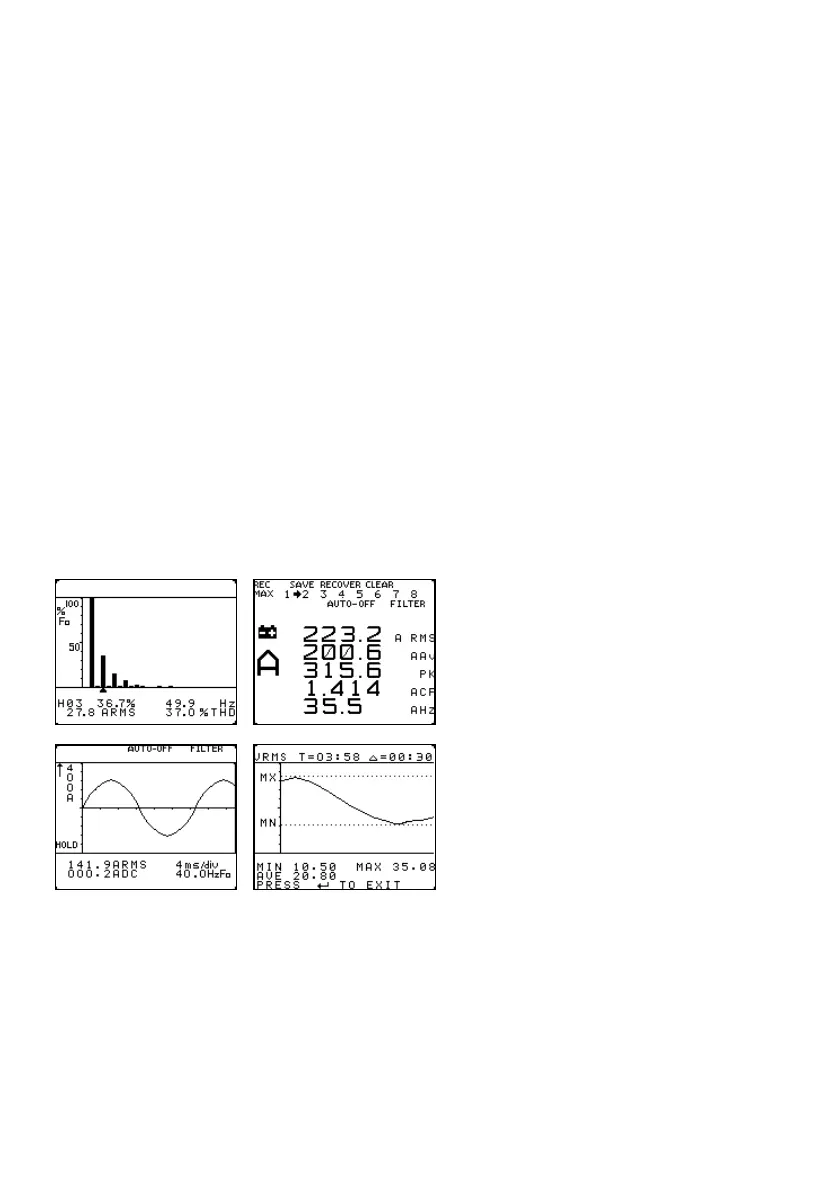

Backlit dot matrix LCD 160 x 128.
2.2.2 Power Supply
Battery type 1.5V Alkaline AA MN 1500 or IEC LR6 x 6
Battery life typically:
24 hours (backlight off)
12 hours (backlight on)
