11
3. OPERATING INSTRUCTIONS

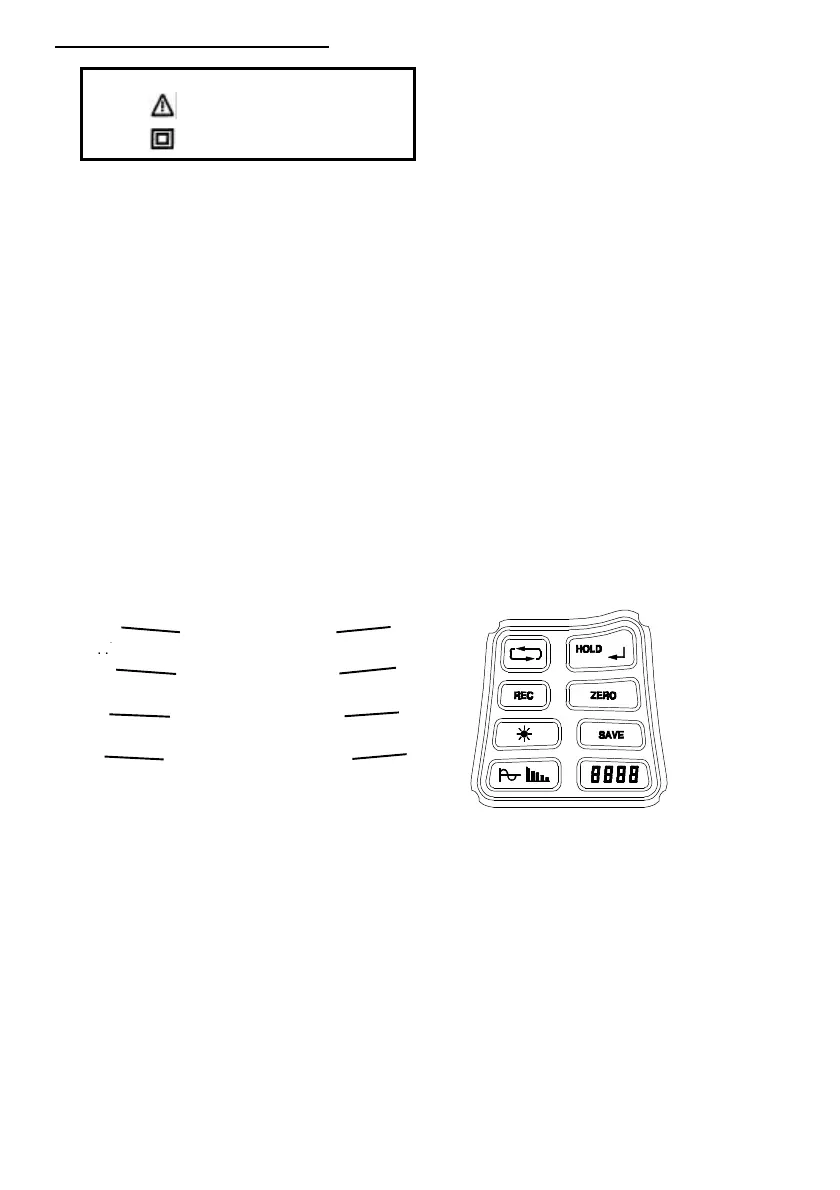

International Symbols
Important Information
(See Manual)
Double Insulation
3.1 Rotary Switch / Keypad selections
The instrument functions are selected by a rotary switch
and an 8 key keypad. The rotary switch positions are as
follows:
OFF Instrument off
V Voltage
A Current
Hz Frequency / THD
W Power
W3∅
3 phase Power
Set up Options Menu
Log Logging Menu
When switching the instrument ON, wait for the auto
calibration, flashing CAL, to finish, before clamping the
jaw on a conductor or applying the test leads to the circuit.
The push button keys are as follows:
1. Option cursor movement and screen changer
2. HOLD and Option select
3. REC mode (Min, Max, Ave)
4. ZERO Amps auto zero
5. Backlight ON / OFF
6. SAVE
7. Oscilloscope/Harmonics (2060) mode
8. Numeric Display mode
1
2
3 4
5
6
7
8
