LEMKEN KARAT 10 - Mounting the Weed Harrow

INFORMATION
The shares can be replaced or, if necessary, converted.
Ä Chapter 6.1.1 ‘Converting the shares ’ on page 41
Protective equipment:
n
Safety shoes
n
Protective gloves, mechanical hazard
INFORMATION
Adherence to the 3 m transport width:
For machines with a working width of 300 cm or 400 cm
and equipped with the duckfoot-shares KG37 or KG37H:
– To ensure adherence to the 3 m transport width, the
duckfoot-shares KG35 or KG35H must be mounted on
the two outer tines.
1.
Slide the share
1
onto the tine
2
from below.
2.
Mount the share with its bracing rods
5
initially in the detent
3
and then in the detent
4
of the tine.
3.
Insert the linch pin
7
from the top between the share guide and
the tine.
CAUTION: Crush risk when folding in/out the linch pin
ð
The linch pin holds the share in the detent position.
4.
Fold down the safety bar
6
.
ð
The safety bar holds the linch pin
7
in place.
ð
The share has been mounted.
6.1.3 Mounting the weed harrow
n The machine has been lowered fully.
n The tractor engine has been switched o.
n The tractor-machine combination has been secured against rolling
away.

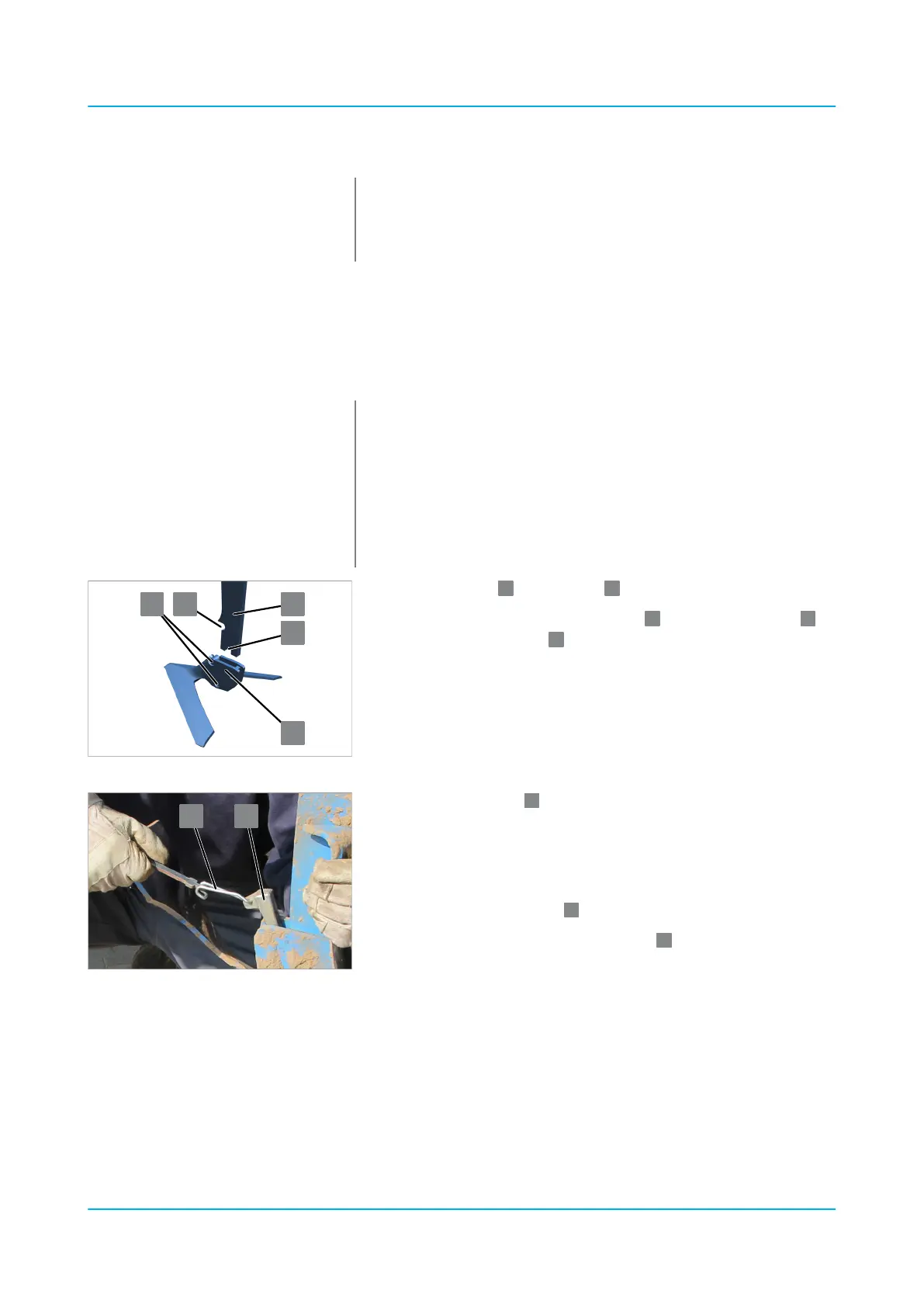

Mount the share
1
2
3
45
1
Share
2
Tines
3
Detent
4
Detent
5
Bracing rods
6 7
6
Safety bar
7
Linch pin
Preconditions
Operation
