LEMKEN KARAT 10 - Changing Shares at the Quick-Change System

6.1.2 Changing shares at the quick-change system
1
Tines
2
Share

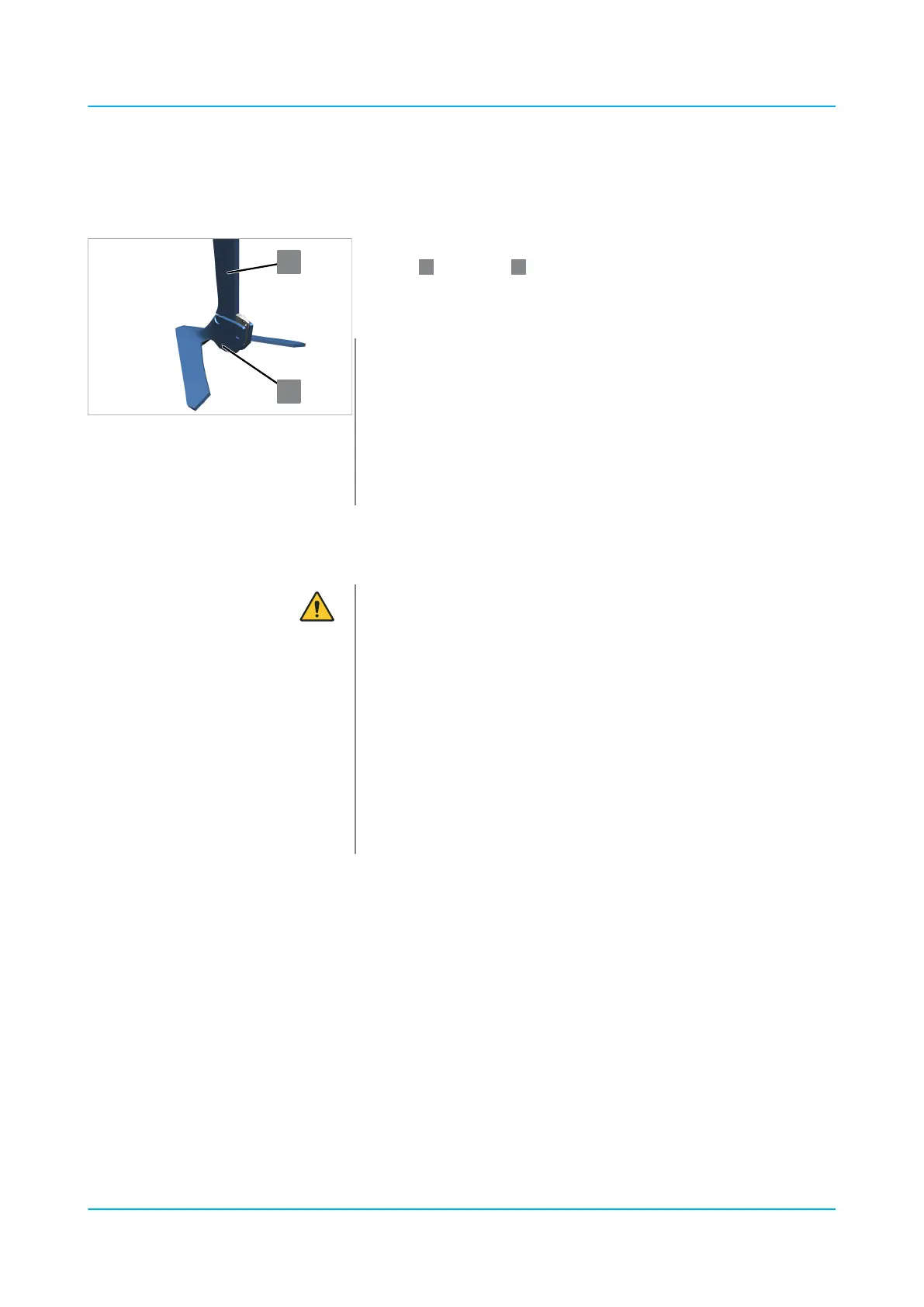

The quick-change system allows easy mounting and removal of the
shares
2
on the tine
1
.
Shares can be replaced quickly with another share and the entire
machine can be converted in just a few minutes.
INFORMATION
Adherence to the 3 m transport width:
For machines with a working width of 300 cm or 400 cm
and equipped with the duckfoot-shares KG37 or KG37H:
– To ensure adherence to the 3 m transport width, the
duckfoot-shares KG35 or KG35H must be mounted on
the two outer tines.
DANGER
Serious crush injuries
A machine with a high dead weight can move down‐
wards independently.
Serious crush injuries and puncture wounds caused by
sharp components, as well as deep lacerations caused
by sharp-edged components, can lead to life-threatening
harm.
– NEVER walk or stand underneath unsecured
machines.
– Use suitable equipment to secure machines against
lowering.
1. Secure the tractor-machine combination to prevent it from rolling
away.
2. Switch the rear lifting gear of the tractor to position control.
3. Lift the machine fully.
4. Fold the machine in.
5. Secure the machine against unintentional folding out.
6. Lock the tractor control units.
7. Switch o the tractor engine.
Background
1
2
Preparing for change
Operation
