LEMKEN KARAT 10 - Adjusting the Machine; Adjusting Working Depth

1
Weed harrow
2
Brackets
3
U-bolts
The weed harrow
1
must always be mounted on a trailing roller.
Brackets
2
and U-bolts
3
are available for mounting. There is one
harrow segment for each trailing roller segment.
1.
Position both U-bolts
3
on the supporting tube
5
of the roller.
2.
Mount the brackets
2
of the harrow segment.
3.
Install and tighten the washers and nuts
4
. Ä Appendix B
‘Tightening torques screws ’ on page 89
Ä Appendix B.4 ‘Points’
on page 93
4. If necessary, adjust the weed harrow.
1.
Remove the washers and nuts
4
.
2.
Remove the brackets
2
of the harrow segment.
3.
Remove both U-bolts
3
.
6.2 Adjusting the machine
6.2.1 Adjusting working depth
Depending on the machine equipment, the working depth can be
adjusted mechanically or hydraulically.

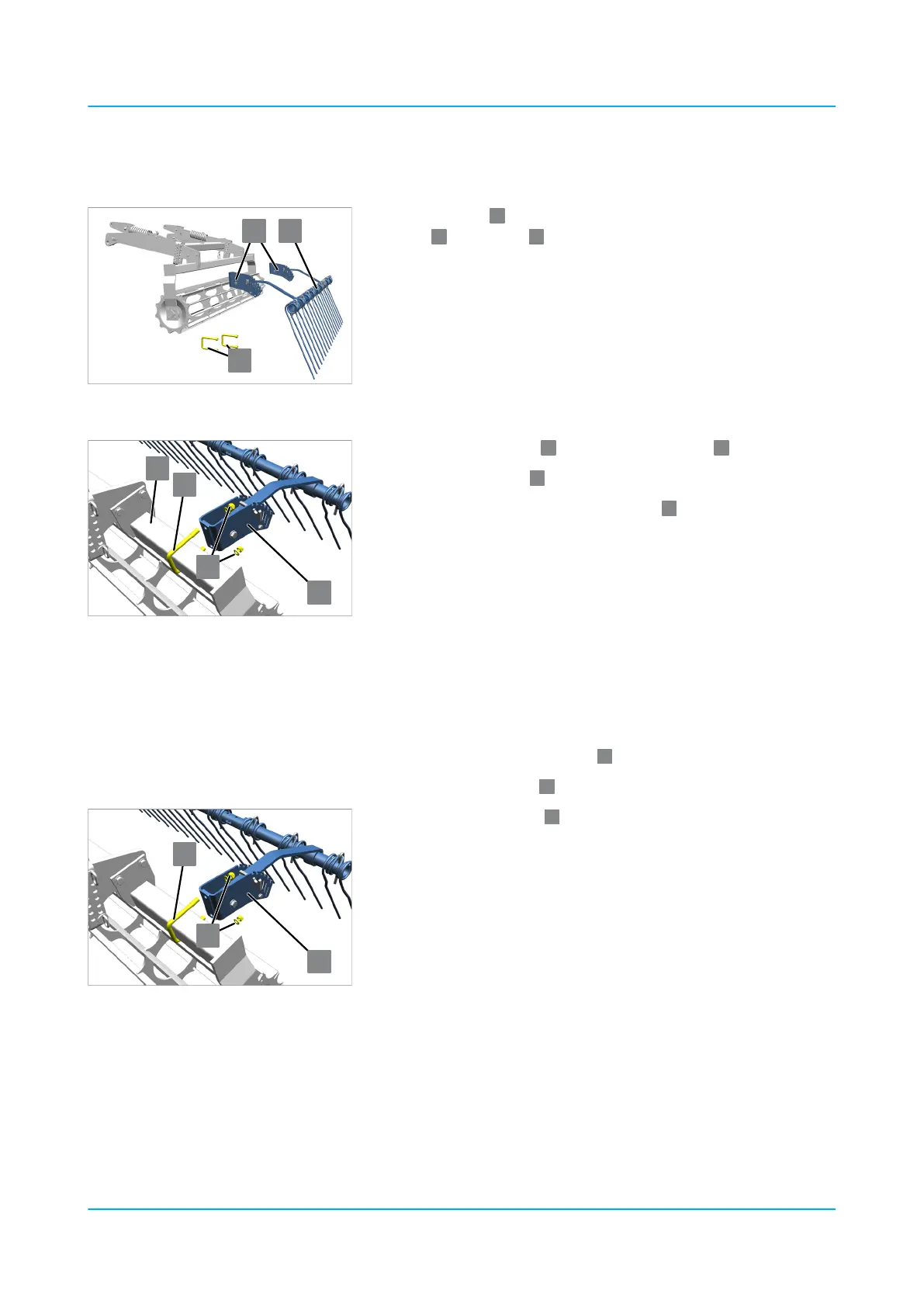

Mounting the weed harrow
12
3
Example image
3
5
2
4
Example image
2
Harrow holder
3
U-bolts
4
Washers and nuts
5
Supporting tube
Removing weed harrow
3
2
4
Example image
2
Harrow holder
3
U-bolts
4
Washers and nuts
