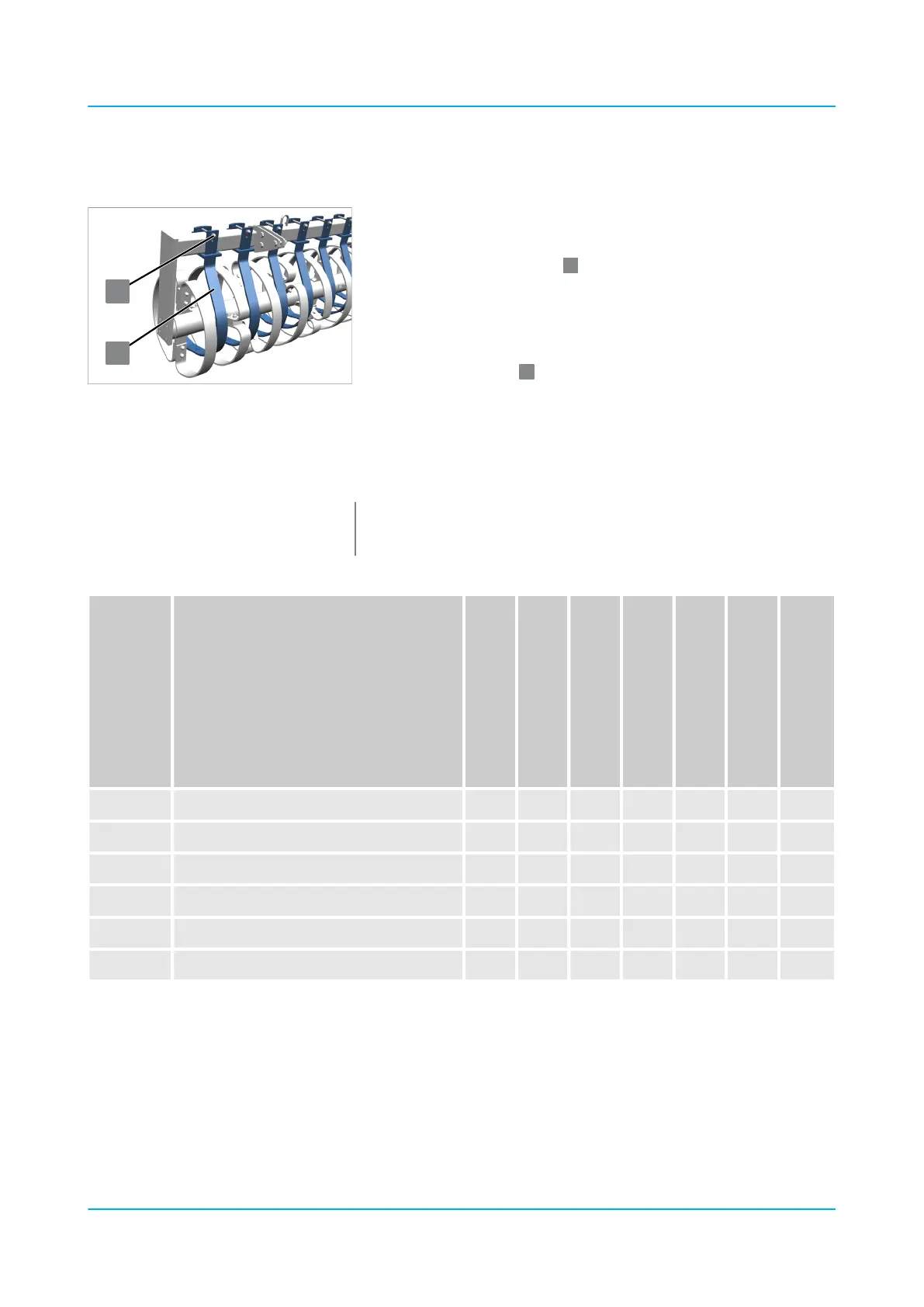

LEMKEN KARAT 10 - Lubricating; Lubrication Schedule

Target: Avoid consequential damage to the implement caused by
fallen-o scrapers.
1.
Dismantle worn scrapers
1
.
2.
Mount new scrapers.
n Scrapers are mounted on the bar on the side facing the driving
direction.
3.
Tighten the screw
2
to 93 Nm.
9.3 Lubricating
9.3.1 Lubrication schedule
INFORMATION
The lubrication points are colour coded on the machine.
Chap. Task to execute
Before the season
After cleaning
Every 10 operating hours
Every 20 operating hours
Every 50 operating hours
Every 100 operating hours
Page
9.3.2 Lubricate wheel bearing ● ● 72
9.3.2 Lubricating hydraulic rams ● ● ● 72
9.3.3 Grease top link pin ● ● ● 72
9.3.3 Grease pin ● ● 72
9.3.3 Grease piston rods ● ● 73
9.3.3 Grease surfaces ● ● 73
Replace scrapers
1
2
1
Scraper
2
Screw
Maintenance and repair work
en-GB | Item no. 17516276 | BA 01/2023-09 71
