9.2.8 Rollers

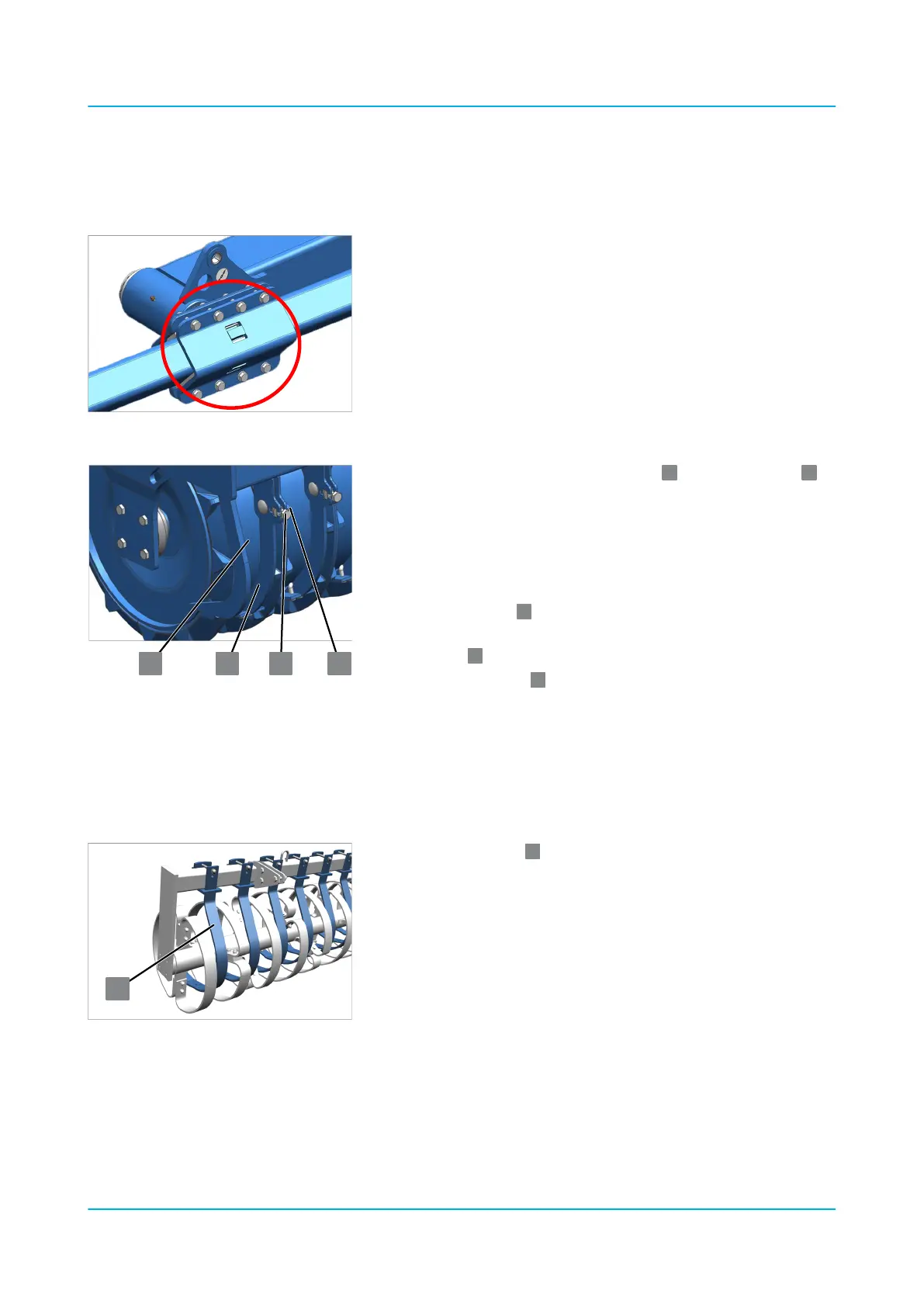

9.2.8.1 Checking bolted connections of roller oscillation
► Tighten bolted connections in a criss-cross fashion to 120 Nm.
9.2.8.2 Checking the scraper of the trapeze packer roller
1.
Check the distance between the scraper
1
and the roll sleeve
4
:
n Turn the roller through 360°.
INFORMATION: The scraper must not touch the roll sleeve at any
position.
2. At a distance of < 0.1 mm or > 0.5 mm: Adjust the distance:
n Undo the nut
3
.
n Adjust to a distance of 0.1 ... 0.5 mm using the adjusting
screw
2
.
n Tighten the nut
3
.
– Ä Appendix B ‘Tightening torques screws ’ on page 89
Ä Appendix B.4 ‘Points’ on page 93
n Check the adjustments and correct, if necessary.
9.2.8.3 Checking the scraper of the exring roller
1.
Check the scrapers
1
for wear.
2. With a remaining thickness < 5 mm: Replace the scraper.
1 2 34
1
Scraper
2
Adjusting screw
3
Nut
4
Roll sleeve
1
1
Scraper
Maintenance and repair work
