8 Decommissioning
8.1 Detaching the machine
Precondition:
√ The subsoil is level with sucient bearing capacity.
1. Secure the tractor and machine to prevent them from rolling away.
WARNING: When standing between the tractor and machine,
there is a risk of the tractor rolling away or of sudden machine
movements.
2. Lower the machine.
3. Depressurise the additional tractor control units.
4.
WARNING: Hydraulic oil under pressure may squirt out of the
hydraulic hoses when they are connected and disconnected.
Dismantle all the lines and hoses from the tractor and secure them
on the machine.
5. Mount protecting caps on the hydraulic hoses.
6.
Relieve the top link pin
4
, e.g. by actuating the tractor hydraulics.
7.
Secure the top link
3
to prevent it from lowering.
8.
Dismantle the top link pin
4
and secure it on the tractor.
ð
The top link
3
and the headstock have been disconnected.
9.
Unlock the cross shaft
2
in the lower links
1
.
10.
Lower the lower links
1
of the tractor until the lower links are
uncoupled from the cross shaft
2
.
11. Make sure the tractor and the machine are not connected in any
way.
12. Make sure that no machine parts can become caught on the tractor
or dragged along by it, e.g. hydraulic hoses.
13. Carefully drive the tractor straight away from the machine.
ð
Machine has been removed.
8.2 Storing and wintering the machine
INFORMATION
Before wintering, check the machine according to the
lubrication schedule. Apply grease, if necessary.

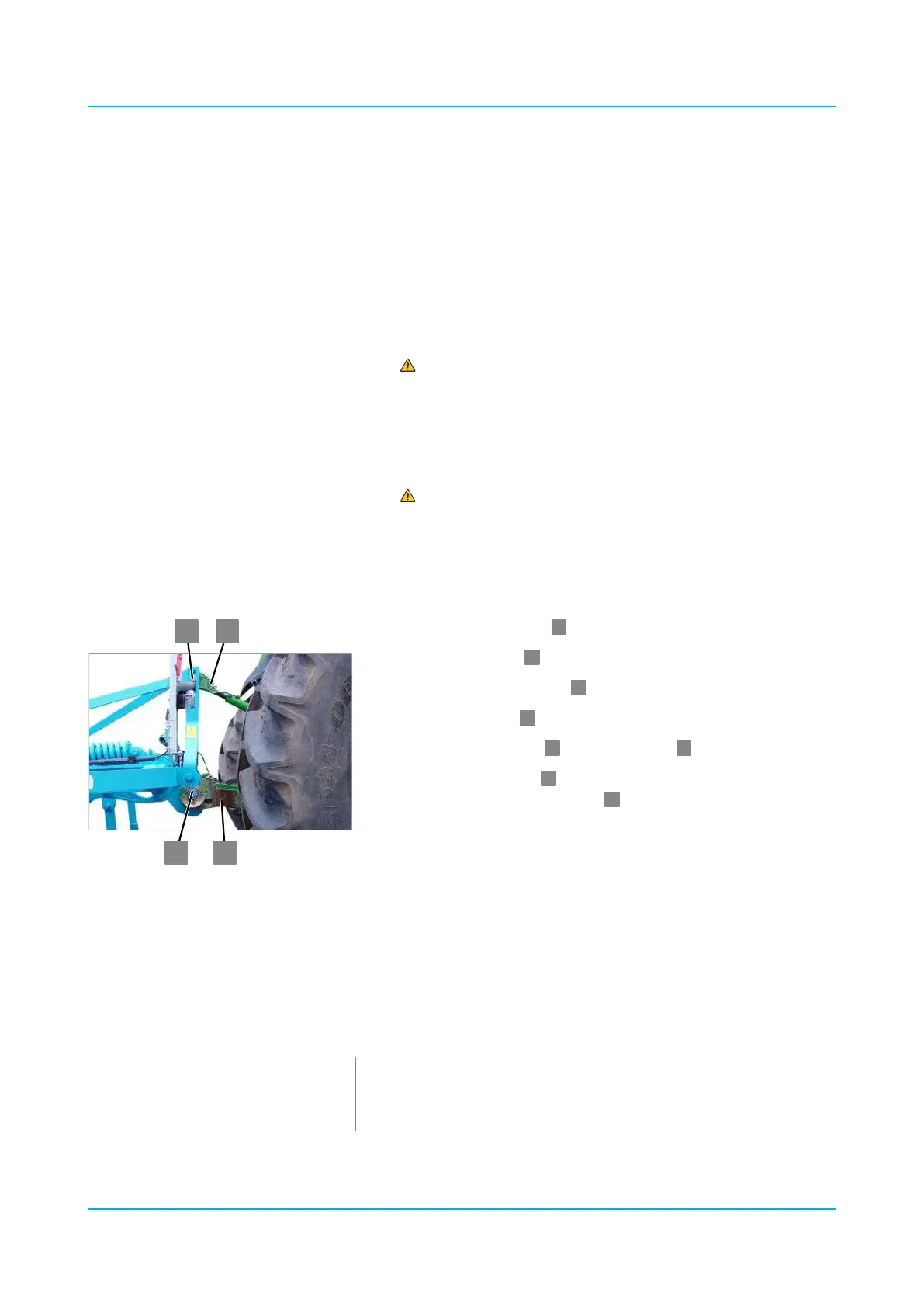

Detaching machine with headstock
12
34
1
Lower link
2
Cross shaft
3
Top link
4
Top link pin
