1. Remove the shares.
Ä Chapter 6.1.2 ‘Changing shares at the quick-change system’
on page 44
2.
Replace the guide plate
2
and the point
1
on the share base
3
, if
required.
n Observe the information on the tightening torques.
Ä Appendix B ‘Tightening torques screws ’ on page 89
Ä Appendix B.4 ‘Points’ on page 93
3.
Replace the wing shares
4
on the share base
5
, if required.
n Observe the information on the tightening torques.
Ä Appendix B ‘Tightening torques screws ’ on page 89
Ä Appendix B.4 ‘Points’ on page 93
4. Equip all the shares in the same manner.
INFORMATION: Share selection for adherence to a transport width
of 3 m.
5. Mount the newly equipped shares on the quick-change system.
Ä Chapter 6.1.2 ‘Changing shares at the quick-change system’
on page 44
ð
The shares have been converted.

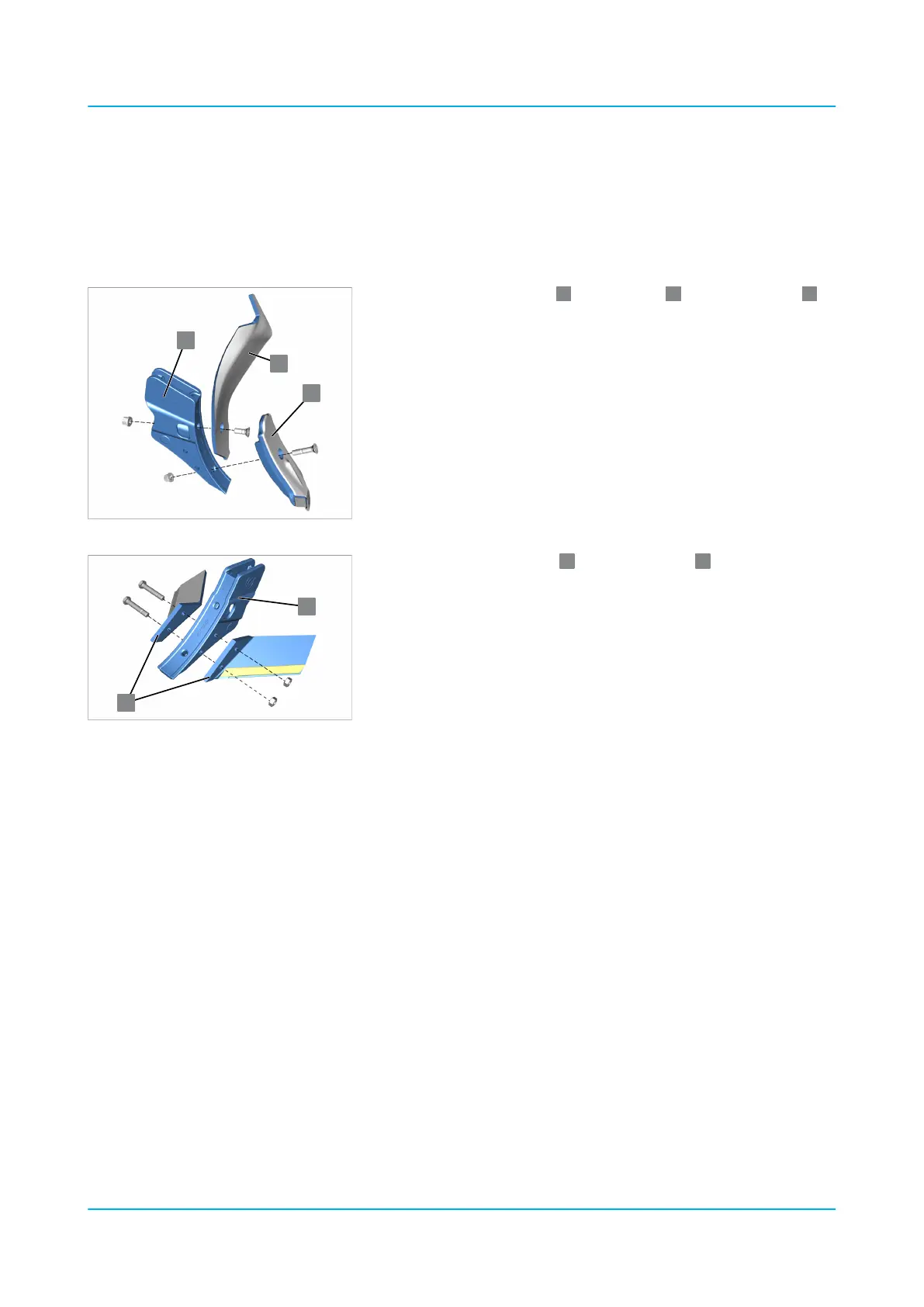

Converting the shares
1
2
3
1
Point
2
Guide plate
3
Share base
4
5
4
Wing shares
5
Share base
