42

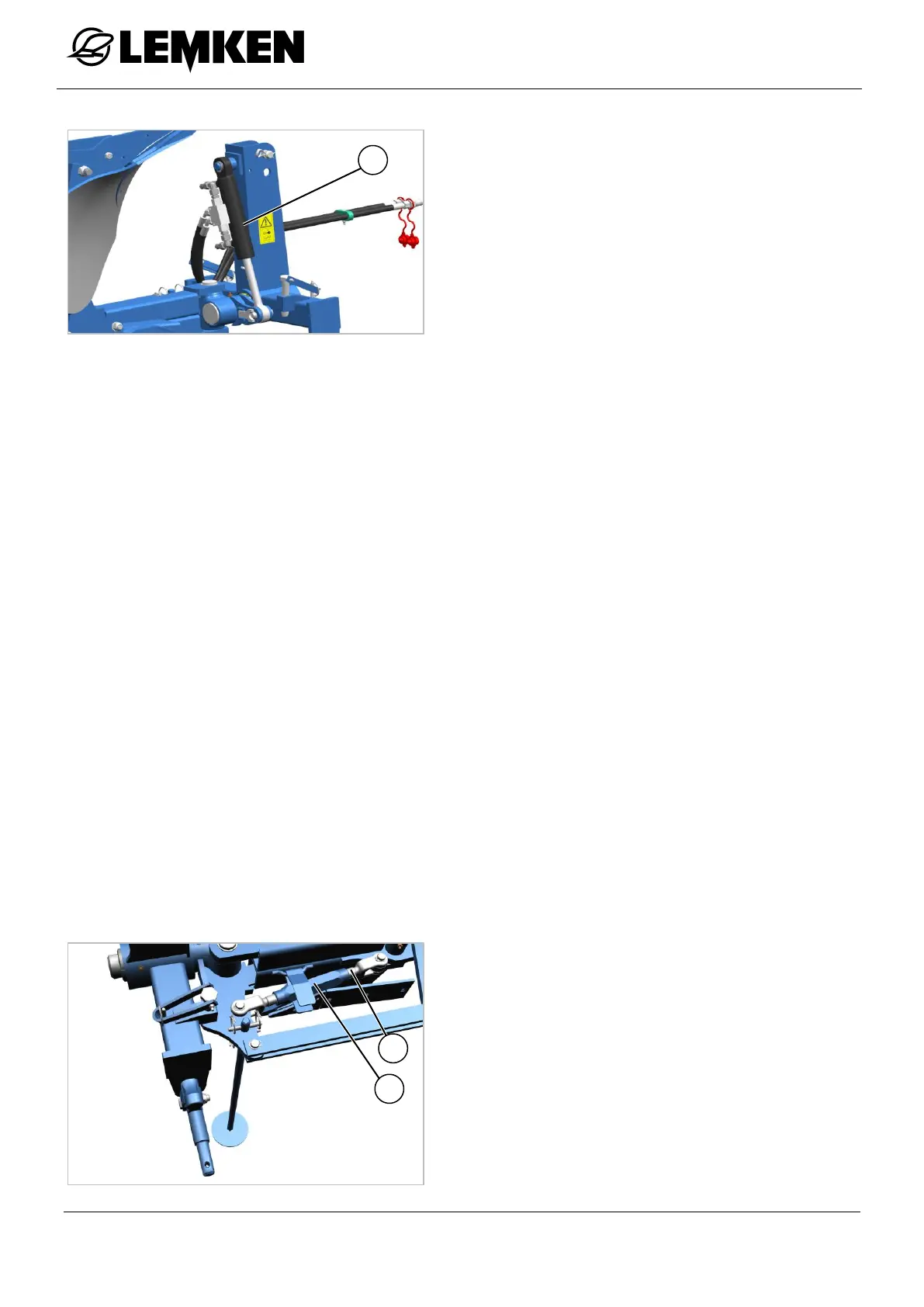

The turnover device has a double-acting
turnover ram (1) with automatic locking
and switchover for connection to a double-
acting spool valve.
Lift the plough completely before turning it.
Apply pressure to the hydraulic hose connected to the tractor, marked “P1”.
The plough frame turns through 90°.
In central position (90° plough turning) apply pressure to the hydraulic hose
connected to the tractor with the mark "T1".
The plough frame turns to 180°.
After turning, switch the control lever to "N" (neutral).
A new turning operation can then be initiated.
11.3 Adjusting front furrow width
11.3.1 General information
The front furrow width must be set to correspond to the working width of the follo-
wing plough base.
11.3.2 Front furrow width
Use the inner screw (1) to adjust the front
furrow width.
If the front furrow is too narrow:
Turn the screw (1) shorter.
If the front furrow is too wide:
Turn the screw (1) longer.
