11.5 Working depth
The working depth is set using the tractor hydraulic system. For information on
adjusting the hydraulic system, see the operating instructions from the relevant
tractor manufacturer.
 Always switch the hydraulic system to draft control or mixed control.
11.6 DURAL plough body
11.6.1 Angle

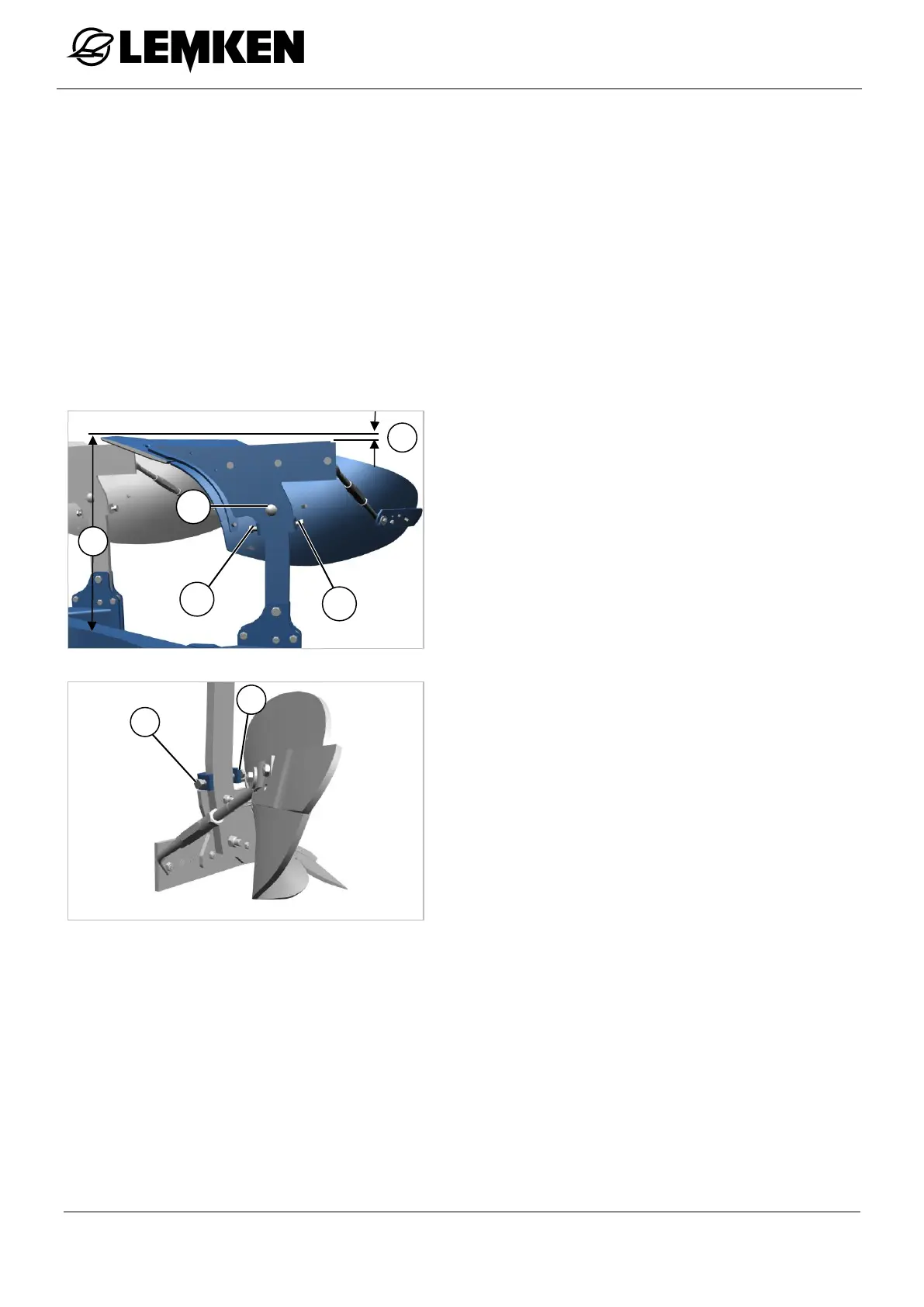

The distance (A) between the points and
the plough frame should be identical at all
bodies. The dimension (D) should be ap-
prox. 1.5 cm. Required adjustments are
carried out using the adjusting screw (1).
 Loosen wing body screws (2).
The bodies are fitted at a centre pitch -
angle relative to the ground. Change the
pitch angle using the adjusting screw (1).
 Adjust the adjusting screw (1).
 Larger pitch angle
=> improved penetration
 Smaller pitch angle
=> improved depth control
 Retighten all screws.
See "Tightening torques, page 54".
