14
lencomarine.com
Auto Calibration
Adjusting Controller
Aggression Level
LED's
1 = 20%
2 = 40%
3 = 60%
4 = 80%
5 = 100%
Activate/Deactivate
Throttle On-Demand Pitch
Adjusting Vessel Pitch
Oset On Plane
LED's
No LEDS = 0°
1 = .75°
2 = 1°
3 = 1. 25°
4 = 1.5°
5 = 1.75°
6 = 2°
7 = 2 .5°
8 = 3°
9 = 3.5°

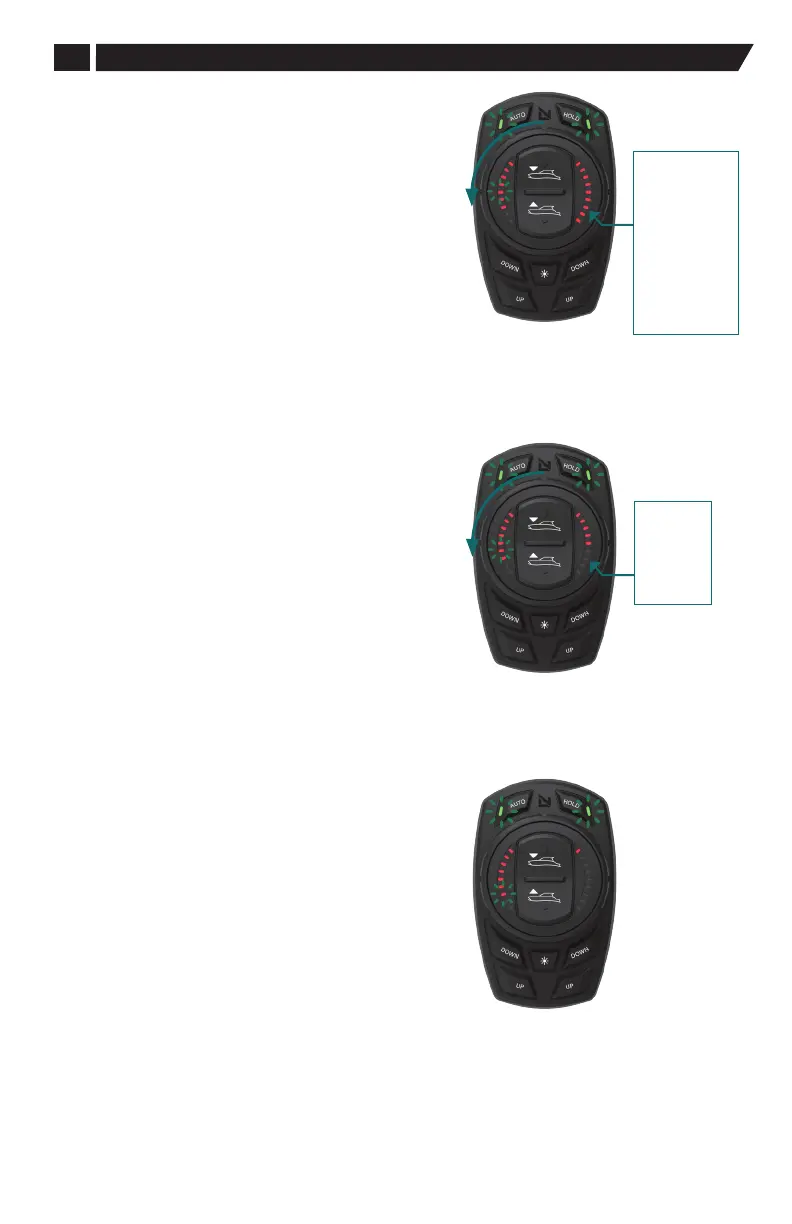

Calibration: 5. On-Plane Delta Pitch
This function sets the actuator extension position for
the trim tab to control orientation of the boat.
The system is already in the Calibration mode from the
last calibration step: both AUTO and HOLD button LEDs
slow blink in unison.
Rotate dial counterclockwise until five left side LEDs are lit.
Adjust the value, displayed by the right-hand LEDs, using
the pitch UP/DOWN button on the dial. The selected value
will auto save when exiting the menu.
Note: A higher number of LEDs correlates to more
trim tab in the water at lower speed. This helps control
pitch of the boat until it reaches on-plane.
Calibration: 6. Controller Aggression Level
This function sets the actuator movement speed for the
trim tab response needed to control orientation changes
of the boat.
The system is already in the Calibration mode from the
last calibration step: both AUTO and HOLD button LEDs
slow blink in unison.
Rotate dial counterclockwise until four left side LEDs are lit.
Actuator rate of extension and retraction speed is set on
the right-hand dial LEDs: 1 is slowest; 5 is fastest
Adjust the value, displayed by the right-hand dial LEDs,
using the pitch UP/DOWN button on the dial. The
selected value will auto save when exiting the menu.
Calibration: 7. Throttle On-Demand Pitch
Only works for Mercury Digital Throttle System
enabled boats.
Throttle On-Demand pitch: ON = right LED illuminated.
OFF = right LED o.
The throttle on-demand pitch will retract tabs sooner
when both boat pitch and throttle demand conditions
are met.
When this feature is activated the pitch of the boat’s
bow will be minimized regardless of throttle position
as the boat increases speed from rest to on-plane.
