Pro Control Assist: Commissioning Menu
Pro Control Assist: Calibration
While every eort has been made to make this product work “out of the box” some users
may wish to adjust certain parameters most suitable for their vessel.

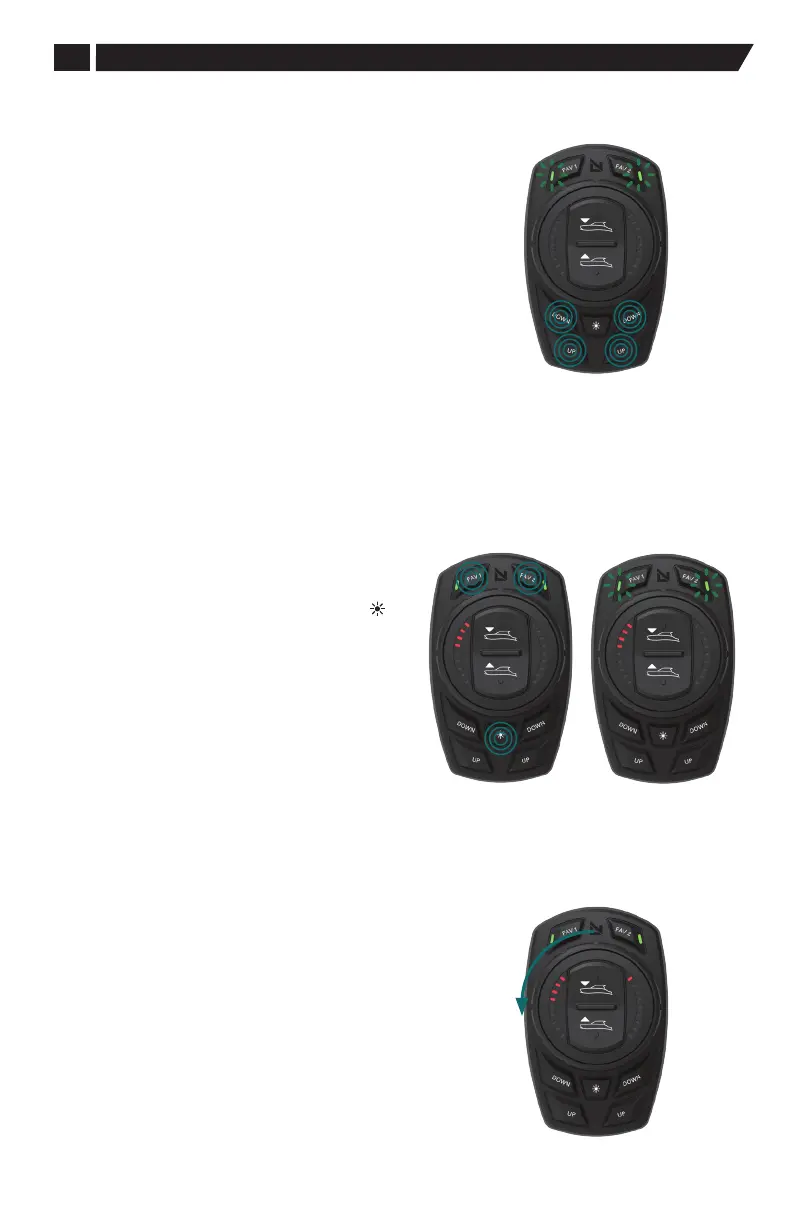

Enter Calibration Mode
• To enter or exit: press FAV 1, FAV 2, and DIM ( ) at
the same time.
• The two FAV LEDs will both display constantly lit
when all three buttons are pressed correctly.
• The two FAV LEDs will begin to flash in sync when
the three buttons are depressed for four seconds.
Note: Both FAV button LEDs slow blink in unison
when the keypad is in the Calibration menu.
In
Calibration
Mode
Entering
Calibration
Mode
Pro Control Assist Calibration Defined
The following parameters may be adjusted when the keypad is
in the Calibration menu:
1. Actuator rate of travel (during all operations).
2. Holeshot activation speed.
3. Holeshot intensity.
4. On-plane transition speed.
Adjust the value, displayed by the right-hand LEDs, using
the pitch UP/DOWN button on the dial. Turn the dial counter
clockwise to move through the four calibration menus. Values will
auto save when rotating the dial to move to the next menu setting.
Note: Selection of left LED is accomplished by rotating the dial.
Locating actuators: port; and starboard
The Pro Control system will automatically enter its
commissioning menu upon the initial powerup. Should you need
to access this manually, refer to the instructions below.
• To enter or exit: press all four lower buttons, up and down
buttons, at the same time.
• The two FAV LEDs will both display constantly lit when all
four buttons are pressed correctly.
• The two FAV LEDs will begin to flash in an alternating pattern
when all four buttons are depressed for four seconds.
See the Pro Control Installation Manual for instructions to locate
the actuators, port and starboard, on the boat.
Entering
the Locating
Menu
