Assist Callibration

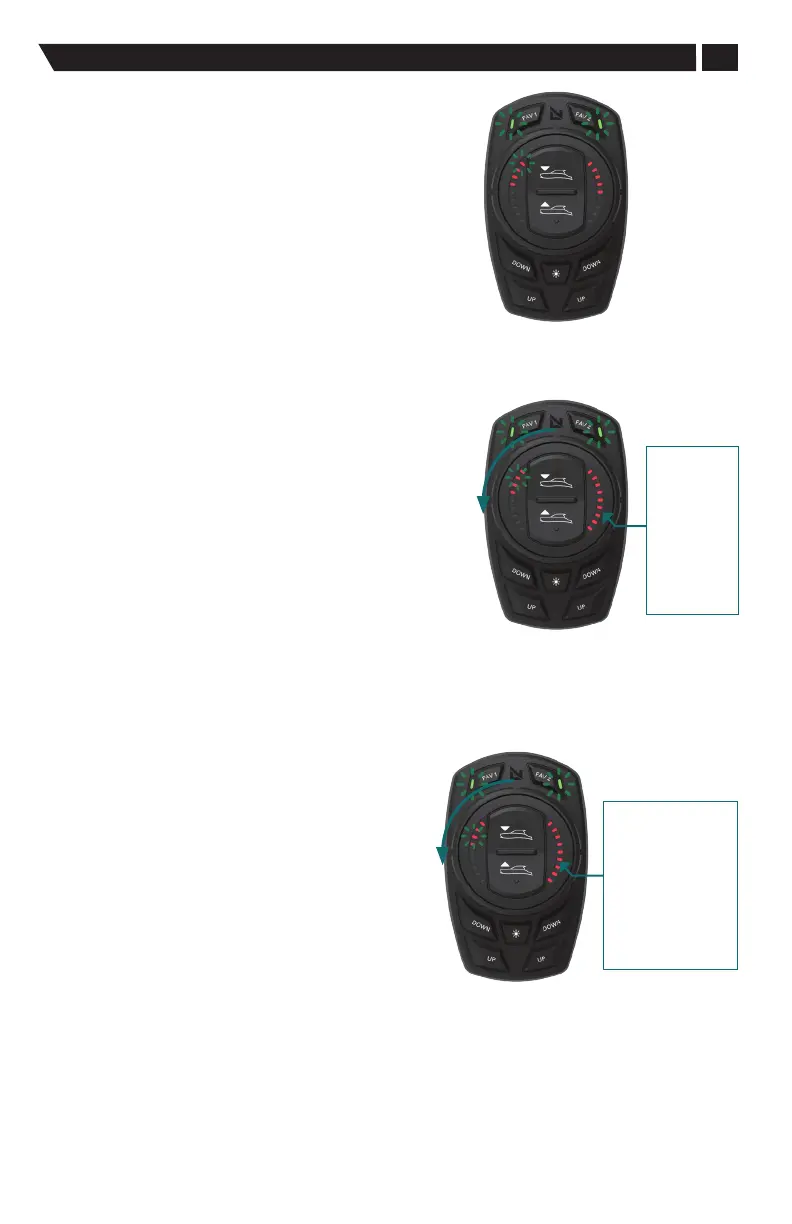

Calibration: 1. Actuator Rate of Travel
• Actuator rate of extension and retraction is set by the pitch
UP/DOWN button on the dial: 1 is slowest; 5 is fastest.
• This function sets the rate at which the actuators operate.
• Selected value will auto save when exiting the menu.
Adjusting Actuator
Rate of Travel
Calibration: 2. Holeshot Activation Speed
• While still in calibration mode, rotate dial
counterclockwise until two left side LEDs are lit to set
the speed at which the system enters holeshot mode.
• A “FAV 1” setting must be saved for the Holeshot mode
to function. This is the position that the actuators will
default to when the vessel completes the holeshot
sequence and is on plane.
• The chart to the right shows the speed value options
relative to the righthand LEDs.
• Selected value will auto save when exiting the menu.
Adjusting Vessel
Holeshot Activation Speed
LED's
1 = 3 mph
2 = 4 mph
3 = 5 mph
4 = 6 mph
5 = 7 mph
6 = 8 mph
7 = 9 mph
8 = 10 mph
9 = 11 mph
Calibration: 3. Holeshot Intensity
• While still in calibration mode, rotate dial
counterclockwise until three left side LEDs are
lit to set the percentage that both actuators will
deploy during the holeshot sequence.
• Each righthand LED corresponds to 11%
deployment during holeshot sequence.
• Use the pitch Up/Down button to set the right
hand LED value for % of actuator extension.
Note: A “FAV 1” setting must be saved for the
Holeshot mode to function. This is the position
that the actuators will default to when the vessel
completes the holeshot sequence and is on plane.
• Selected value will auto save when exiting the menu.
Adjusting Actuator
Holeshot Intensity
LED's
1 = 0 to 12.5%
2 = 13% to 24. 5%
3 = 25% to 37.5%
4 = 38% to 49.5%
5 = 50% to 62.5%
6 = 63% to 75.5%
7 = 76% to 88.5%
8 = 89% to 98%
9 = 99% to 100%
