LENCO Pro Control - Boat Centric Keypad Control-Manual Operation

6
lencomarine.com
Boat Centric Keypad Control

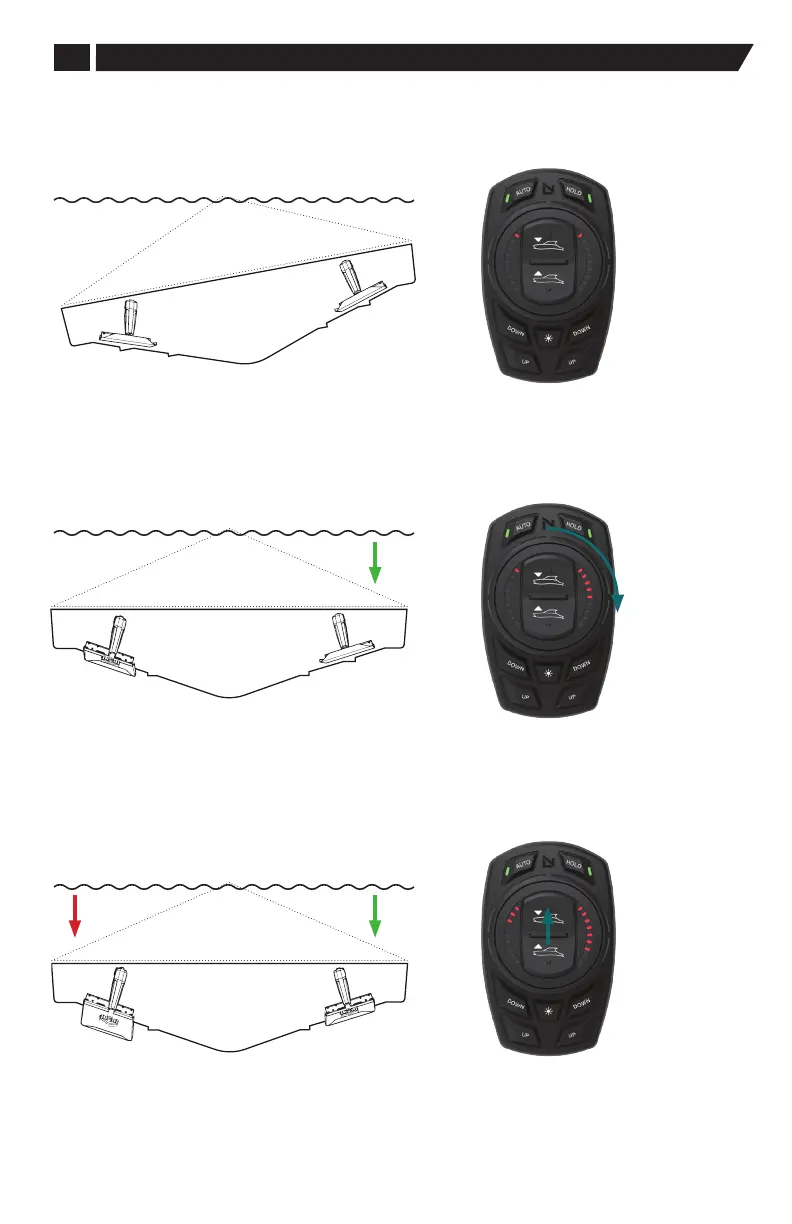

Boat Centric Keypad Control—Manual Operation
Starboard is too high.
Roll correction is needed.
*Keypad is in Manual Mode.
Roll control dial is rotated to starboard.
Starboard lowers to operator’s desired
roll position.
LED’s illustrate actuator extension of
port and starboard actuators.
Level roll is achieved but pitch of bow
is too high.
All down button is pressed.
Bow lowers evenly into water.
LED’s illustrate actuator extension of
port and starboard actuators.
Starting
Condition
Starting
Condition
Roll Corrected
Pitch Corrected
