Installation steps of the LCD panel

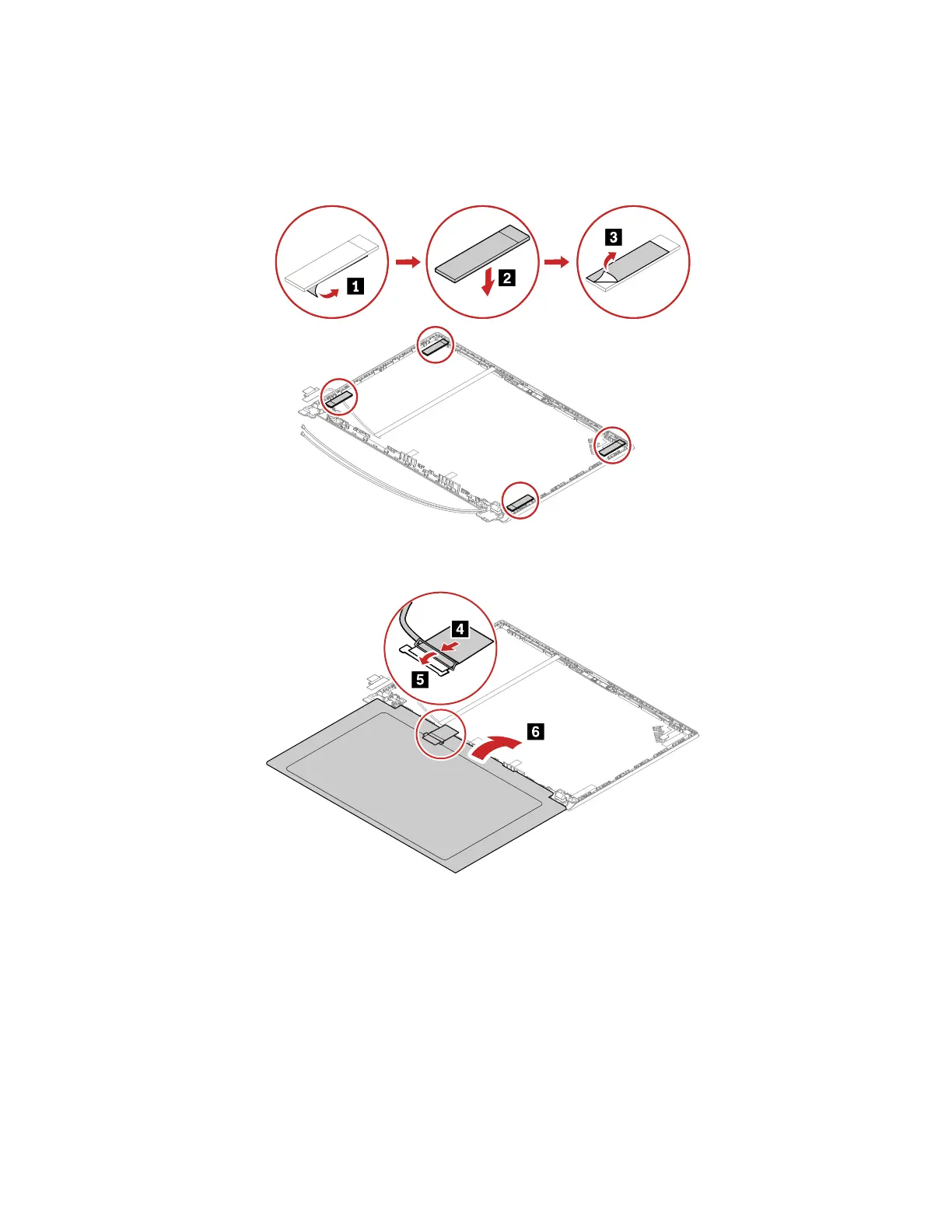

1. Peel off the release liners from one side of the new elastic adhesive tapes. Apply the tapes to the correct
locations. Peel off the release liners from the other side of the tapes. Ensure that four tapes are applied
correctly as shown.
2. Attach the LCD cable to the LCD panel as shown. Turn over the LCD panel to secure the LCD panel with
tapes.
