4.Installthetwoscrewstosecuretheretentiontabtotherearofthenewopticaldrive.Then,connectthe
signalcable1andthepowercable2totherearofthenewopticaldrive.

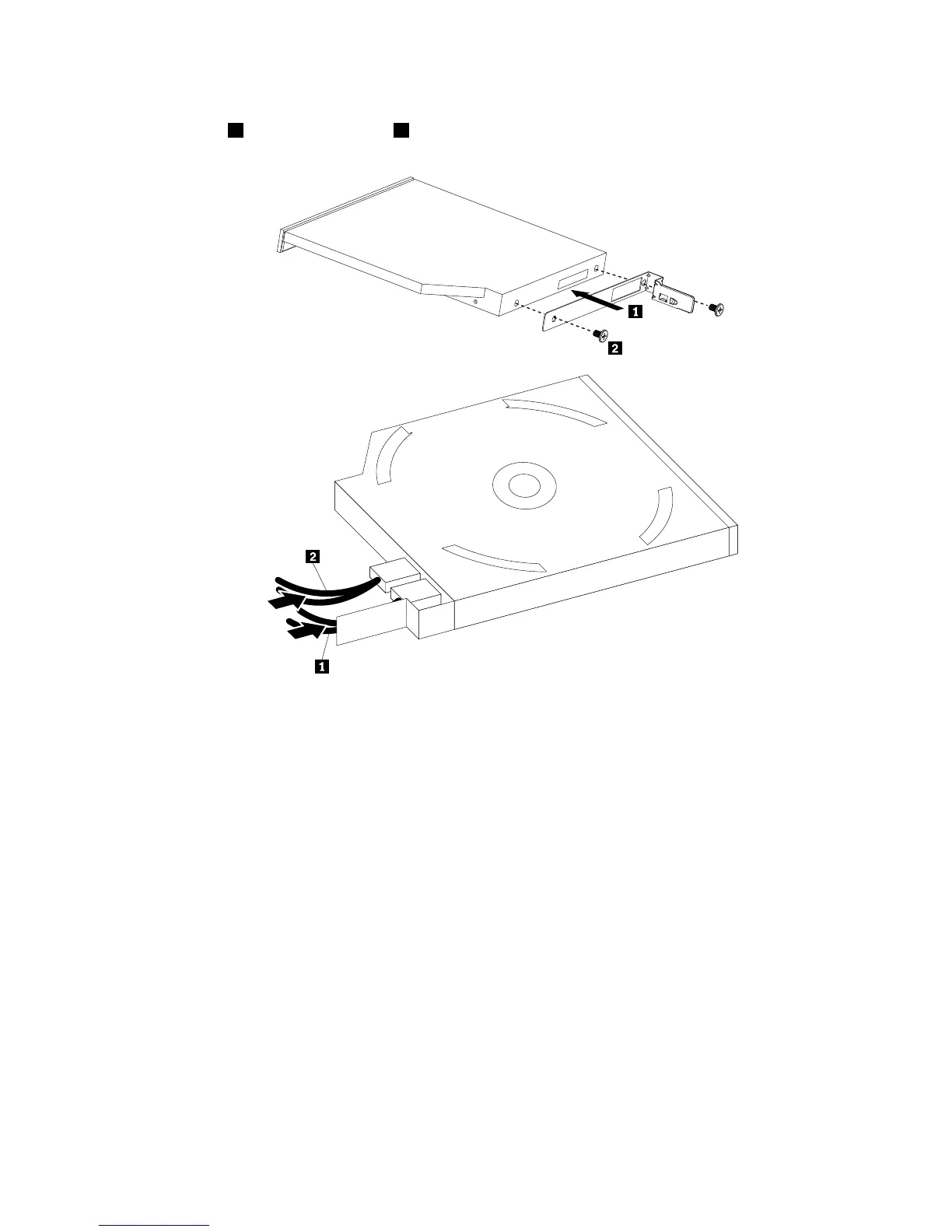

Figure14.Installingtheretentiontabandconnectingthecables
Chapter5.Installing,removing,orreplacinghardware29
