Notes:
•IfyouremovetheTPM,theTPMfunctionwillbeunavailable.
•UseanydocumentationthatcomeswiththeTPMandfollowthoseinstructionsinadditiontothe
instructionsinthistopic.
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
ToremovetheTPM,dothefollowing:
1.Removeallexternalmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,
disconnectallpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedto
theserver.
2.Prepareyourserver.See“Removingorextendingtheserverfromtherackcabinet”onpage55.
3.Removetheservercover.See“Removingtheservercover”onpage55.
4.LocatetheTPMonthesystemboardandthenremovetheTPMfromtheTPMconnectorbyliftingit
straightup.
Note:CarefullyhandletheTPMbyitsedges.

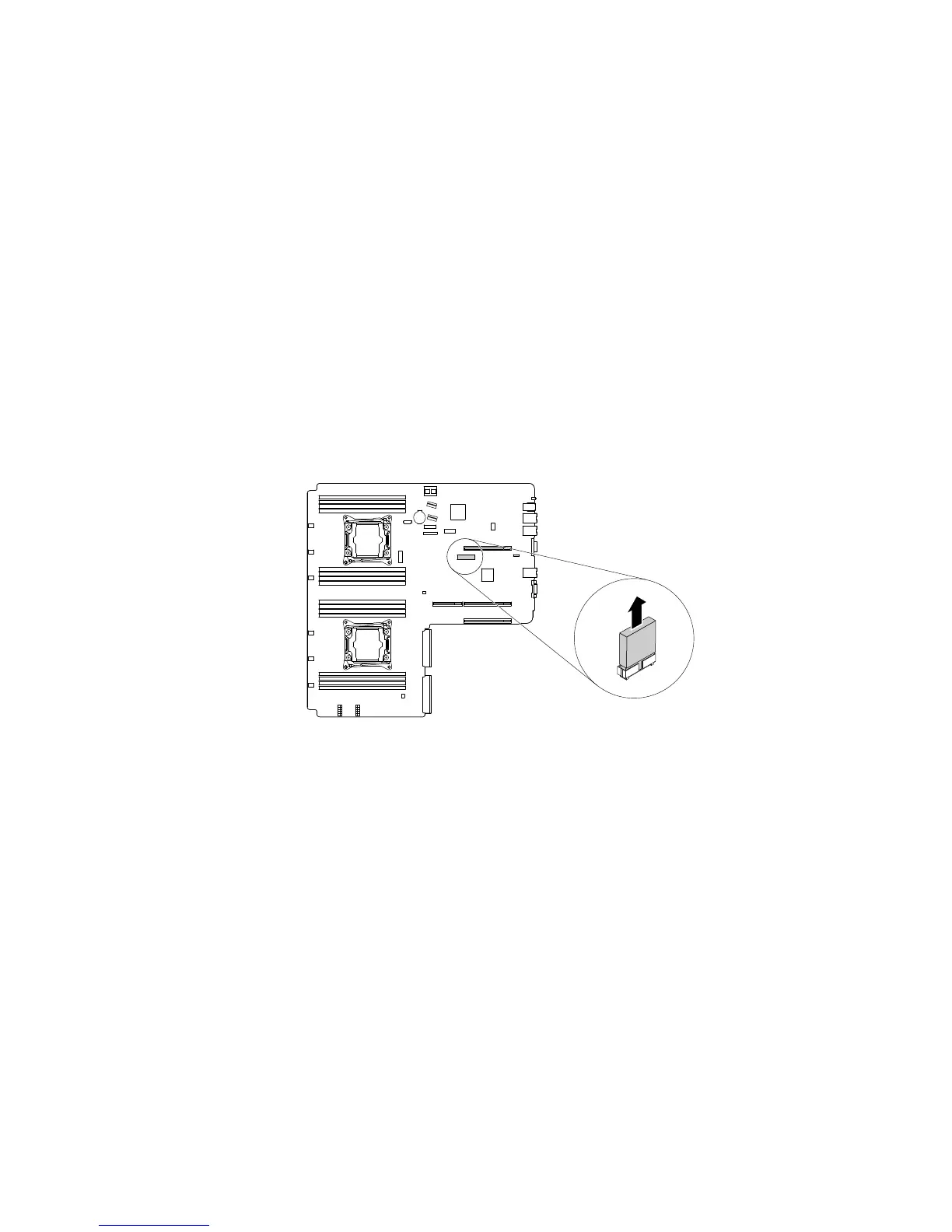

Figure31.RemovingtheTPM
5.IfyouareinstructedtoreturntheoldTPM,followallpackaginginstructionsanduseanypackaging
materialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage131
.
InstallingorremovingtheRAID110iupgradekey
TheLenovoThinkServerRAID110iupgradekey(hereinafterreferredtoasRAID110ikey)activatesRAID5
fortheonboardSATAsoftwareRAID.Asaresult,thecapabilityofthesystemboardisexpanded.Youcan
purchaseaRAID110ikeyfromLenovoandinstallittotheRAIDupgradekeyconnectoronthesystemboard.
ForalistofThinkServeroptions,goto:
http://lenovoquickpick.com/usa/home/thinkserver/rack-and-tower-server
Chapter6.Replacinghardware71
