ToremovetheSDmodule,dothefollowing:
1.Removeallexternalmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,
disconnectallpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedto
theserver.
2.Prepareyourserver.See“Removingorextendingtheserverfromtherackcabinet”onpage65.
3.Removetheservercover.See“Removingtheservercover”onpage65.
4.Removetherisercardassembly1.See“Replacingtherisercard”onpage81.
5.LocatetheSDmodule.See“Servercomponents”onpage25.
6.PivotthelatchasshownandlifttheSDmodulefromthesystemboard.
Note:CarefullyhandletheSDmodulebyitsedges.

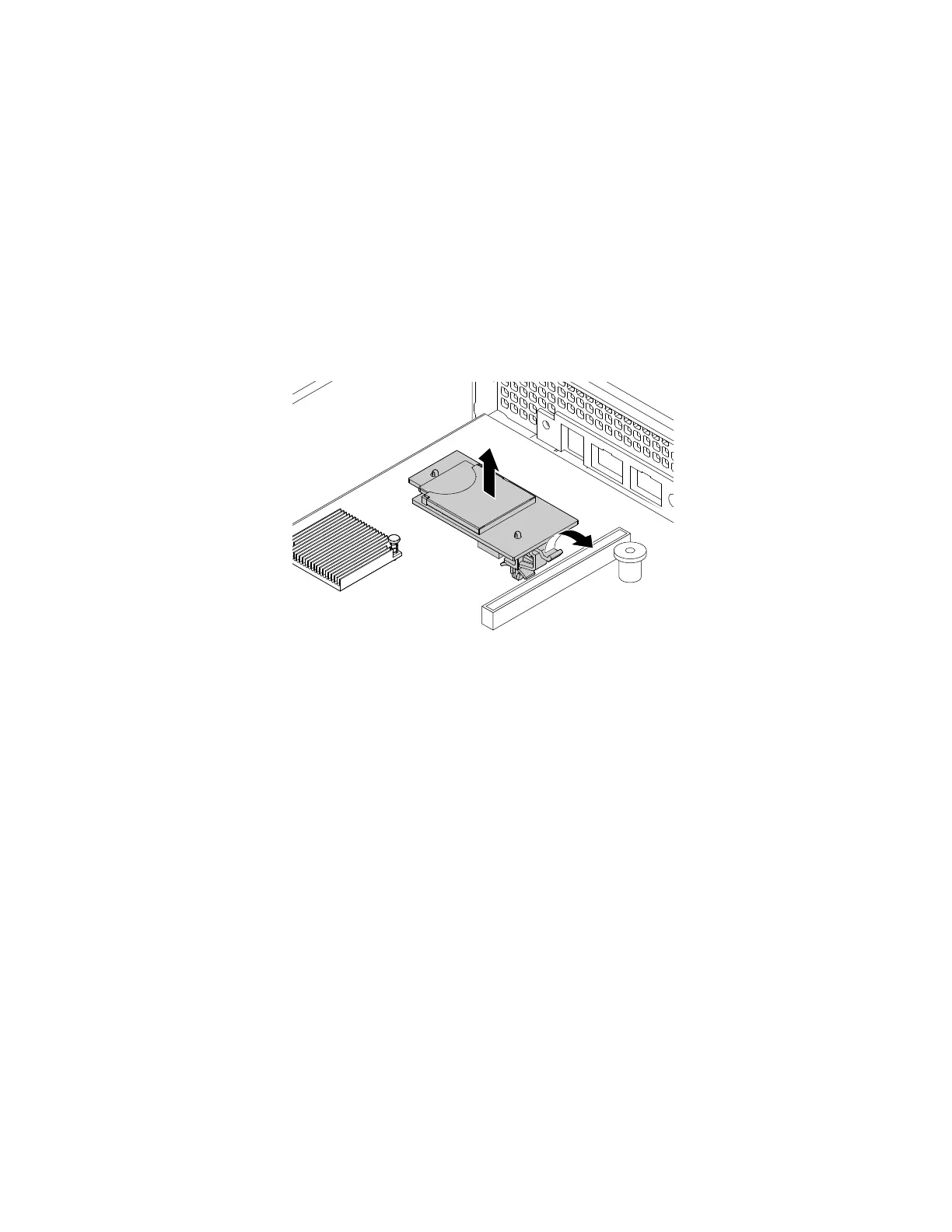

Figure85.RemovingtheSDmodule
7.PushtheSDcardinwardalittleuntilyouhearaclick.Then,releaseit.TheSDcardejects.Gentlyslide
thecardoutofthecardslot.
8.IfyouareinstructedtoreturntheoldSDmodule,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage178
.
InstallingorremovingtheThinkServerSystemManagerPremiummodule
TheThinkServerSystemManagerPremium(TSMPremium)offersconvenient,remoteKVMaccessand
controlthroughtheLANorInternet.YoucanusetheTSMPremiumtogainlocation-independentremote
accesstorespondtocriticalincidentsandtoundertakenecessarymaintenance.Therefore,workingasan
integratedsolutioninyourserver,theTSMPremiumprovidesanincreasedlevelofmanageabilityoverthe
basicservermanagementavailable.YoucanpurchaseaTSMpremiummodulefromLenovo.
ForalistofThinkServeroptions,goto:
http://lenovoquickpick.com/usa/home/thinkserver/rack-and-tower-server
