7.Gentlypressthemicroprocessorretainerasshowntoopenit.Ensurethatthesmallhandlesandthe
microprocessorretainerareinthefullyopenposition.

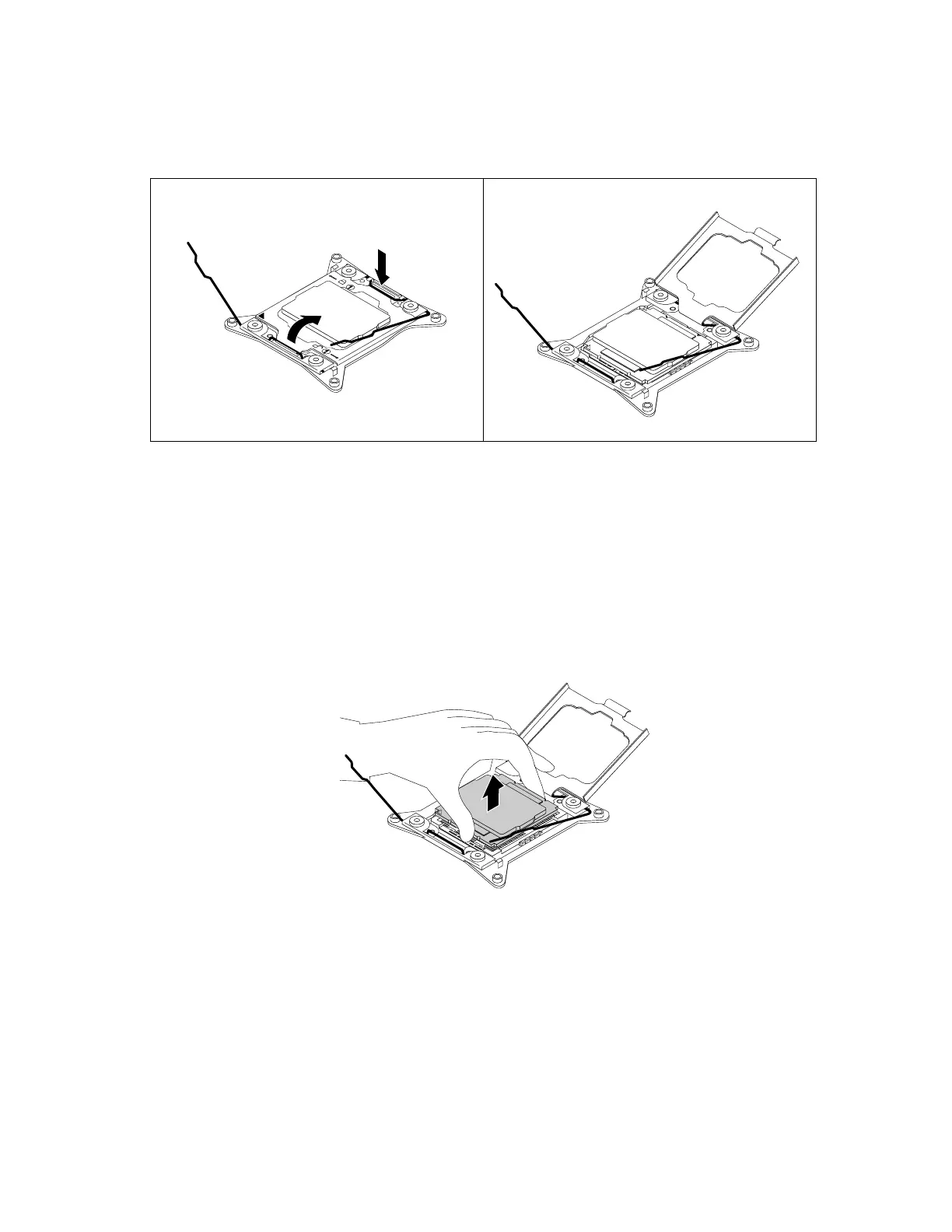

Figure102.Openingthemicroprocessorretainer
8.Touchonlytheedgesofthemicroprocessorandcarefullyliftitstraightupandoutofthemicroprocessor
socket.Placetheoldmicroprocessoronastatic-protectivesurface.
Notes:
•Donottouchthegoldcontactsonthebottomofthemicroprocessor.
•Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmustbe
keptascleanaspossible.
Figure103.Removingthemicroprocessor
9.Touchthestatic-protectivepackagethatcontainsthenewmicroprocessortoanyunpaintedsurfaceon
theoutsideoftheserver.Then,removethenewmicroprocessorfromthepackage.
132ThinkServerRD450UserGuideandHardwareMaintenanceManual
