6.Alignthetwoscrewholesinthedrivewiththecorrespondingholesinthedriveadapter.Then,installthe
twoscrewstosecurethedrivetothedriveadapter.

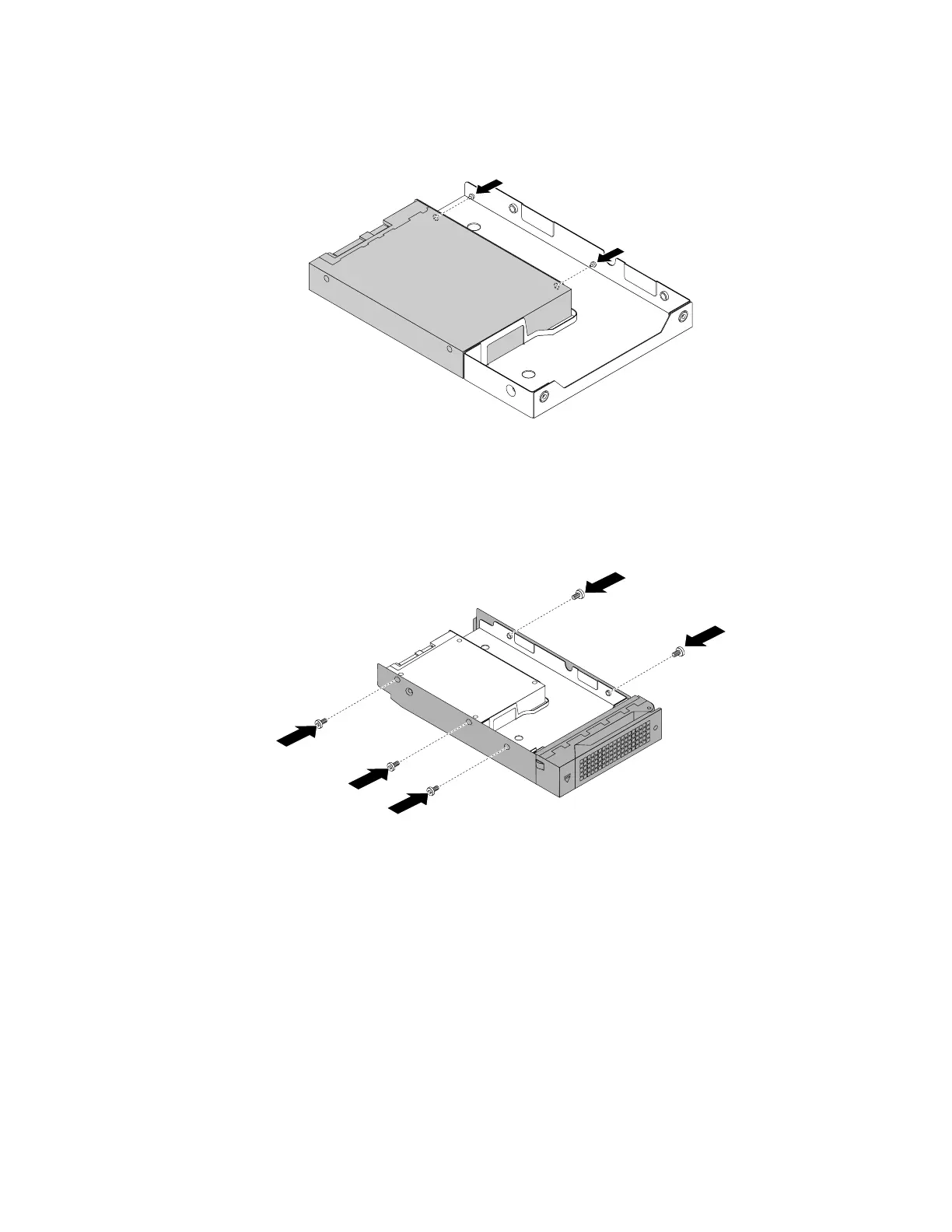

Figure123.Installingthescrewstosecurethedrivetothedriveadapter
7.Positionthedriveadapterandthedriveintothe3.5-inchdrivebracket.Alignthescrewholesinthedrive
adapterandthedrivewiththecorrespondingholesinthebracket.Then,installthescrewstosecure
thedriveadapterandthedriveintothebracket.
Figure124.Installingthescrewstosecurethedriveadapterandthedrivetothebracket
Chapter6.Replacinghardware145
