ThinkServerRAID720ixAnyRAIDAdapter
TheLenovoThinkServerRAID720ixAnyRAIDAdapterprovidesadvancedSATA/SAShardwareRAID
functions.Theadapterisusedinservermodelssupportingtheinternaltapedrive.Thefollowingillustration
showstheconnectorsontheadapter.

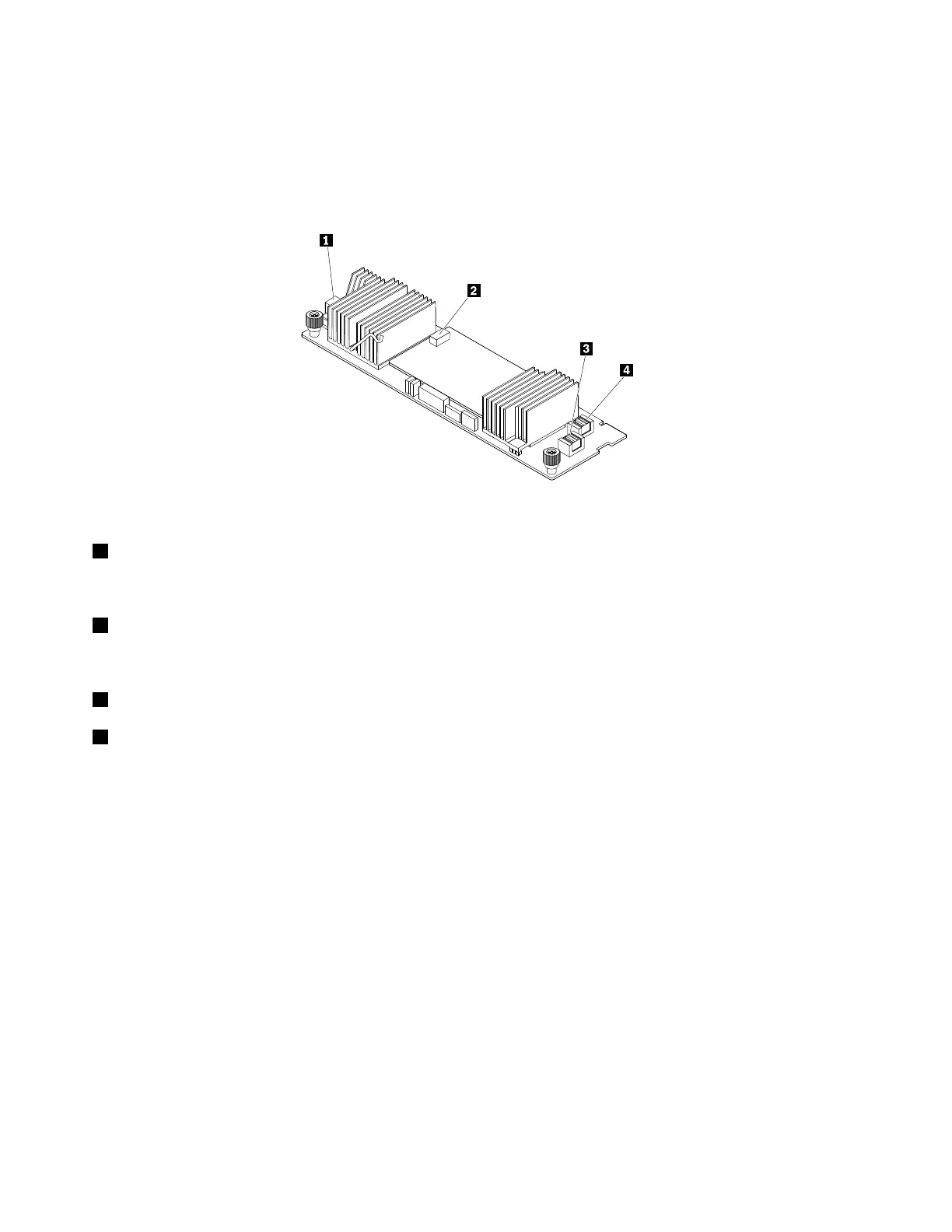

Figure14.ThinkServerRAID720ixAnyRAIDAdapter
1SATAconnector
UsedtoconnecttheSATAsignalcablefromtheinternaltapedriveifoneisinstalled.
2ThinkServerRAIDSuperCapacitorModuleconnector
UsedtoconnecttotheThinkServerRAIDSuperCapacitorModule.See“Servercomponents”onpage25.
3PCIE0connector
4PCIE1connector
UsedtoconnecttotheAnyRAIDconnector0–1onthesystemboard.See“Systemboardcomponents”
onpage41.
