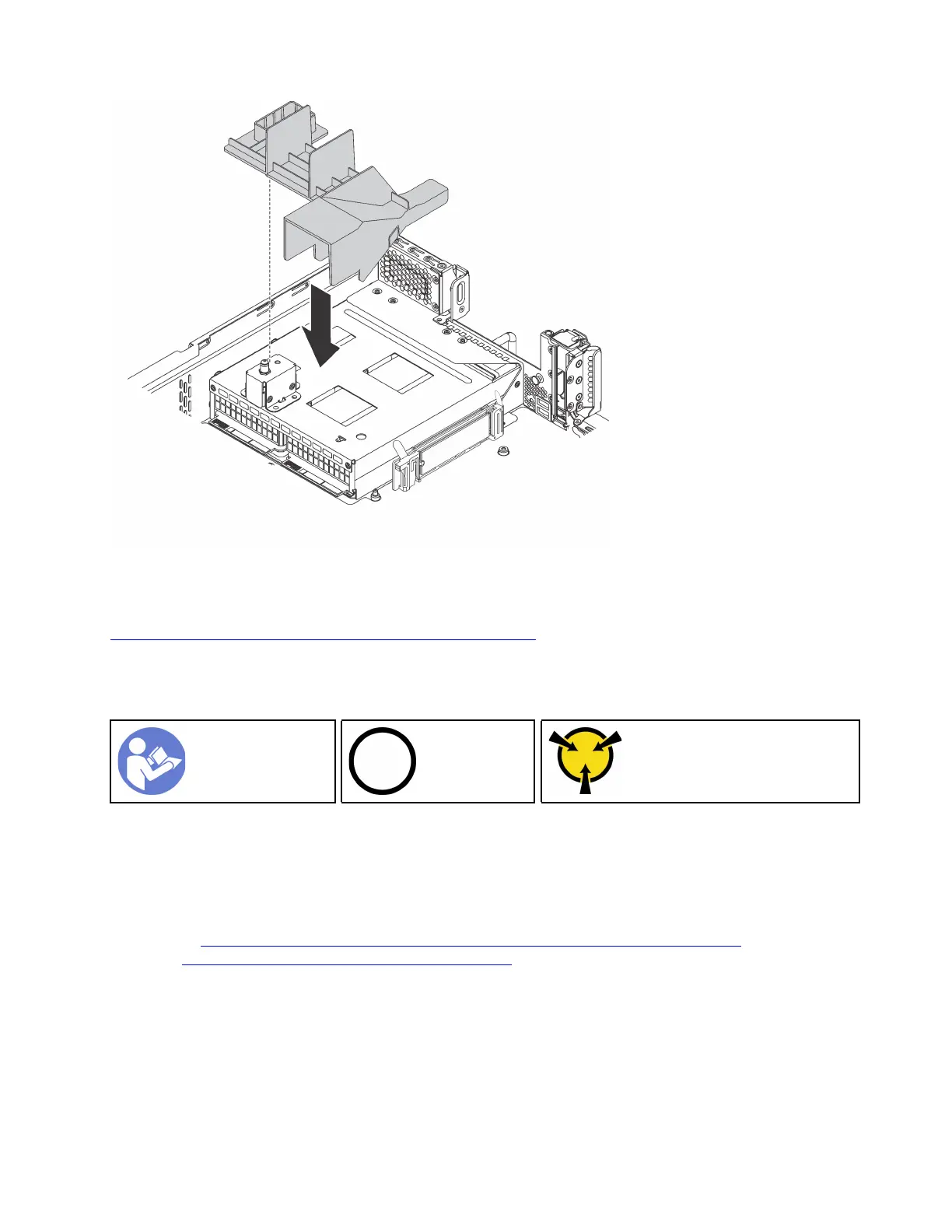

Figure 47. M.2 drive air baffle installation
After installing the M.2 drive, M.2 backplane and the air baffle, use the Lenovo XClarity Provisioning Manager
to configure the RAID. For more information, see:
http://sysmgt.lenovofiles.com/help/topic/LXPM/RAID_setup.html
Adjust the retainer on the M.2 backplane
Use this information to adjust the retainer on the M.2 backplane.
“Read the
installation
Guidelines” on
page 46
“Power off
the server
for this task”
on page 90
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 48
Before adjusting the retainer on the M.2 backplane, locate the correct keyhole that the retainer should be
installed into to accommodate the particular size of the M.2 drive you wish to install.
To adjust the retainer on the M.2 backplane, complete the following steps:
Watch the procedure. A video of the adjustment process is available:
• YouTube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-C9jFjZnXQ6AmTXaIdX6_HJ
• Youku: http://list.youku.com/albumlist/show/id_50429987
Chapter 3. Server hardware setup 77
