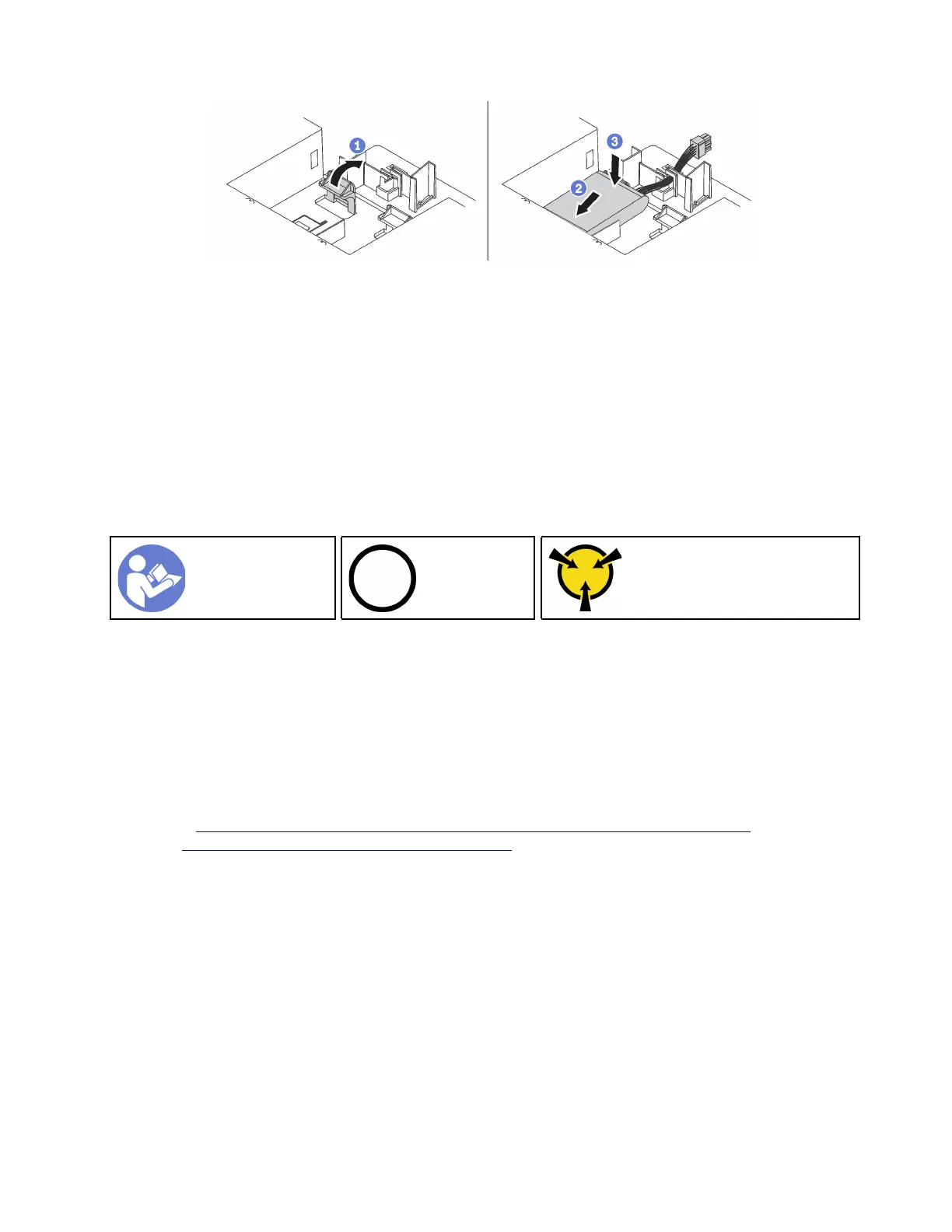

Figure 113. RAID super capacitor module installation
Step 1. Gently press and hold the tab on the air baffle as shown.
Step 2. Insert the RAID super capacitor module into the holder on the air baffle.
Step 3. Press down the RAID super capacitor module to install it into the holder.
After installing the RAID super capacitor module, connect the RAID super capacitor module to a RAID
adapter with the extension cable that comes with the RAID super capacitor module.
Install the top cover
Use this information to install the top cover.
“Read the
installation
Guidelines” on
page 126
“Power off
the server for
this task” on
page 194
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 127
Before you install the top cover:
1. Ensure that all cables, adapters, and other components are installed and seated correctly and that you
have not left loose tools or parts inside the server.
2. Ensure that all internal cables are connected and routed correctly. See “Internal cable routing” on page
35.
To install the top cover, complete the following steps:
Watch the procedure. A video of the installation process is available:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-A25P7vBoGa_wn7D7XTgDS_
• Youku: http://list.youku.com/albumlist/show/id_50483444
