Step 1. Use the key to unlock the security bezel to the open position.

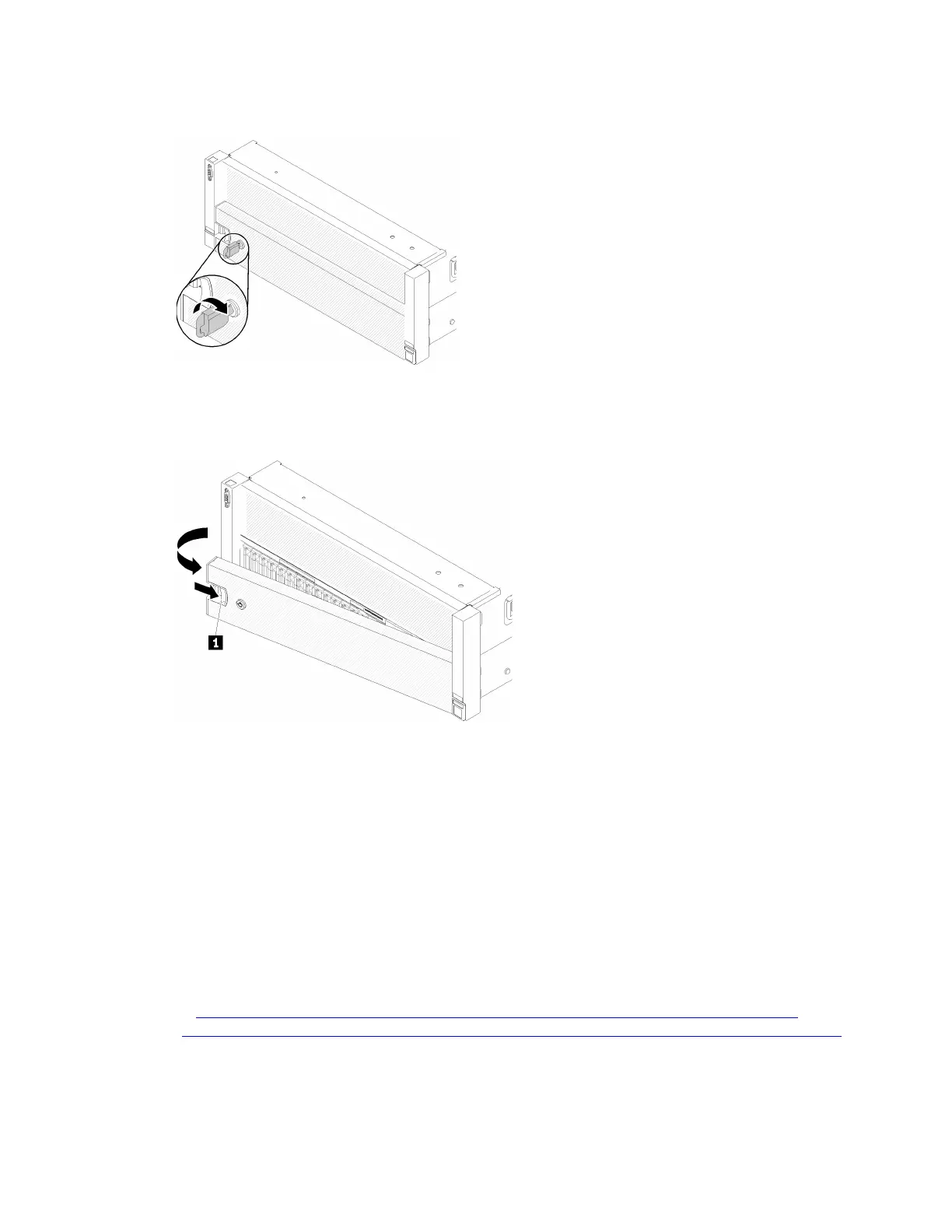

Figure 121. Unlocking the security bezel
Step 2. Press the release latch and pivot the security bezel outward to remove it from the chassis.
Figure 122. Security bezel removal
Install the security bezel
Use this procedure to install the security bezel.
Before installing the security bezel:
1. Read the safety information and installation guidelines (see “Safety” on page iii and “Installation
Guidelines” on page 59).
2. If you have removed the rack handles, reinstall it (see ThinkSystem SR860 Rack Installation Guide).
To install the security bezel, complete the following steps:
Watch the procedure. A video of the process is available:
• Youtube:
https://www.youtube.com/watch?v=pIb0bIyfkDY&=PLYV5R7hVcs-Ak9fT8QAx8fLbEivizjRtp
• Youku: http://v.youku.com/v_show/id_XMzMyODU3NTY2NA==.html?spm=a2hzp.8253876.0.0&f=51276390
Step 1. Carefully insert the tabs on the security bezel into the slots on the right rack handle. Then, press
and hold the release latch, and pivot the security bezel inward until the other side clicks into place.
Chapter 3. Hardware replacement procedures 127
