Lenovo ThinkSystem SR860 - System-Board Connectors

System-board connectors
Use this information to locate the system-board internal connectors.

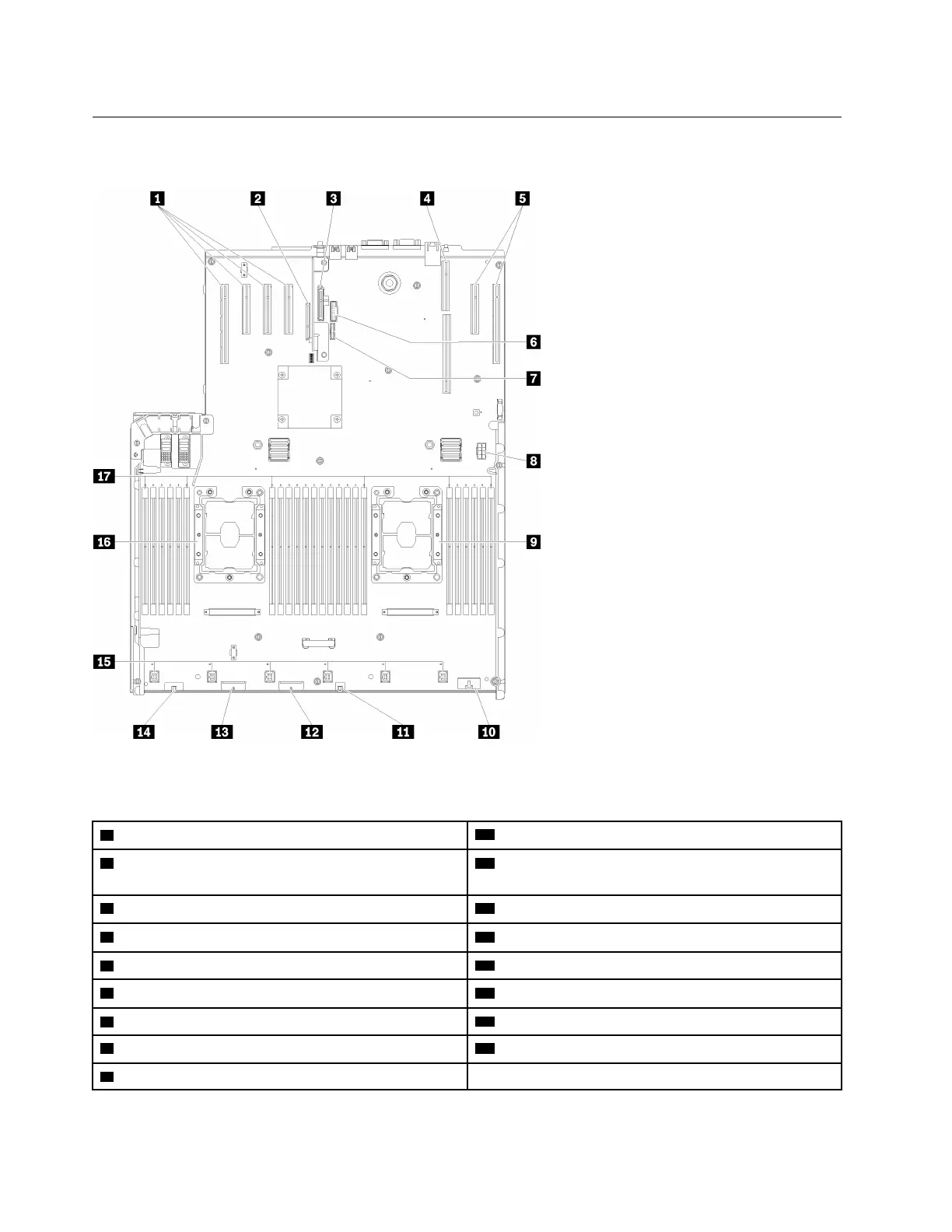

Figure 12. System-board connectors
Table 8. System-board connectors
1 PCIe slot 13, 12, 11, 10
10 Front operator panel connector
2 PCIe slot 9 (LOM adapter) 11 USB 1 (USB 2.0 with Lenovo XClarity Controller
management)
3 PCIe slot 8 (M.2 backplane)
12 Backplane connector 2
4 PCIe slot 5-7 (PCIe riser card 1)
13 Backplane connector 1
5 PCIe slot 4, 3 14 Front VGA connector
6 USB 2 (USB 3.0)
15 Fan connector 1-6
7 TCM module
16 Processor 1
8 Auxiliary power connector 17 DIMM slot 1-6, 7-18, 19-24
9 Processor 2
24 ThinkSystem SR860 Maintenance Manual
