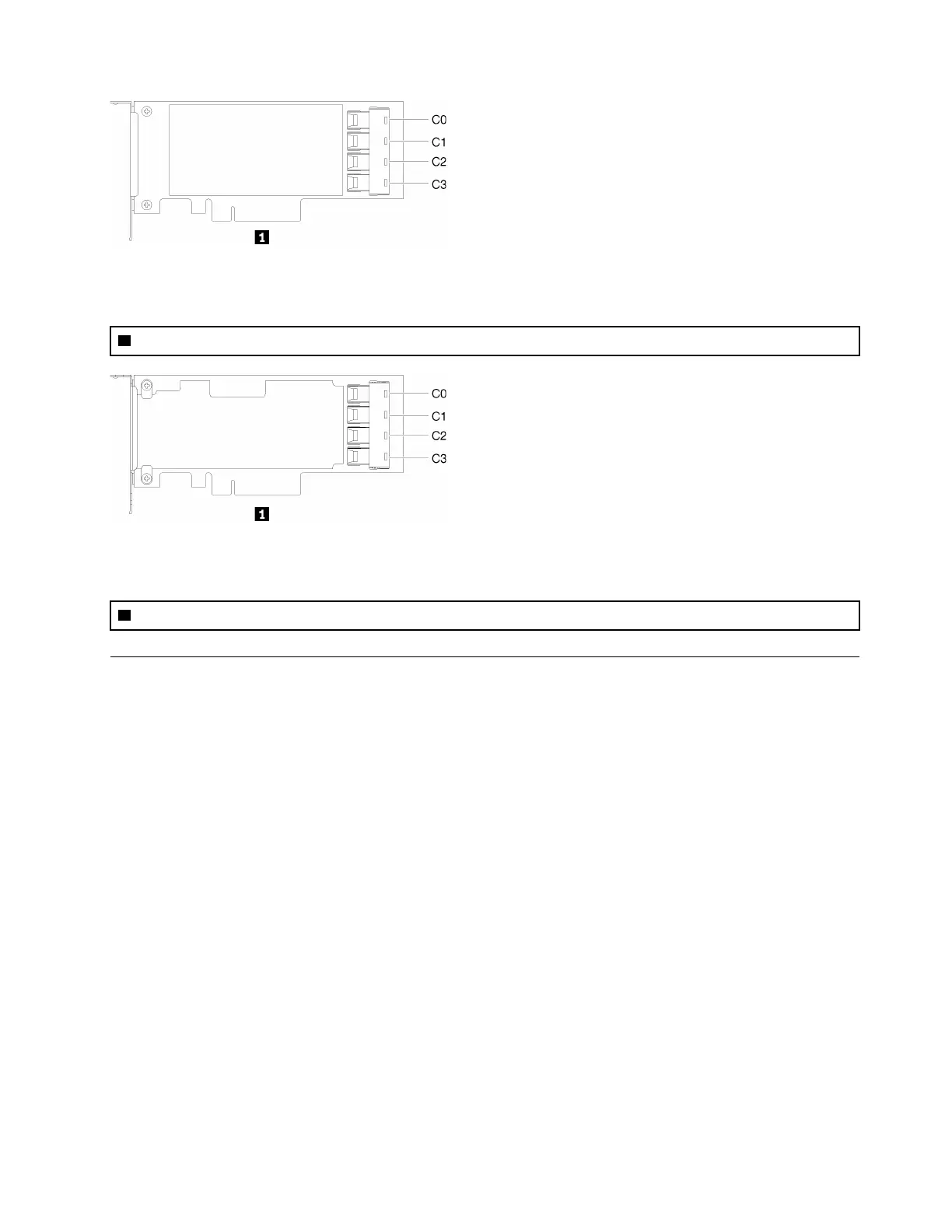

Figure 27. Connectors on SATA/SAS RAID adapter (16i)
Table 25. SATA/SAS RAID adapter (16i)
1 SATA/SAS RAID adapter (16i) with four SATA/SAS connectors (C0, C1, C2, C3)
Figure 28. Connectors on PCIe switch card
Table 26. PCIe switch card
1 PCIe switch card with four SATA/SAS connectors (C0, C1, C2, C3)
Internal cable routing
This section provides information about routing the cables when you install components in the server.
For more information about the requirements for cables and connecting devices, see the documentation that
comes with these devices.
Guideline for cable routing for 2.5-inch drives
General guideline for cable routing for 2.5-inch drives.
1. Make sure all the signal cables go through the cable guides.
Chapter 2. Server components 35
