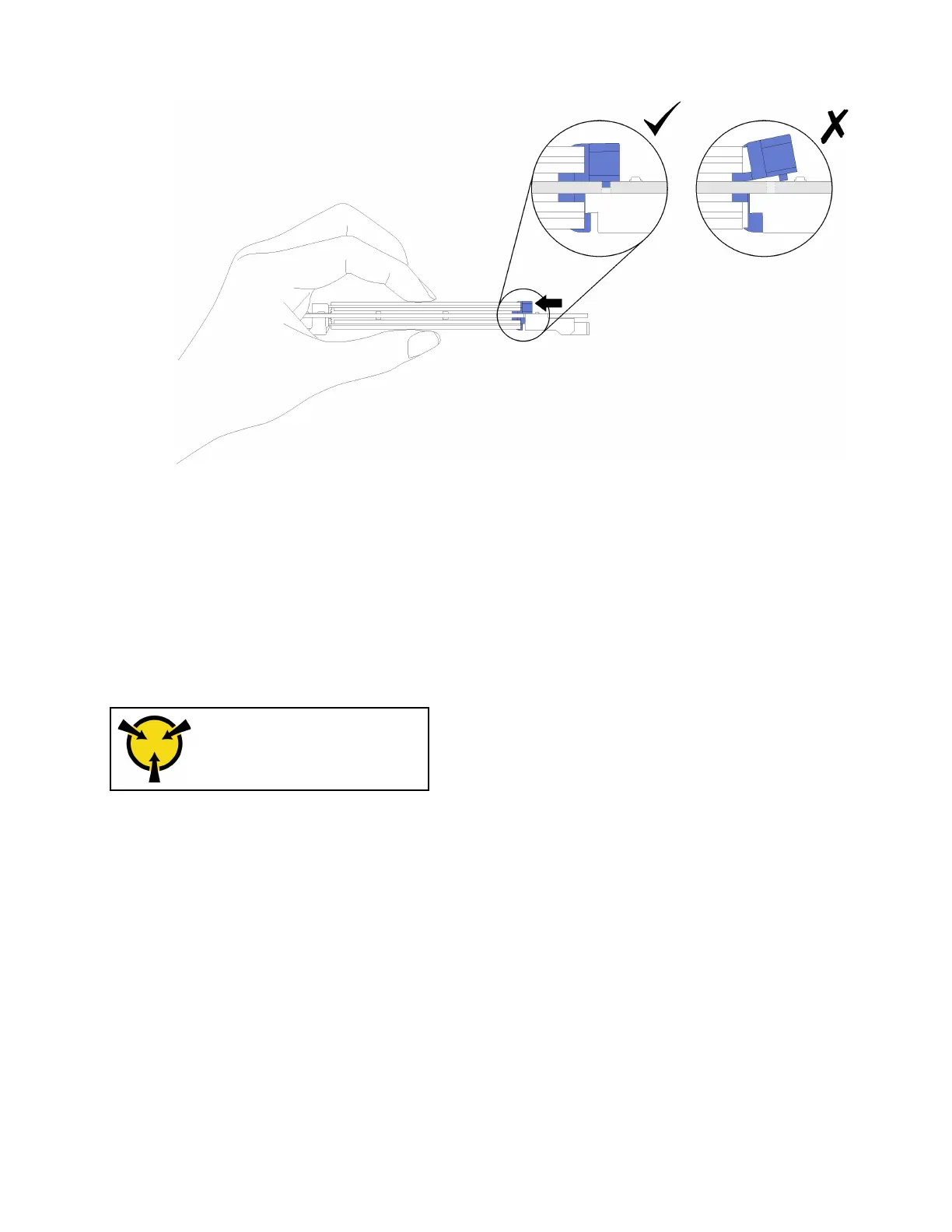

Figure 80. M.2 drive installation with the retainers in place
After installing an M.2 drive in the M.2 backplane, see “Install the M.2 backplane” on page 85 to complete
installation.
Memory module replacement
Use this procedure to remove or install a memory module.
Remove a memory module
Use this procedure to remove a memory module.
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 61
Attention: Memory modules are sensitive to static discharge and require special handling. In addition to the
standard guidelines for Handling static-sensitive devices:
• Always wear an electrostatic-discharge strap when removing or installing memory modules. Electrostatic-
discharge gloves can also be used.
• Never hold two or more memory modules together so that they touch. Do not stack memory modules
directly on top of each other during storage.
• Never touch the gold memory module connector contacts or allow these contacts to touch the outside of
the memory-module connector housing.
• Handle memory modules with care: never bend, twist, or drop a memory module.
Before removing a memory module:
1. Read the safety information and installation guidelines (see “Safety” on page iii and “Installation
Guidelines” on page 59).
Chapter 3. Hardware replacement procedures 89
