x8/x16 ML2 PCIe FH Riser Assembly

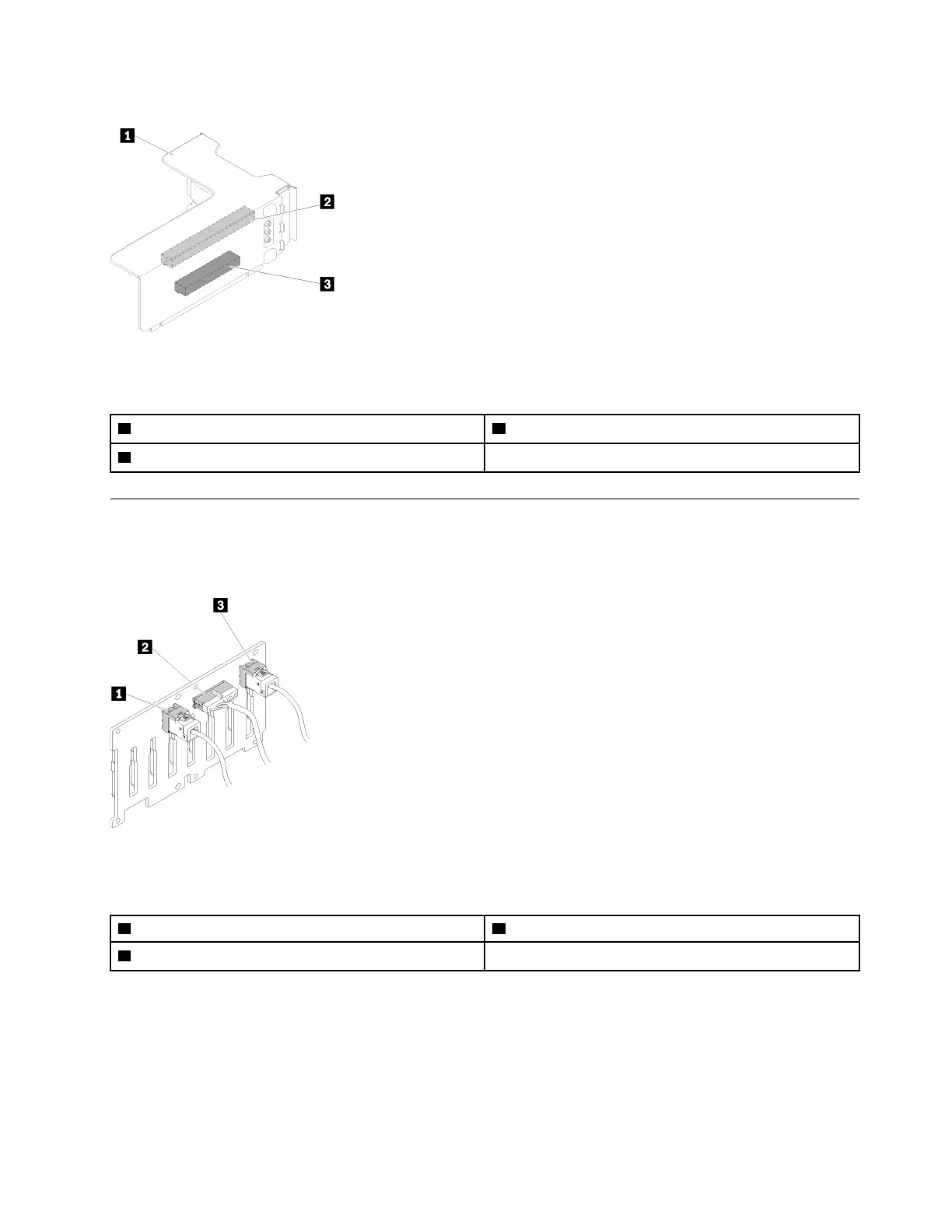

Figure 23. x8/x16 ML2 PCIe FH Riser Assembly
Table 21. Components of x8/x16 ML2 PCIe FH Riser Assembly
1 PCIe full-height riser cage 3 Customized slot for ML2 adapter (slot 7)
2 PCI Express 3.0 x8 (slot 5)
2.5-inch drive backplanes
Use this information to locate the connectors on the optional 2.5-inch drive backplanes.
2.5-inch SATA/SAS 8-bay backplane
Figure 24. 2.5-inch SATA/SAS 8-bay backplane
Table 22. Connectors on 2.5-inch SATA/SAS 8-bay backplane
1 SATA/SAS connector 1 3 SATA/SAS connector 0
2 Power/configuration cable connector
2.5-inch SATA/SAS 8-bay backplane comes with:
• Eight SATA/SAS drive connectors with bay numbers of 0-7 or 8-15, depending on the location installed.
• One power/configuration connector
• Two SATA/SAS connectors (0, 1)
Chapter 2. Server components 33
