4. With SATA/SAS RAID adapter (8i)

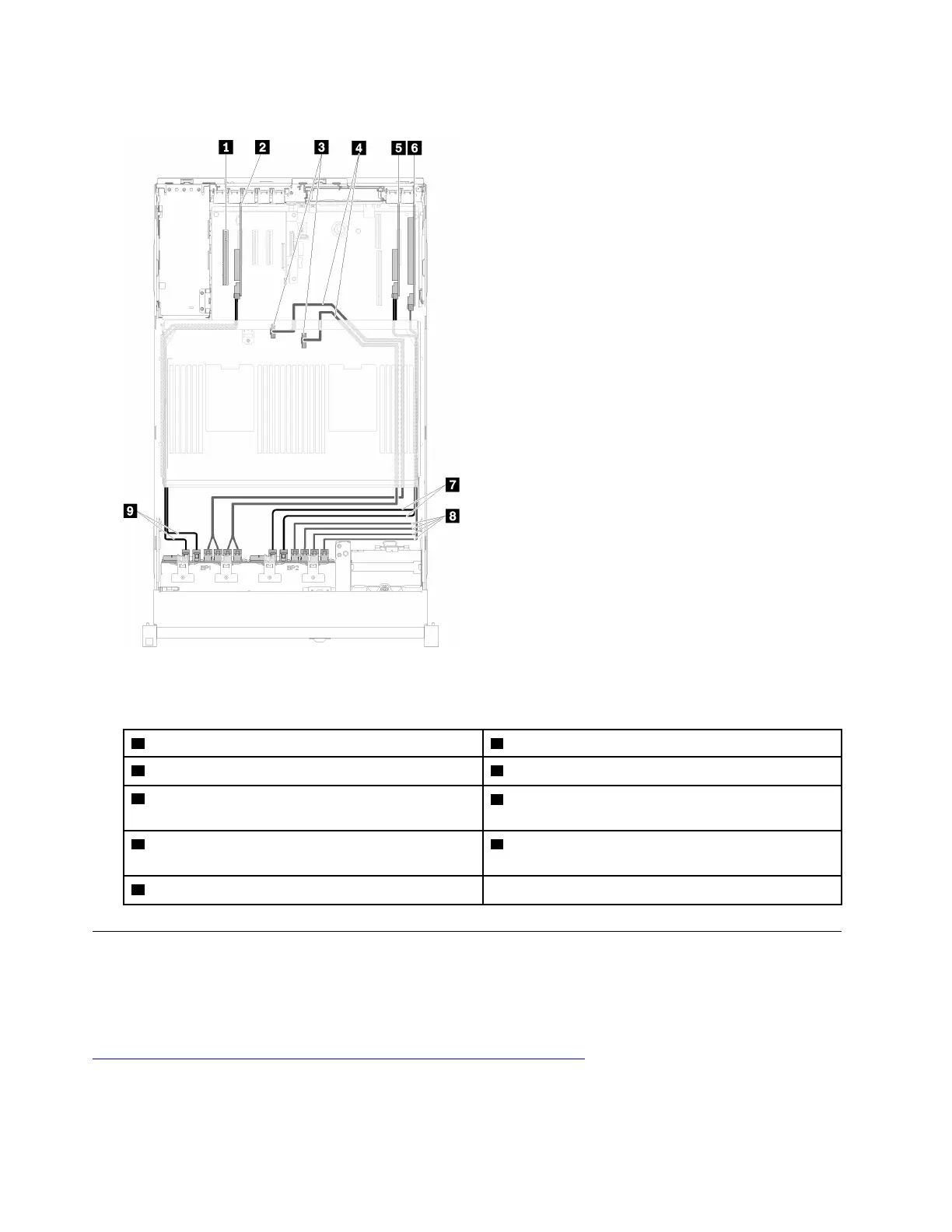

Figure 47. Cable routing, AnyBay backplane + AnyBay backplane
Table 43. Cables and adapters for routing
1 4U PCIe riser card 6 PCIe switch card
2 SATA/SAS RAID adapter (8i) 7 SATA/SAS signal cables (720 mm)
3 NVMe connectors on the processor and memory
expansion tray
8 NVMe signal cables for PCIe switch card
4 Direct NVMe signal cables for processor and
memory expansion tray
9 SATA/SAS signal cables (720 mm)
5 SATA/SAS RAID adapter (8i)
Parts list
Use the parts list to identify each of the components that are available for your server.
For more information about ordering the parts shown in Figure 48 “Server components” on page 55:
https://datacentersupport.lenovo.com/products/servers/thinksystem/sr860
Note: Depending on the model, your server might look slightly different from the illustration.
54
ThinkSystem SR860 Maintenance Manual
