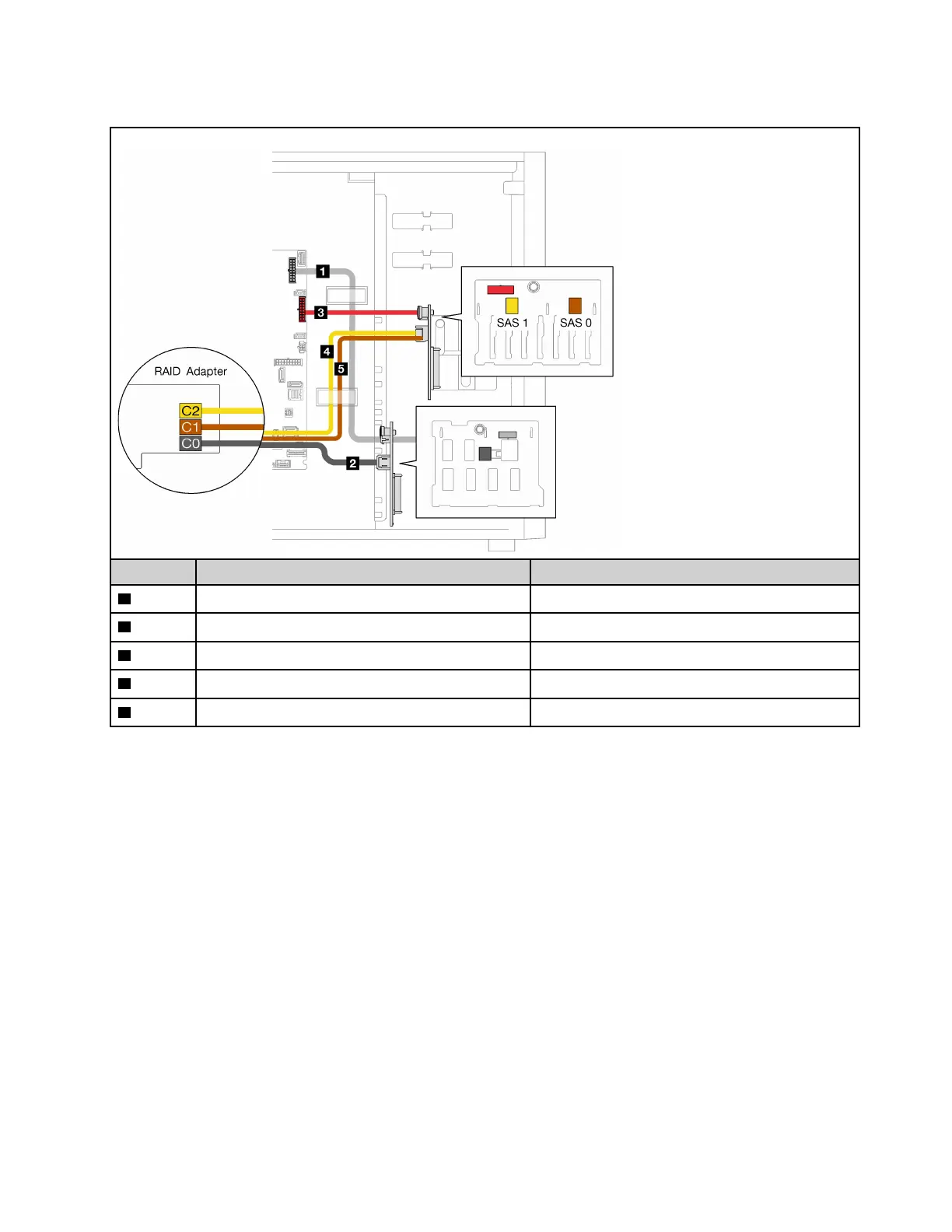

One 9350-16i RAID adapter
From To
1
Lower backplane power connector Backplane 1 power connector
2
Lower backplane SAS/SATA connector C0
3
Upper backplane power connector Backplane 2 power connector
4
Upper backplane SAS/SATA 1 connector C2
5
Upper backplane SAS/SATA 0 connector C1
Chapter 3. Internal cable routing 83
