4. Flex both sides of the bracket to remove the 3.5-inch storage drive from the bracket.

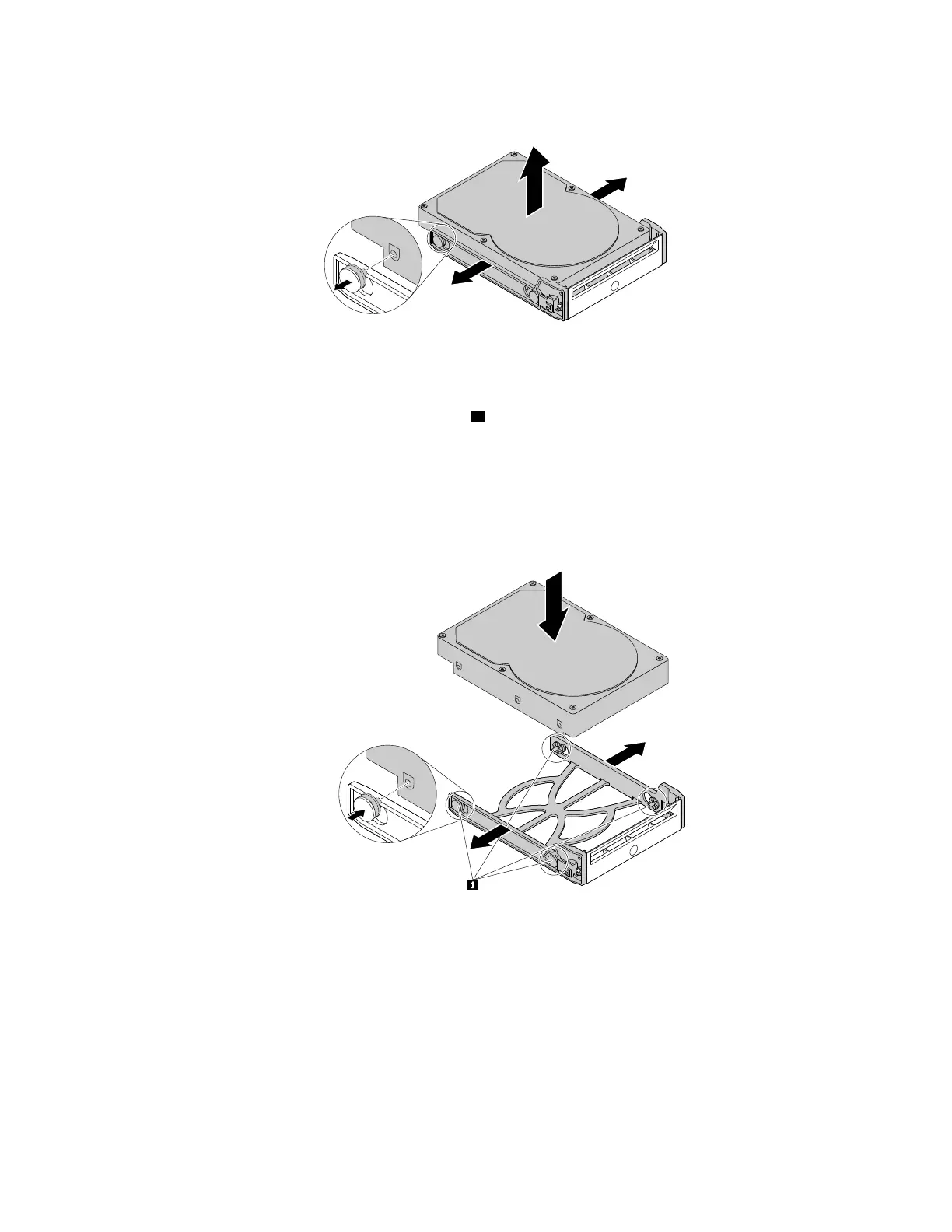

Figure 57. Removing the 3.5-inch storage drive from the bracket
5. To install a new 3.5-inch storage drive into the front-access storage enclosure, do the following:
a. Flex both sides of the bracket and align pins
1 on the bracket with the corresponding holes in the
new 3.5-inch storage drive.
Notes:
• Ensure that the circuit board faces downward and the connectors face toward the rear of the
bracket.
• Do not touch the circuit board on the storage drive.
Figure 58. Installing the 3.5-inch storage drive into the bracket
Chapter 9. Hardware removal and installation 121
