b. Push the tab of the plastic 3.5-inch storage-drive bracket as shown and pull the tab outward to
remove the storage drive from the storage-drive bay.

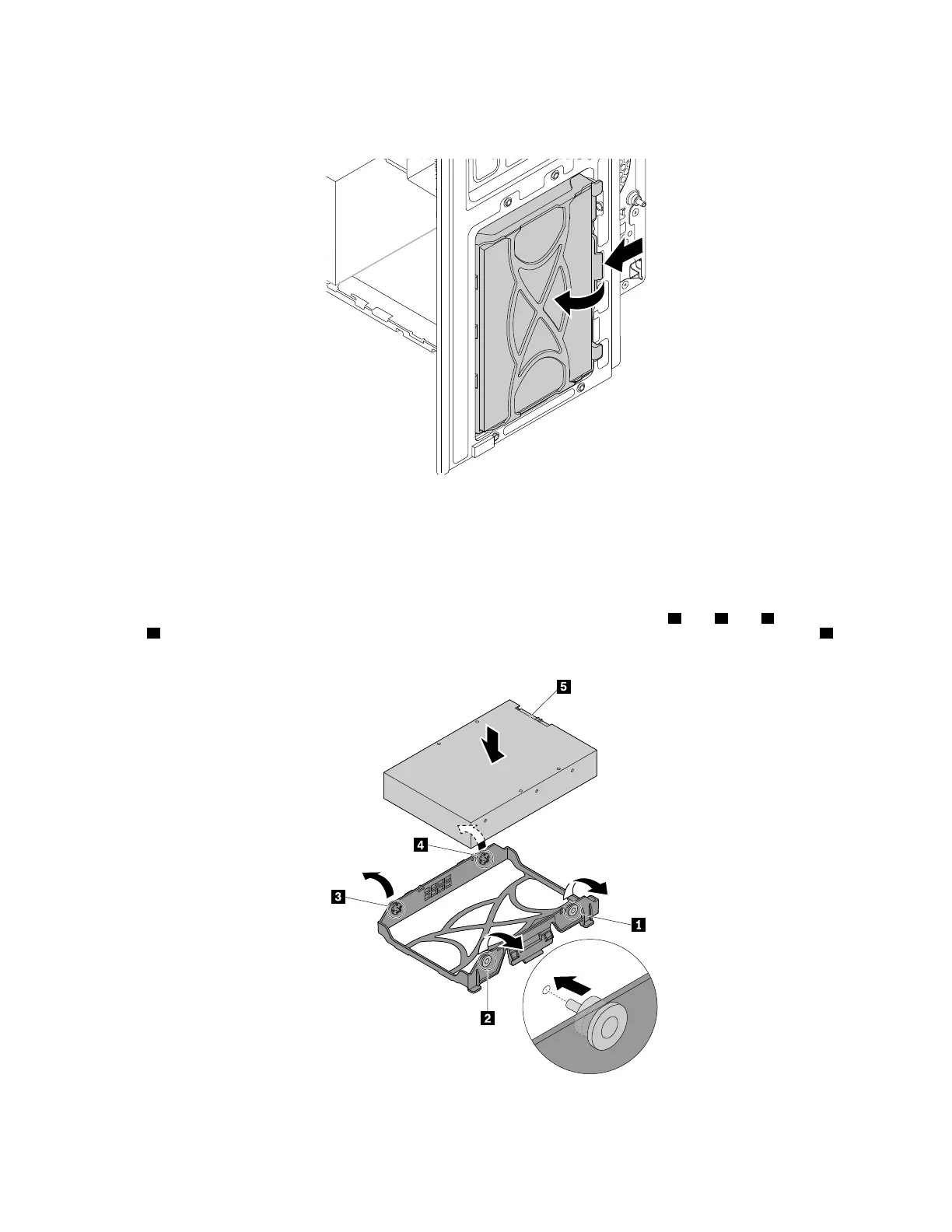

Figure 87. Removing the storage drive
c. Flex the sides of the bracket to remove the storage drive from the bracket.
4. To install the 3.5-inch storage drive, do the following:
a. Pull the handle of the plastic 3.5-inch storage-drive bracket to remove it from the storage-drive bay.
b. To install a new storage drive into the bracket, flex the bracket and align pin
1 , pin 2 , pin 3 , and pin
4 on the bracket with the corresponding holes in the storage drive. Do not touch the circuit board 5
on the storage drive.
Figure 88. Installing the storage drive into the bracket
136 P330 Hardware Maintenance Manual
