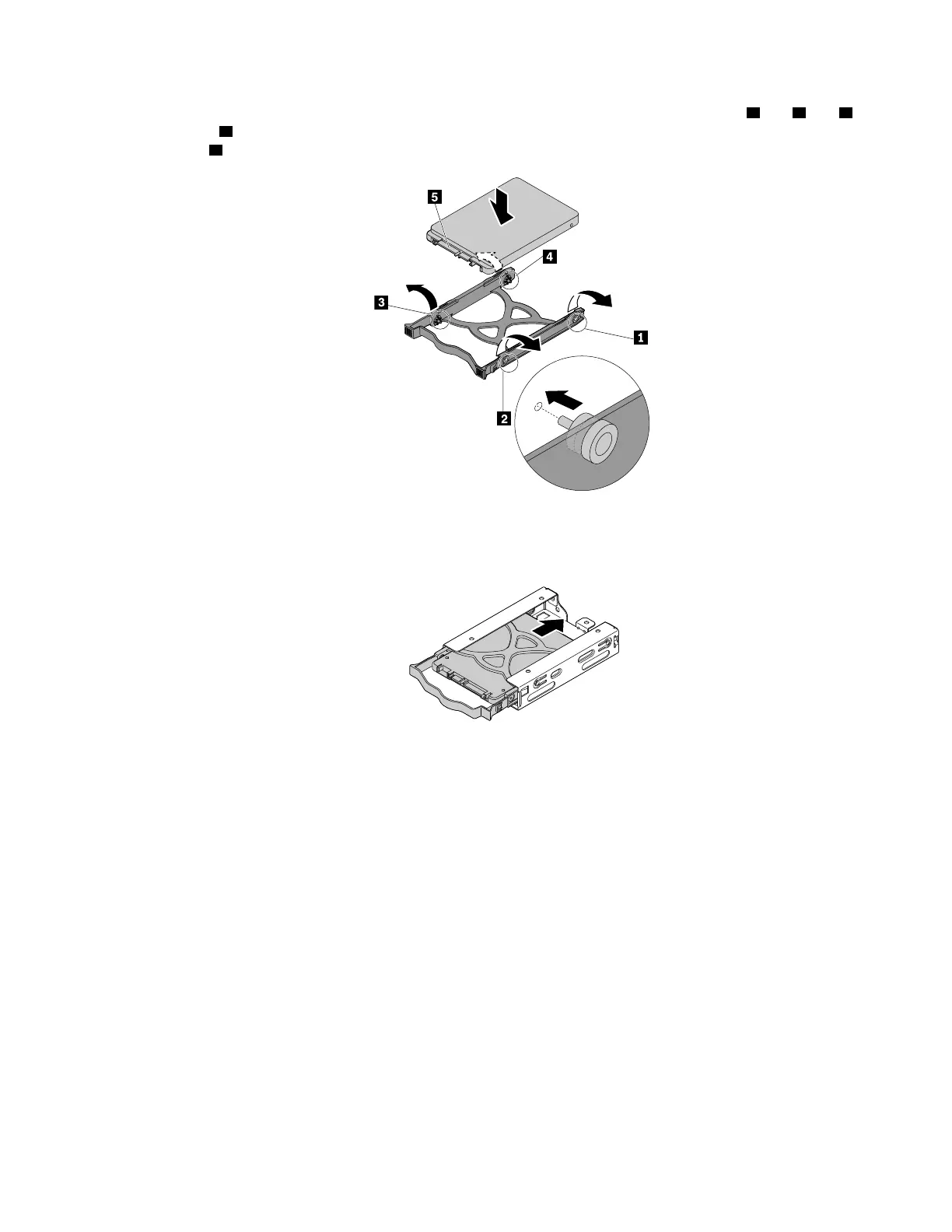

a. To install a new 2.5-inch storage drive into the bracket, flex the bracket and align pin 1 , pin 2 , pin 3 ,
and pin
4 on the bracket with the corresponding holes in the storage drive. Do not touch the circuit
board
5 on the storage drive.
Figure 111. Installing the 2.5-inch storage drive into the bracket
b. Slide the new storage drive into the type-2 storage-drive cage until it snaps into position.
Figure 112. Installing the 2.5-inch storage drive into the type-2 storage-drive cage
Chapter 9. Hardware removal and installation 149
