5.6.4 Parameters for manual positioning
Stop!
Check the parameters for manual positioning. To check the configuration, select small values for
acceleration and speed (e.g. factory setting).
The factory setting of theparameters issufficient formost applications.Enterthesettings asfollows:

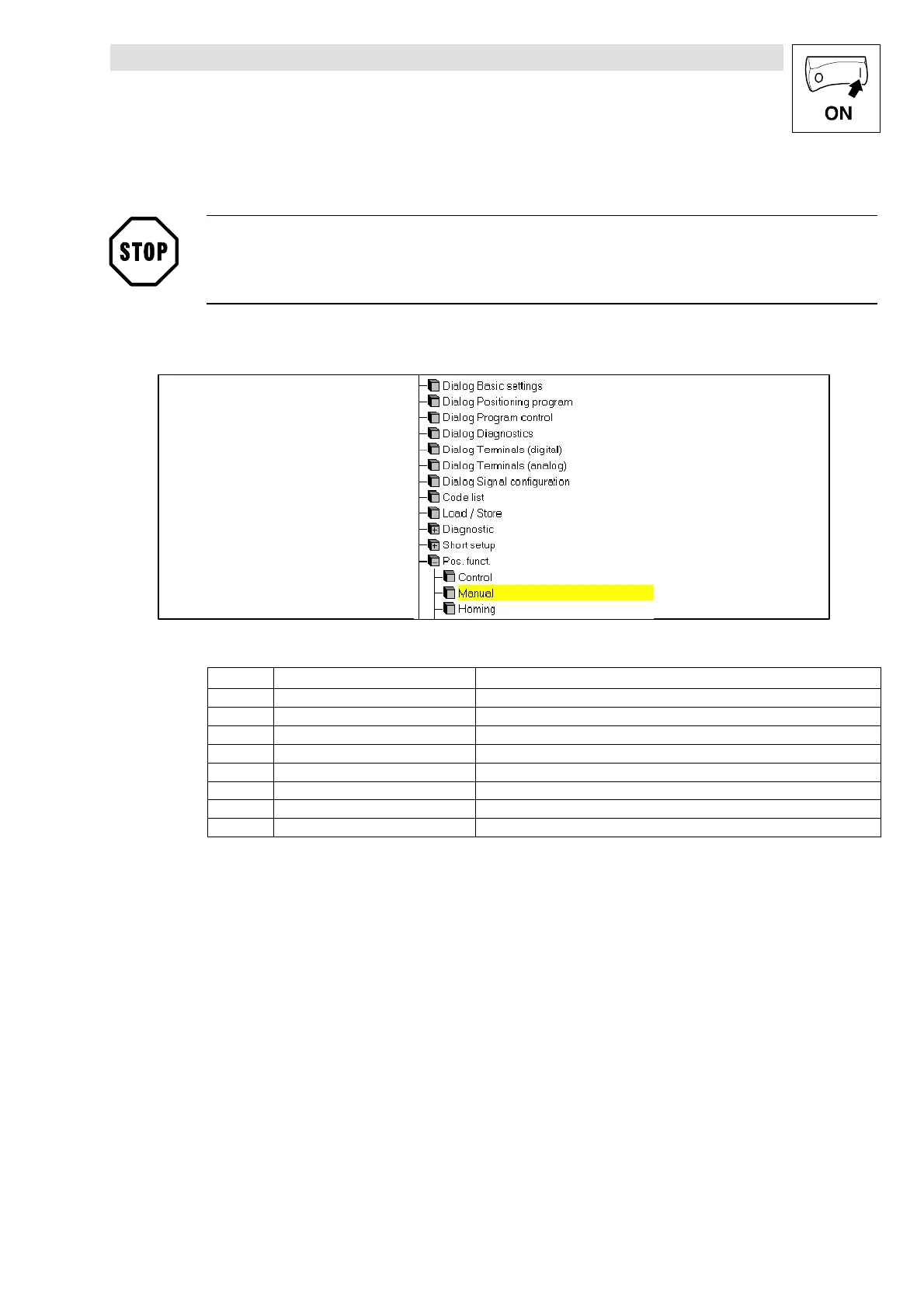

Fig. 5-6 Menu ”Manual positioning” in the parameter menu
Step
Command Function
1 Select ”Basic settings” dialog box.
2 Click on ”Parameter menu” button. Open parameter menu
3 Click on ”Positioning functions” menu. Open ”Positioning functions” menu.
4 Click on ”Manual positioning” menu. Open ”Manual positioning” menu.
5 Click on C1243. Enter new value. Manual positioning speed. Factory setting: 5 % of vmax
6 Click on C1252. Enter new value. Manual positioning acceleration. Factory setting: 10 % of amax
7 Click on C0003. Save settings
8 Click on ”Dialog control” menu. Open ”Control” dialog box.
